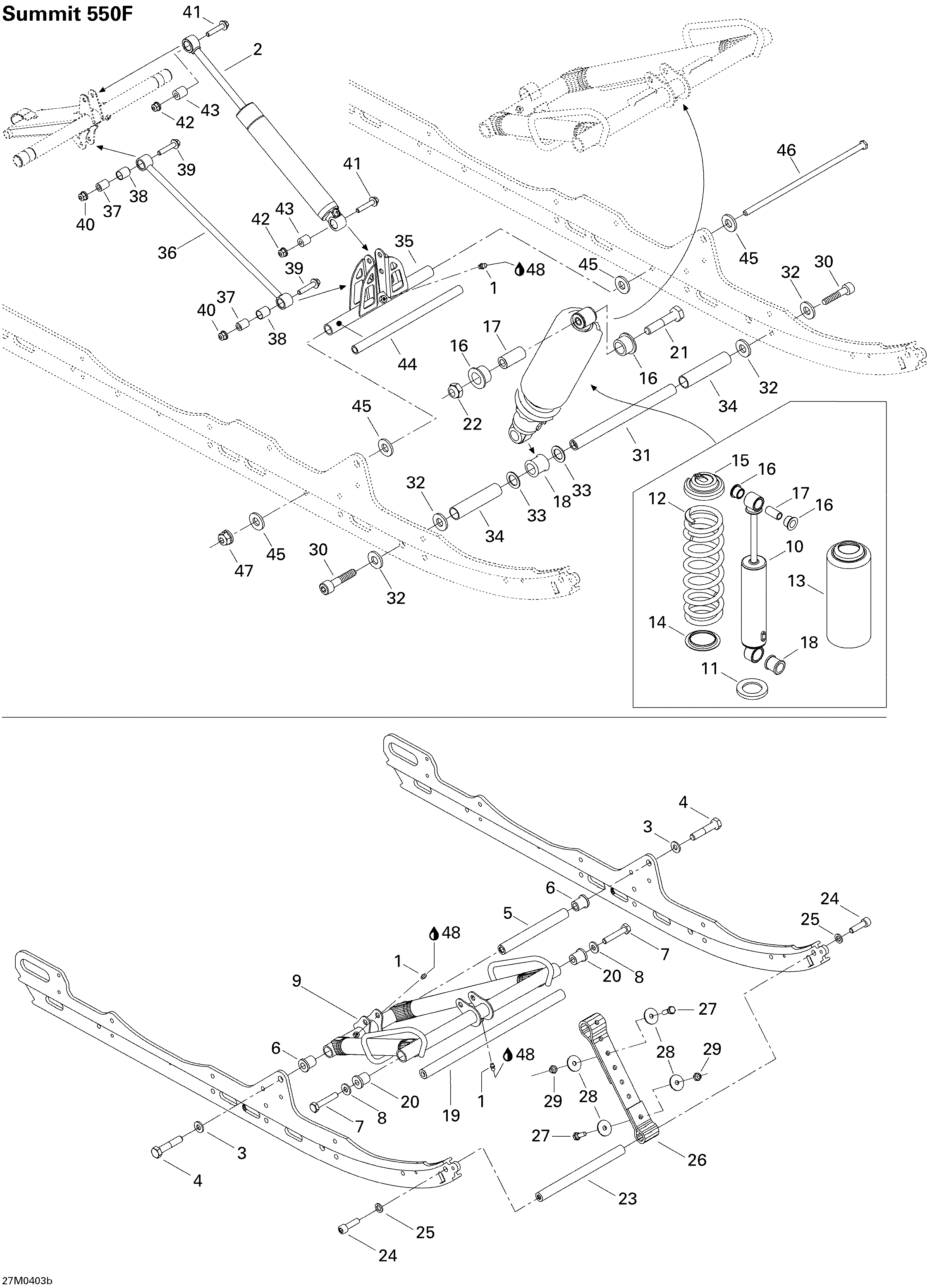

08- Front Arm SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1408200700 Grease FittingGrease Fitting
-
2503189750 Rear ShockRear Shock
-
2503190475 Rear Shock. EUROPE MODELSRear Shock. EUROPE MODELS
-
3503189276 WasherWasher
-
4207226044 Hex Screw M12 X 60 (Scotch Grip)Hex Screw M12 X 60 (Scotch Grip)
-
5503189313 ShaftShaft
-
6503189323 CushionCushion
-
7207205544 Hex Screw M10 X 55 (Scotch Grip)Hex Screw M10 X 55 (Scotch Grip)
-
8732900049 WasherWasher
-
9503189782 Front ArmFront Arm
-
10503189910 Center ShockCenter Shock
-
11505070401 WasherWasher
-
12415070100 SpringSpring
-
12503190546 Spring. EUROPE MODELSSpring. EUROPE MODELS
-
13503188930 ProtectorProtector
-
14503187500 Spring GuideSpring Guide
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19503190387 ShaftShaft
-
20503189324 CushionCushion
-
21207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
22233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23503189562 AxleAxle
-
24205503544 Socket Head Screw M10 X 35 (Scotch Grip)Socket Head Screw M10 X 35 (Scotch Grip)
-
25503189564 WasherWasher
-
26503190563 Stopper Strap (Large)Stopper Strap (Large)
-
27207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
28224081301 Flat WasherFlat Washer
-
29232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
30205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
31503189272 Center Shock ShaftCenter Shock Shaft
-
32503189276 WasherWasher
-
33503189273 WasherWasher
-
34503189274 SpacerSpacer
-
35503189545 Pivot ArmPivot Arm
-
36503189547 Throttle RodThrottle Rod
-
37503189133 Rod AxleRod Axle
-
38503189625 CushionCushion
-
39207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
40250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
42250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
43414936000 CushionCushion
-
44503189156 Pivot Arm AxlePivot Arm Axle
-
45503189157 WasherWasher
-
46732601198 Bolt M8 (Long)Bolt M8 (Long)
-
47250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
48219700417 Synthetic Grease, 400gSynthetic Grease, 400g
