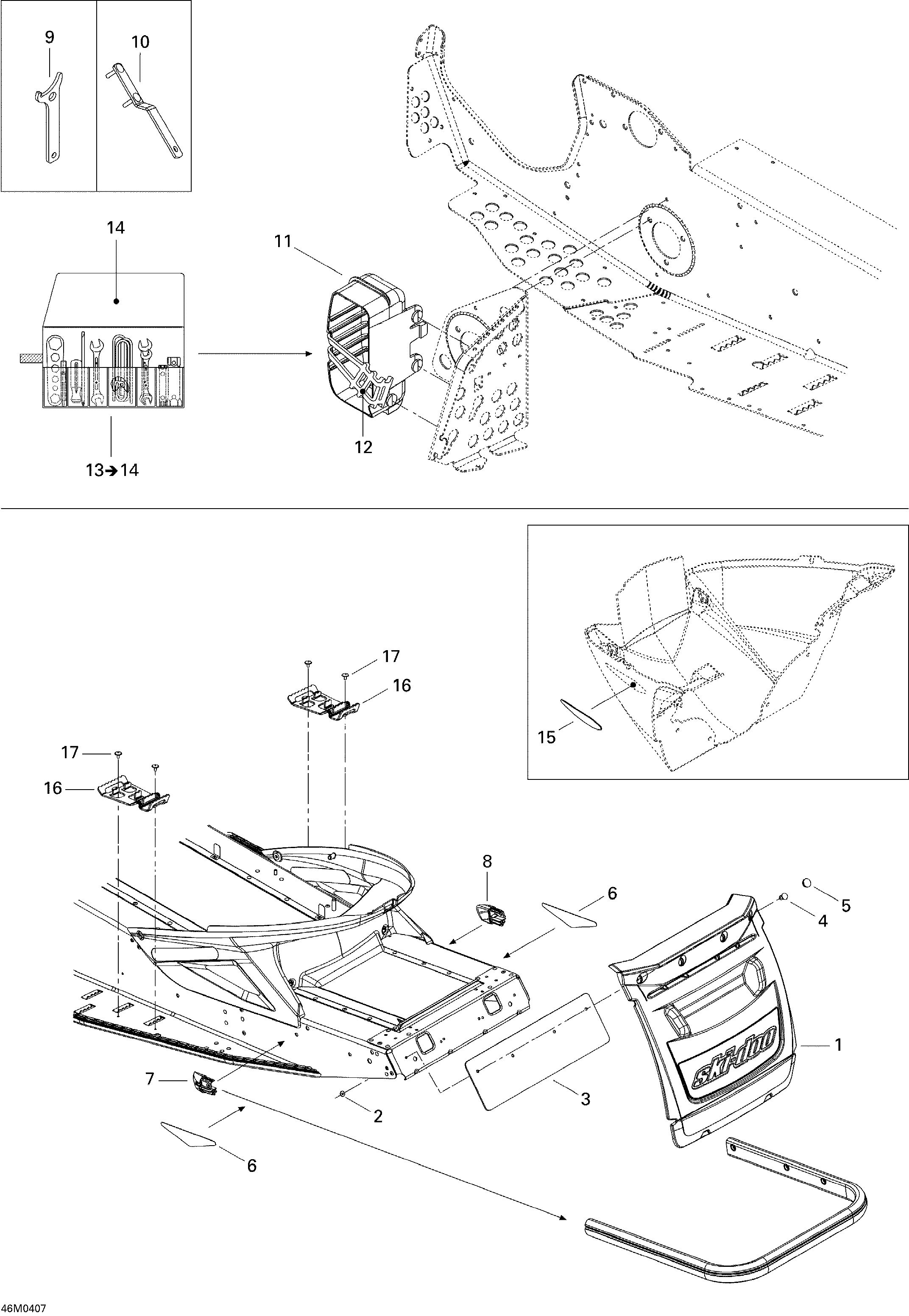

09- Utilities для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1520000396 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000237 Rear Reflector (Red)Rear Reflector (Red)
-
7520000397 LH CapLH Cap
-
8520000398 RH CapRH Cap
-
9529032900 Adjustment WrenchAdjustment Wrench
-
10520000126 Adjustment WrenchAdjustment Wrench
-
11520000322 TrunkTrunk
-
12570069700 LatchLatch
-
13529035596 Tool KitTool Kit
-
14520000047 Tool BagTool Bag
-
15516001336 Front ReflectorFront Reflector
-
16510001435 Footrest. GSX LTD 1+1 / GSX SPORT 1+1Footrest. GSX LTD 1+1 / GSX SPORT 1+1
-
17390406500 Pop Rivet 3/16''. GSX LTD 1+1 / GSX SPORT 1+1Pop Rivet 3/16''. GSX LTD 1+1 / GSX SPORT 1+1
