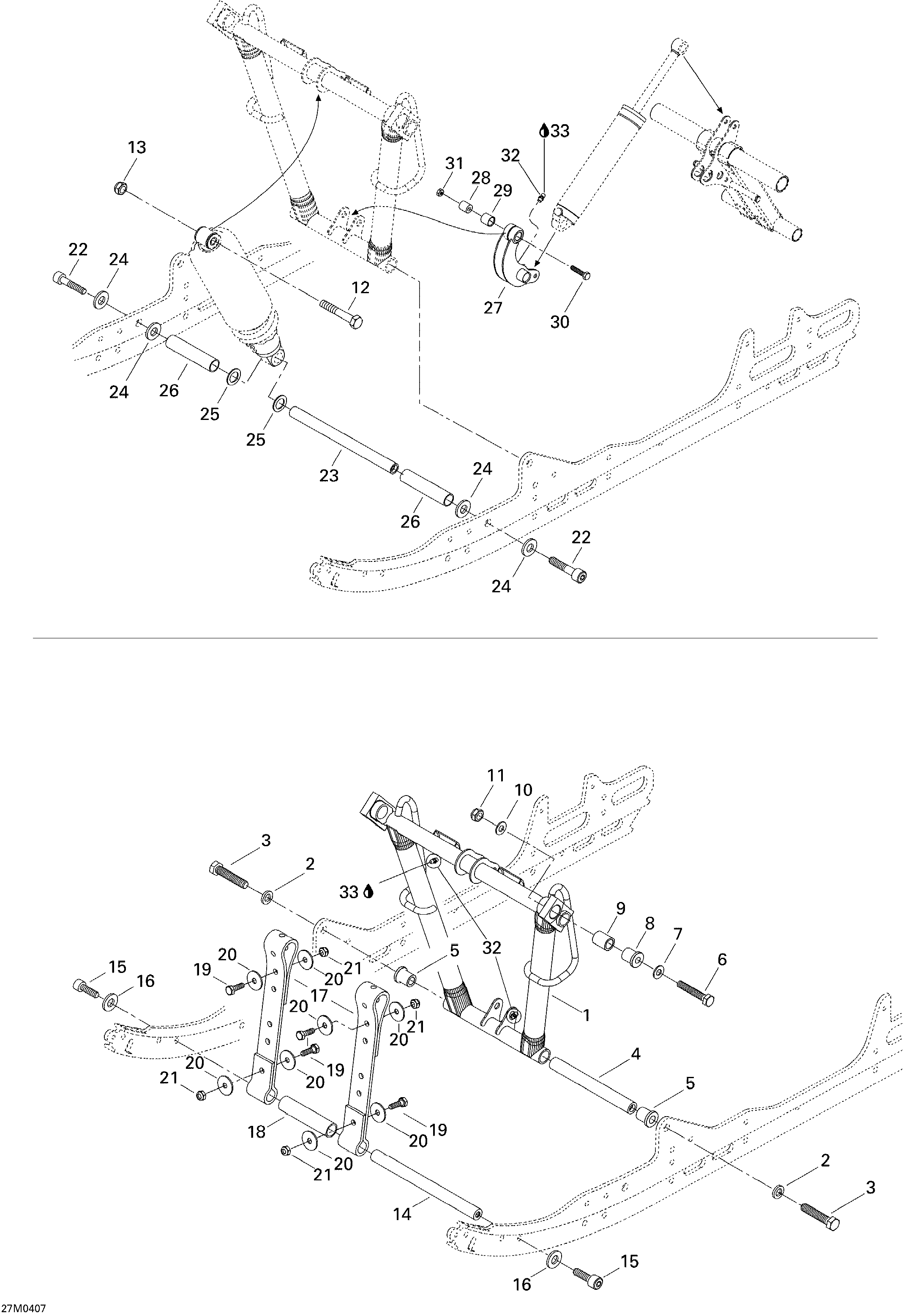

08- Front Arm для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1503190674 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60 (Scotch Grip)Hex Screw M12 X 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503190373 ExtensionExtension
-
9503190474 Extended BushingExtended Bushing
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503189562 AxleAxle
-
15205503544 Socket Head Screw M10 X 35 (Scotch Grip)Socket Head Screw M10 X 35 (Scotch Grip)
-
16503189564 WasherWasher
-
17503190563 Stopper Strap (Large)Stopper Strap (Large)
-
18503189265 SpacerSpacer
-
19207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
20224081301 Flat WasherFlat Washer
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
23503189272 Center Shock ShaftCenter Shock Shaft
-
24503189276 WasherWasher
-
25503189273 WasherWasher
-
26503189274 SpacerSpacer
-
27503189845 RockerRocker
-
28503189388 Rocker AxleRocker Axle
-
29503189626 CushionCushion
-
30207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32408200700 Grease FittingGrease Fitting
-
33219700417 Synthetic Grease, 400gSynthetic Grease, 400g
