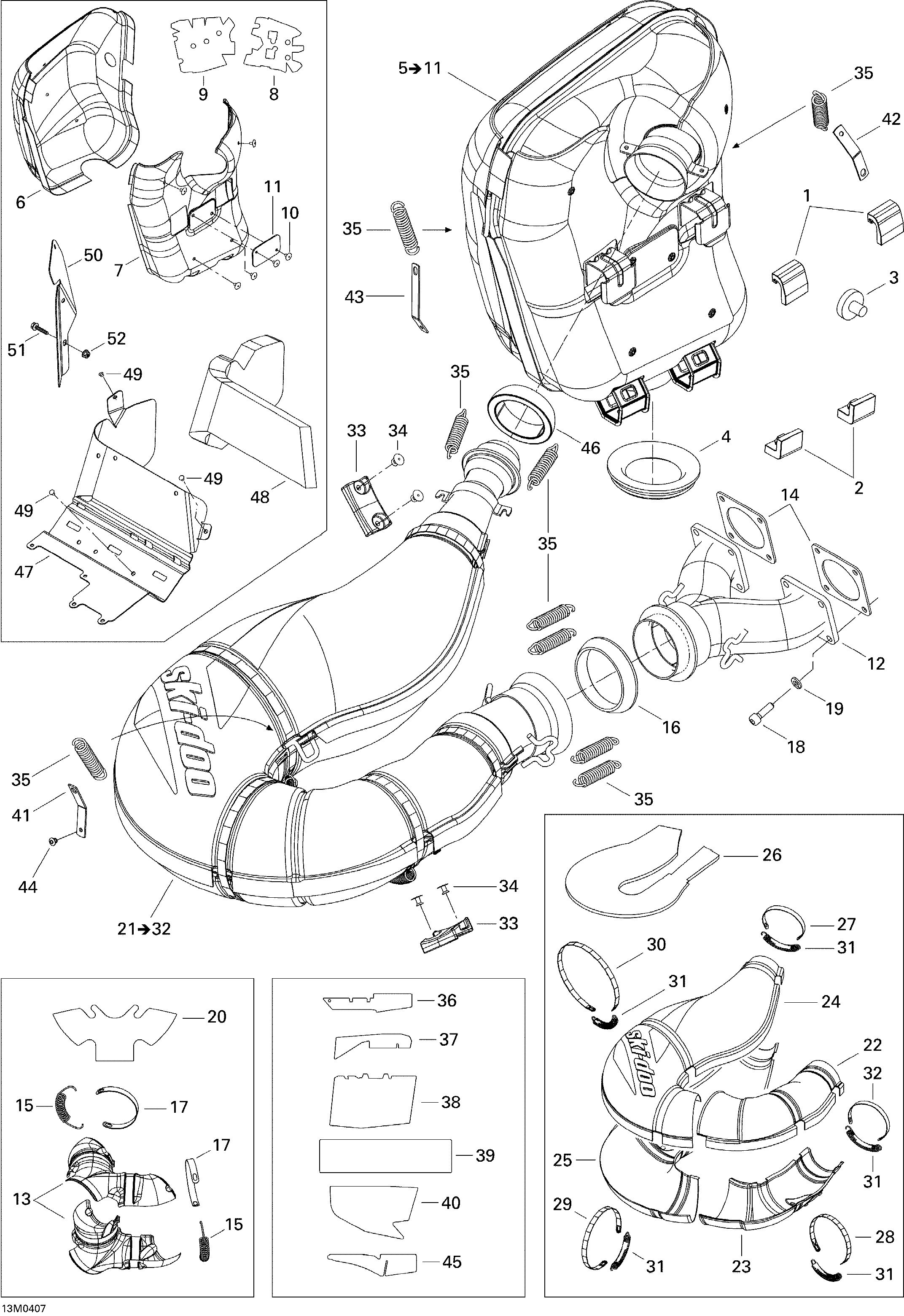

01- Exhaust System для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053373 Lower StopperLower Stopper
-
3514053654 Rubber BumperRubber Bumper
-
4514053394 Exhaust GrommetExhaust Grommet
-
5514053822 Muffler Assy 600Ho Sdi. Includes 5 to 11Muffler Assy 600Ho Sdi. Includes 5 to 11
-
6514053824 RH Heat ShieldRH Heat Shield
-
7514053585 LH Heat ShieldLH Heat Shield
-
8514053590 LH Insulating WoolLH Insulating Wool
-
9514053589 RH Insulating WoolRH Insulating Wool
-
10390910000 Rivet 3/16''Rivet 3/16''
-
11514053429 ReinforcementReinforcement
-
12420673072 ManifoldManifold
-
13514053593 Enveloppe (Exhaust Manifold)Enveloppe (Exhaust Manifold)
-
14420850552 GasketGasket
-
15514053643 SpringSpring
-
16514053487 Exhaust GasketExhaust Gasket
-
17514053603 Retaining StrapRetaining Strap
-
18205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
19234161471 Lock Washer 6 mmLock Washer 6 mm
-
20514053588 Insulating WoolInsulating Wool
-
21514053735 Tuned Pipe Ass'Y (600 Ho). Includes 21 to 32Tuned Pipe Ass'Y (600 Ho). Includes 21 to 32
-
22514053609 Upper Front Half EnveloppeUpper Front Half Enveloppe
-
23514053610 Lower Front Haft EnveloppeLower Front Haft Enveloppe
-
24514053612 Upper Rear Half EnveloppeUpper Rear Half Enveloppe
-
25514053613 Lower Rear Half EnveloppeLower Rear Half Enveloppe
-
26514053584 Insulating WoolInsulating Wool
-
27514053437 Retaining StrapRetaining Strap
-
28514053500 Retaining StrapRetaining Strap
-
29514053534 Retaining StrapRetaining Strap
-
30514053535 Retaining StrapRetaining Strap
-
31514053643 SpringSpring
-
32514053536 Retaining StrapRetaining Strap
-
33514053352 BumperBumper
-
34293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
35415107100 SpringSpring
-
36514053560 Reflection SheetReflection Sheet
-
37514053622 Reflection SheetReflection Sheet
-
38514053561 Reflection SheetReflection Sheet
-
39514053392 Reflective SheetReflective Sheet
-
40514053562 Reflection SheetReflection Sheet
-
41514049700 Spring BracketSpring Bracket
-
42514053725 Spring BracketSpring Bracket
-
43514053393 Spring BracketSpring Bracket
-
44390402200 Rivet 3/16''Rivet 3/16''
-
45514053673 Reflection SheetReflection Sheet
-
46514053812 Exhaust GasketExhaust Gasket
-
47514053874 Acoustic PlateAcoustic Plate
-
48514053875 Acoustic FoamAcoustic Foam
-
49390402200 Rivet 3/16''Rivet 3/16''
-
50514053876 Heat DeflectorHeat Deflector
-
51207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
52232561414 Elastic Stop Nut M6Elastic Stop Nut M6
