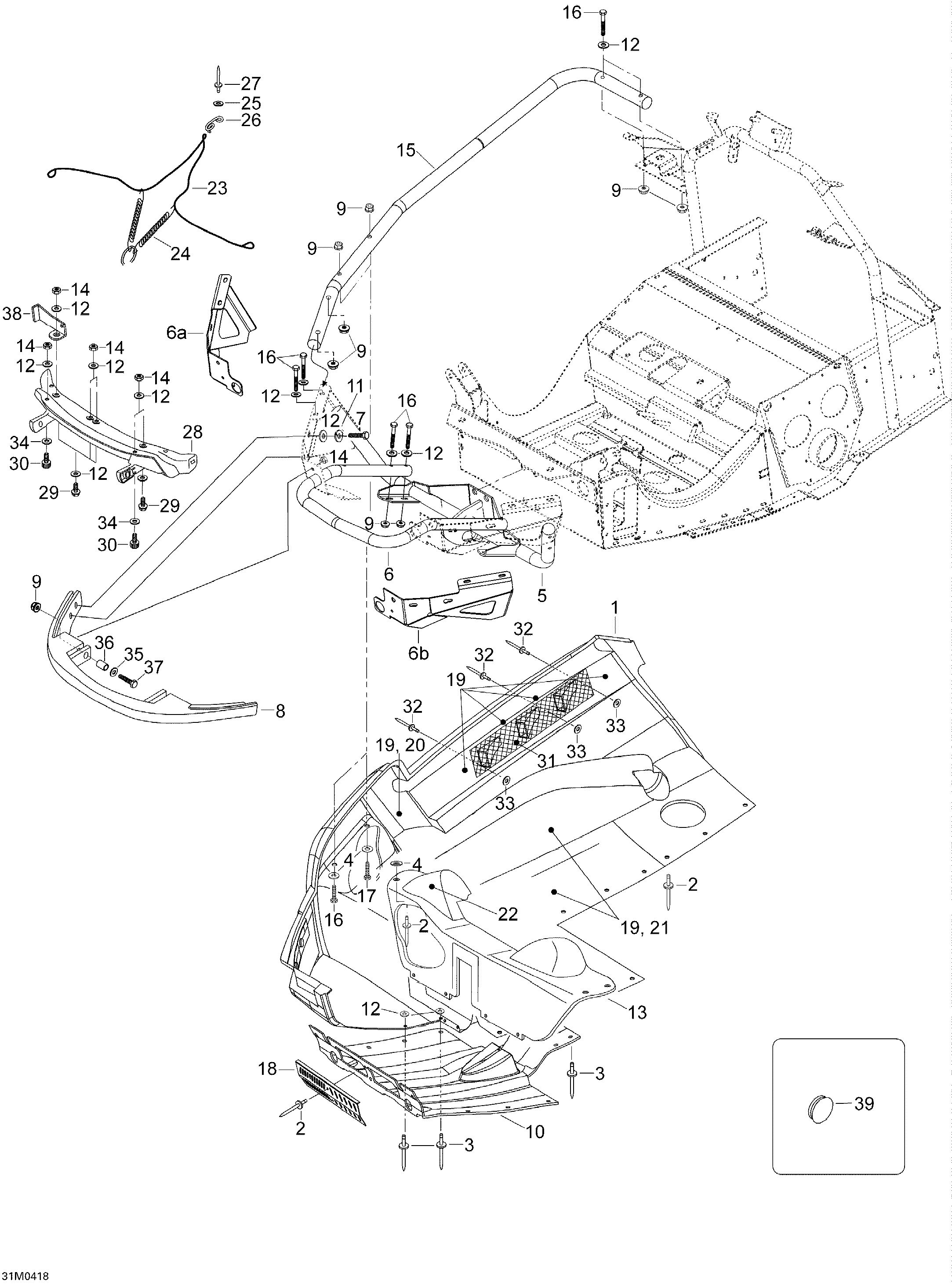

09- Bottom Pan для BRP Ski-Doo Expedition 4-TEC - 2004

-
№АртикулНазвание
-
1605149806 RH Bottom PanRH Bottom Pan
-
1605149805 LH Boyyom PanLH Boyyom Pan
-
2M36037 RivetRivet
-
3M36072 RivetRivet
-
4M20008 Washer 5 mmWasher 5 mm
-
5605350850 Bumper SupportBumper Support
-
6605351509 Bumper FrontBumper Front
-
6a605250848 RH Bumper SupportRH Bumper Support
-
6b605250847 LH Bumper SupportLH Bumper Support
-
7207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
8502006719 Bumper (Black)Bumper (Black)
-
9M33200 Nut M6Nut M6
-
10605149807 Center Bottom PanCenter Bottom Pan
-
11234161471 Lock Washer 6 mmLock Washer 6 mm
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13605250708 Shock CoverShock Cover
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15605150849 Side BumperSide Bumper
-
16207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
17M40084 Screw M6 X 45Screw M6 X 45
-
18605251582 Front GrillFront Grill
-
19M44001 Sheet ReflectionSheet Reflection
-
20605351212 Heat Protection TapHeat Protection Tap
-
21605351213 Heat Protection TapHeat Protection Tap
-
22605351214 Heat Protection TapHeat Protection Tap
-
23605351372 Retainer CableRetainer Cable
-
24M5442675 SpringSpring
-
25234051410 Flat WasherFlat Washer
-
26M5442870 Cable KeeperCable Keeper
-
27M36005 RivetRivet
-
28517302631 HingeHinge
-
29207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
30M40381 Screw M6X20Screw M6X20
-
31605351546 GrillGrill
-
32M36891 RivetRivet
-
33M20037 WasherWasher
-
34M20117 WasherWasher
-
35234061410 Flat Washer 6 mmFlat Washer 6 mm
-
36517302179 BushingBushing
-
37M40003 Hex ScrewHex Screw
-
38605351464 RH Hood SupportRH Hood Support
-
38605351463 LH Hood SupportLH Hood Support
-
39570277300 Bottom Pan CapBottom Pan Cap
