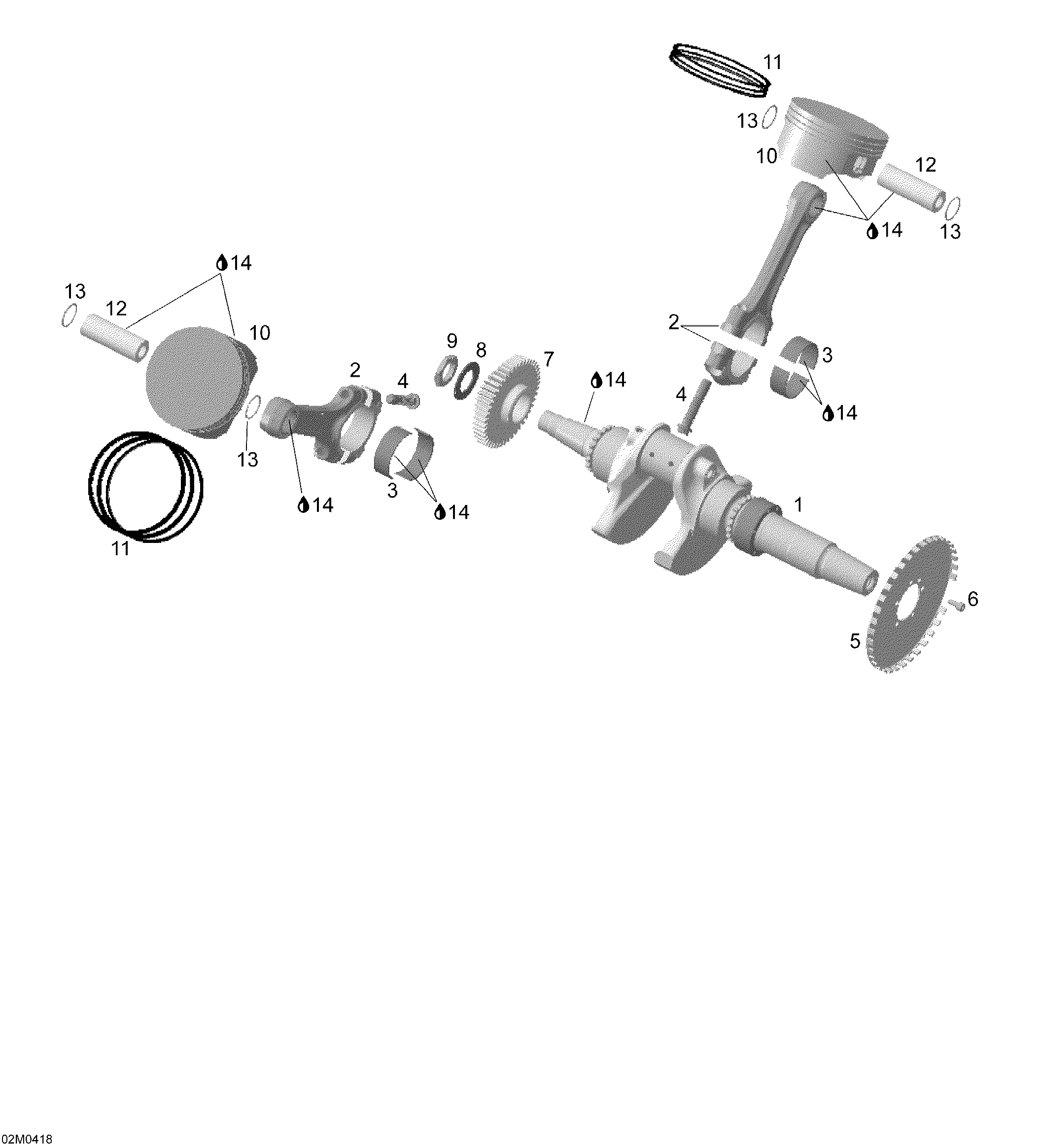

01- Crankshaft And Piston для BRP Ski-Doo Expedition 4-TEC - 2004

  • №
    Артикул
    Название
  • 1
    420889441 Crankshaft Ass'Y. Includes Items 1 to 4
    Crankshaft Ass'Y. Includes Items 1 to 4
  • 2
    420917546 Connecting Rod Ass'Y
    Connecting Rod Ass'Y
  • 3
    420933520 Half-Bearing
    Half-Bearing
  • 4
    420640990 Connecting Rod M10 X 1
    Connecting Rod M10 X 1
  • 5
    420966850 Trigger Wheel
    Trigger Wheel
  • 6
    420640541 Socket Head Screw M5 X 12
    Socket Head Screw M5 X 12
  • 7
    420834446 Drive Gear 45 T
    Drive Gear 45 T
  • 8
    420245860 Spring Washer
    Spring Washer
  • 9
    420242871 Hex Nut M22 X 1.5
    Hex Nut M22 X 1.5
  • 10
    420296565 Piston Ass'Y 99.96 mm (Standard)
    Piston Ass'Y 99.96 mm (Standard)
  • 11
    420888864 Piston Set Ring (Standard)
    Piston Set Ring (Standard)
  • 12
    420216250 Piston Pin
    Piston Pin
  • 13
    420845580 Monohook Circlip
    Monohook Circlip
  • 14
    293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 Liter
    Engine Oil 4 Strokes, 0W40, 12 X 1 Liter
