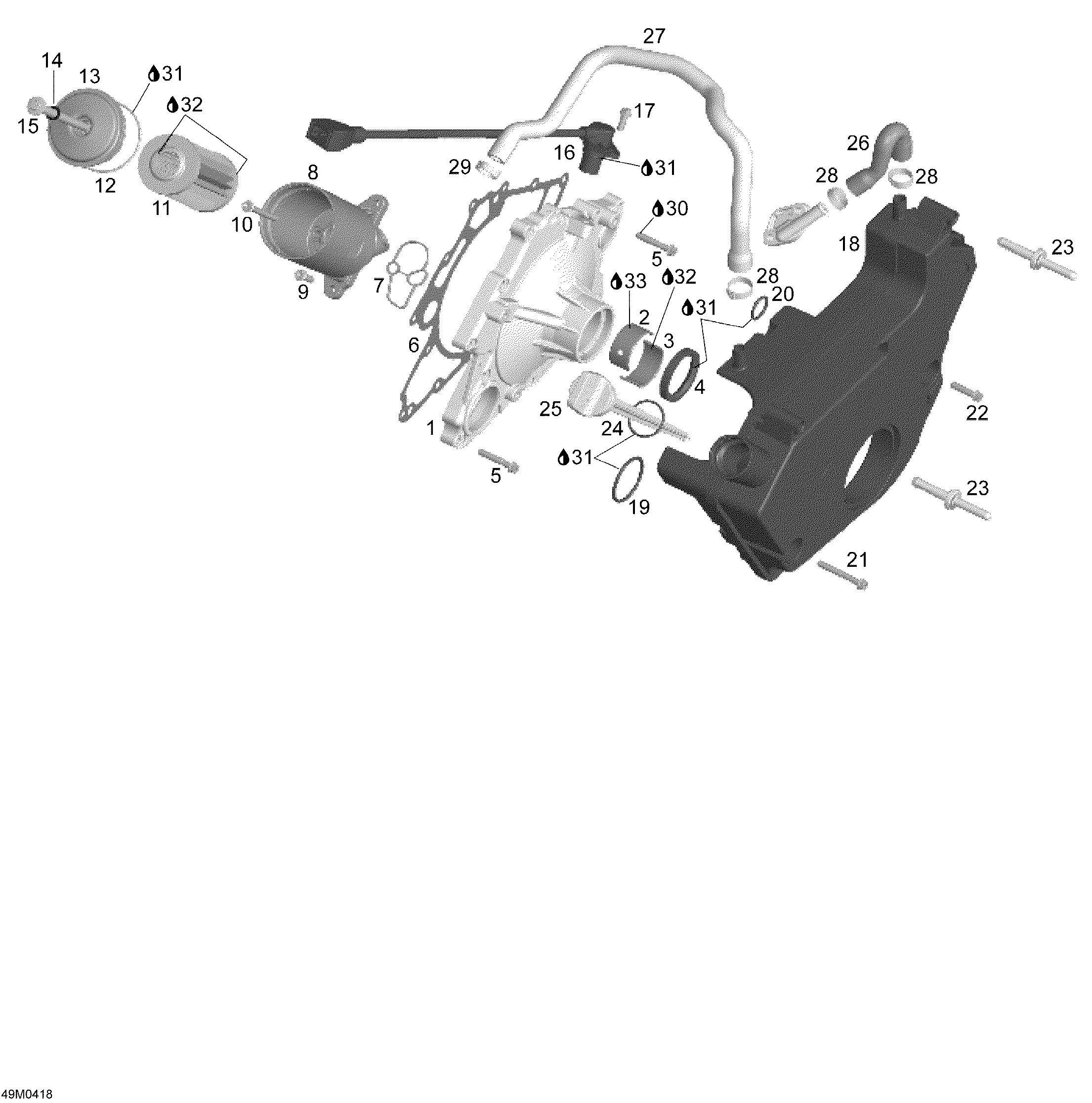

02- Clutch Cover and Oil Tank для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1420811671 Clutch Cover Ass'Y. Includes Items 1 to 3Clutch Cover Ass'Y. Includes Items 1 to 3
-
2420933540 Plain BearingPlain Bearing
-
3420933545 Plain BearingPlain Bearing
-
4420931155 Oil SealOil Seal
-
5420440272 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
6420950610 GasketGasket
-
7420950990 GasketGasket
-
8420811903 Oil Filter Housing Ass'YOil Filter Housing Ass'Y
-
9420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
11420956741 Oil FilterOil Filter
-
12420230920 O-RingO-Ring
-
13420610326 Oil Filter CoverOil Filter Cover
-
14420950860 O-RingO-Ring
-
15420641105 Hex Screw M8 X 140.5Hex Screw M8 X 140.5
-
16420265920 Crank Position TriggerCrank Position Trigger
-
17420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
18420956700 Oil Tank Ass'Y. Includes Items 18 to 20Oil Tank Ass'Y. Includes Items 18 to 20
-
19420631400 O-RingO-Ring
-
20420631410 O-RingO-Ring
-
21420440322 Hex Flanged Screw M6 X 45Hex Flanged Screw M6 X 45
-
22420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
23420660860 Fixation BoltFixation Bolt
-
24420430590 O-RingO-Ring
-
25420956890 Oil DipstickOil Dipstick
-
26420960740 HoseHose
-
27420960801 HoseHose
-
28420853143 ClampClamp
-
29420853313 ClampClamp
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293550030 Grease, Super LubeGrease, Super Lube
-
32293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
-
33420899271 Petamo Grease Ghy133N, 400 GPetamo Grease Ghy133N, 400 G
