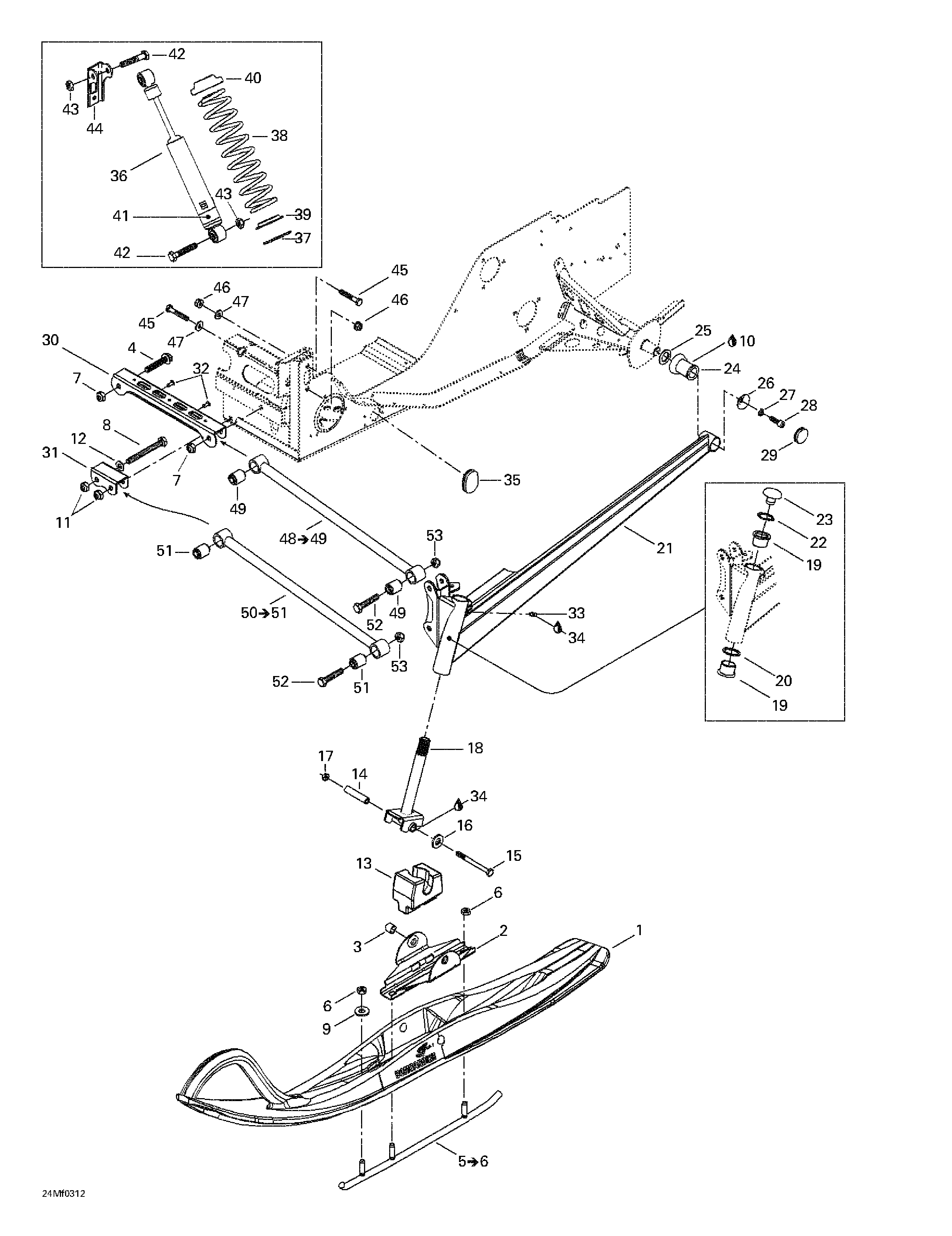

07- Front Suspension And Ski для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1505070975 Ski LinerSki Liner
-
2505070980 Bridge Ass'yBridge Ass'y
-
3505071033 BushingBushing
-
4207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
5860507900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233281414 Flanged Elastic Stop Nut M8Flanged Elastic Stop Nut M8
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
9234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12234001410 Flat Washer 10 mmFlat Washer 10 mm
-
13505070978 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15230003044 Hex. Screw M10 x 130Hex. Screw M10 x 130
-
16234001410 Washer M10Washer M10
-
17233201414 Elastic Locking Nut M10Elastic Locking Nut M10
-
18506151234 Ski LegSki Leg
-
19505070003 CushionCushion
-
20505070004 WasherWasher
-
21505070645 R.H. Swing ArmR.H. Swing Arm
-
505070646 L.H. Swing ArmL.H. Swing Arm
-
22371910400 CirclipCirclip
-
23572091300 CapCap
-
24570062200 DamperDamper
-
25503146700 WasherWasher
-
26506115800 CupCup
-
27234181401 Lock Washer 8 mmLock Washer 8 mm
-
28205582544 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
29572045900 CapCap
-
30505070010 Upper Arm BracketUpper Arm Bracket
-
31505070011 Lower Arm BracketLower Arm Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33408200700 Grease FittingGrease Fitting
-
34219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
35414916600 Plug (Nylon)Plug (Nylon)
-
36505070695 Front ShockFront Shock
-
37505070401 WasherWasher
-
38505070393 SpringSpring
-
39503187500 Spring GuideSpring Guide
-
40503140600 Spring StopperSpring Stopper
-
42207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
43233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
44518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
45207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
46233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47506151245 WasherWasher
-
48505070580 Upper Arm Ass'y. Includes 48 - 49.Upper Arm Ass'y. Includes 48 - 49.
-
49505070025 BushingBushing
-
50505070402 Lower Arm Ass'y. Includes 50 - 51.Lower Arm Ass'y. Includes 50 - 51.
-
51505070025 BushingBushing
-
52207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
53233601416 Elastic Locking Nut M10Elastic Locking Nut M10
