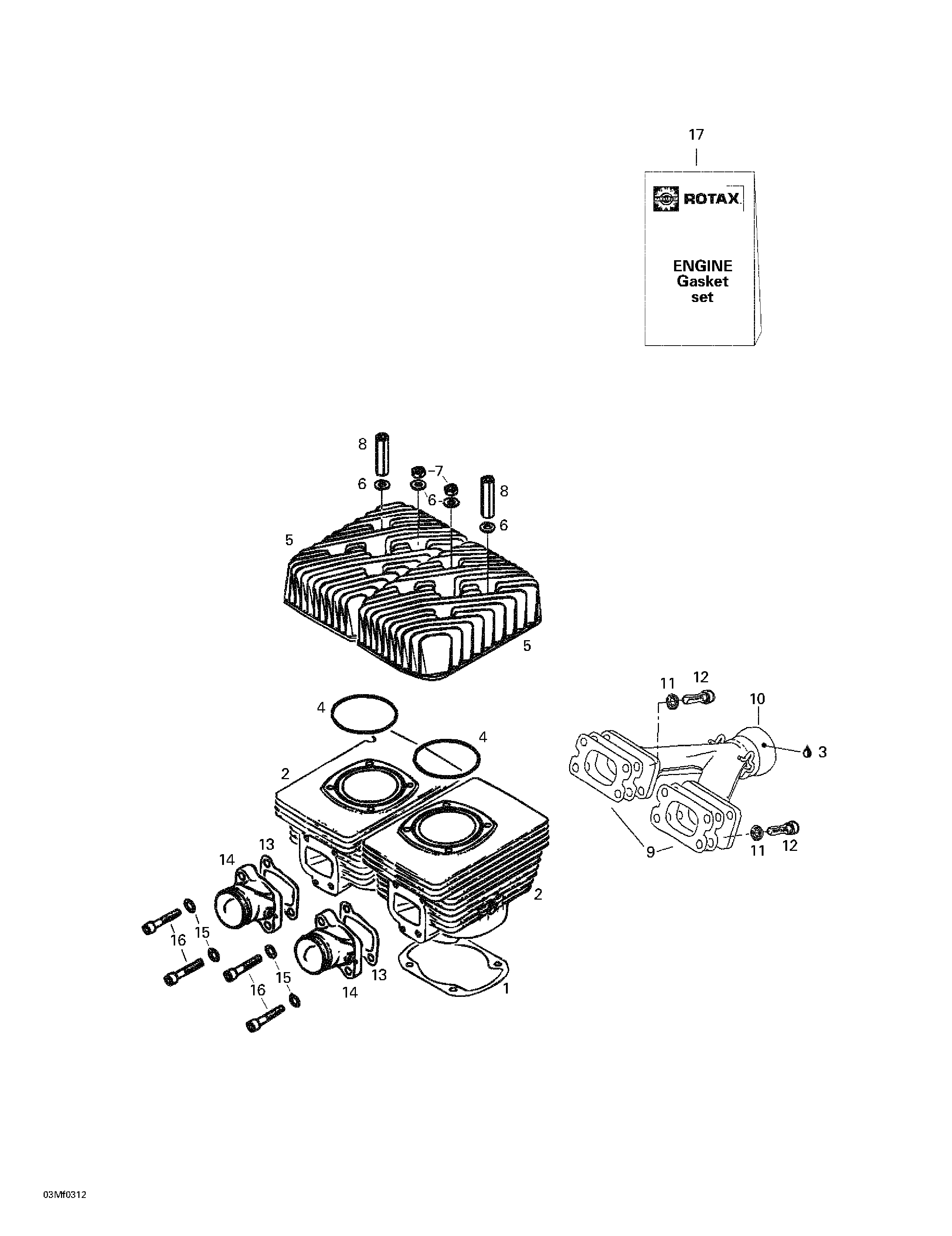

01- Cylinder, Intake, Exhaust Manifold для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1420831858 Gasket 0.4 mmGasket 0.4 mm
-
2420923417 Cylinder with SleeveCylinder with Sleeve
-
3293800090 Sealant Loctite, 80 mlSealant Loctite, 80 ml
-
4293300026 O-RingO-Ring
-
5420923590 Cylinder HeadCylinder Head
-
6420250311 Washer 8.4 mmWasher 8.4 mm
-
7232081414 Nut M8Nut M8
-
8420842203 Distance Nut M8 x 42Distance Nut M8 x 42
-
9420831849 Gasket 1.0 mmGasket 1.0 mm
-
10420673060 Exhaust ManifoldExhaust Manifold
-
11234181401 Lock Washer 8 mmLock Washer 8 mm
-
12205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
13420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
14420867408 Intake Socket Ass'yIntake Socket Ass'y
-
15420945752 Lock Washer 8 mmLock Washer 8 mm
-
16420840681 Socket Head ScrewSocket Head Screw
-
17420994238 Engine Gasket SetEngine Gasket Set
