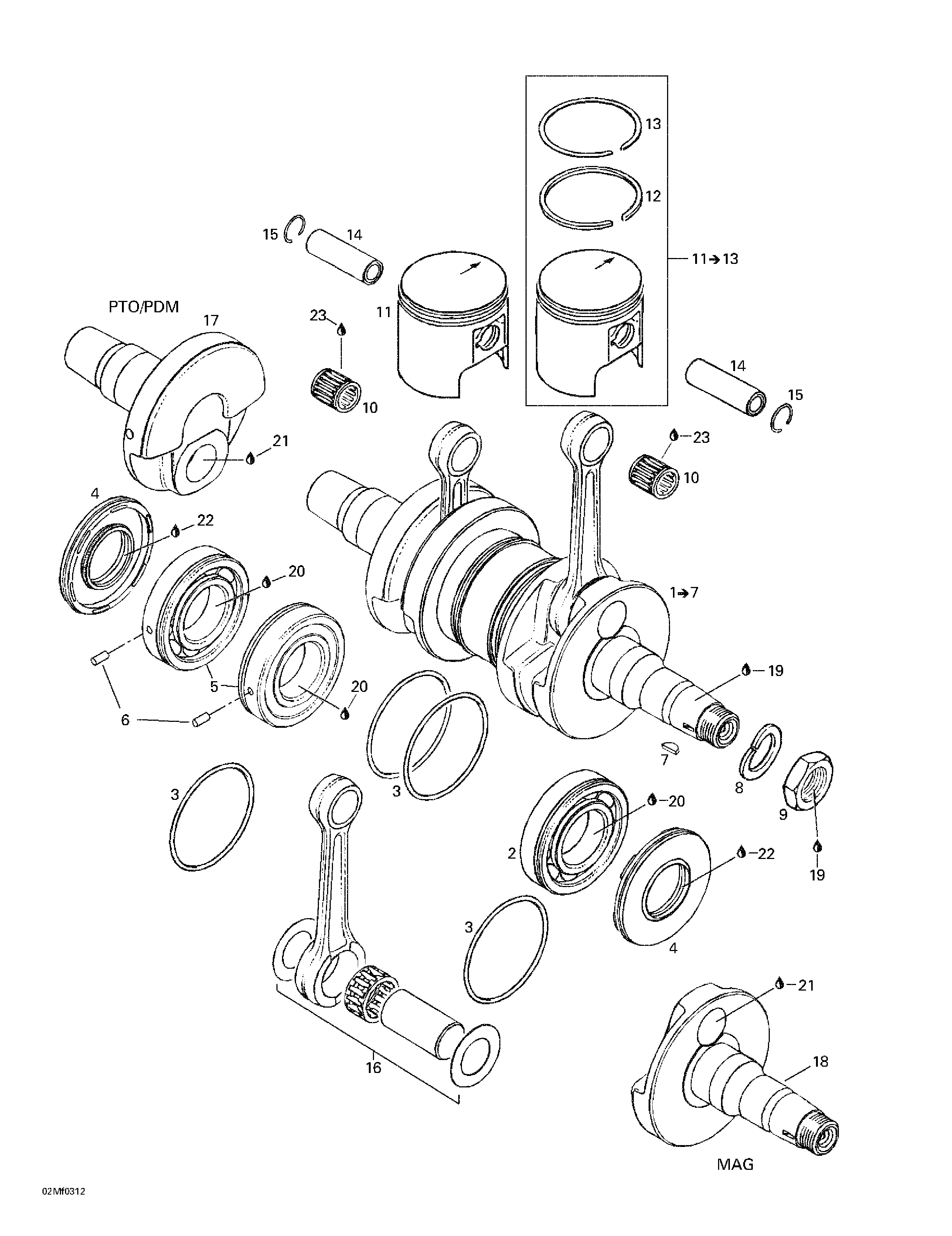

01- Crankshaft And Pistons для BRP Ski-Doo Skandic 500F - 2003

№

Артикул

Название
1

420888391 Crankshaft Ass'y. Includes 1 - 7.

Crankshaft Ass'y. Includes 1 - 7.

102 810 ₽
2

420832570 Ball Bearing 6207

Ball Bearing 6207

4 050 ₽
3

293300022 O-Ring 64 mm

O-Ring 64 mm

9 030 ₽
4

290831952 Oil Seal

Oil Seal

0 ₽
5

420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6.

Ball Bearing 6207 Ass'y. Includes 5 - 6.

15 440 ₽
6

420929972 Dowel Pin

Dowel Pin

280 ₽
7

420246055 Woodruff Key

Woodruff Key

230 ₽
8

420945759 Lock Washer 22 mm

Lock Washer 22 mm

660 ₽
9

420842230 Hex. Nut M 22

Hex. Nut M 22

0 ₽
10

420832320 Needle Bearing

Needle Bearing

10 710 ₽
11

420888175 Piston Ass'y 71.92 mm. Includes 11 - 13.

Piston Ass'y 71.92 mm. Includes 11 - 13.

0 ₽
420888176 Oversize Piston Ass'y 72.17mm

Oversize Piston Ass'y 72.17mm

0 ₽
420888177 Oversize Piston Ass'y 72.42 mm

Oversize Piston Ass'y 72.42 mm

0 ₽
12

420915850 Rectangular Ring 72 mm

Rectangular Ring 72 mm

2 370 ₽
420915851 Rectangular Ring 72.25 mm

Rectangular Ring 72.25 mm

3 280 ₽
420915852 Rectangular Ring 72.5 mm

Rectangular Ring 72.5 mm

3 600 ₽
13

420815200 Semi-Trapez Ring 72.0 mm

Semi-Trapez Ring 72.0 mm

4 830 ₽
420815201 Semi-Trapez Ring 72.25 mm

Semi-Trapez Ring 72.25 mm

4 670 ₽
420815202 Semi-Trapez Ring 72.5 mm

Semi-Trapez Ring 72.5 mm

5 270 ₽
14

420916186 Piston Pin

Piston Pin

9 000 ₽
15

420945735 Circlip

Circlip

1 610 ₽
16

420996394 Rod Repair Kit

Rod Repair Kit

0 ₽
17

420818244 Crankshaft half PTO

Crankshaft half PTO

20 390 ₽
18

420819020 Crankshaft half MAG

Crankshaft half MAG

23 810 ₽
19

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
20

293800070 Loctite 767, Antiseize Lubricant, 454g

Loctite 767, Antiseize Lubricant, 454g

3 130 ₽
21

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
22

413707000 Molykote 111

Molykote 111

7 550 ₽
23

413802900 Injection Oil (12 x 1 Liter)

Injection Oil (12 x 1 Liter)

1 050 ₽
