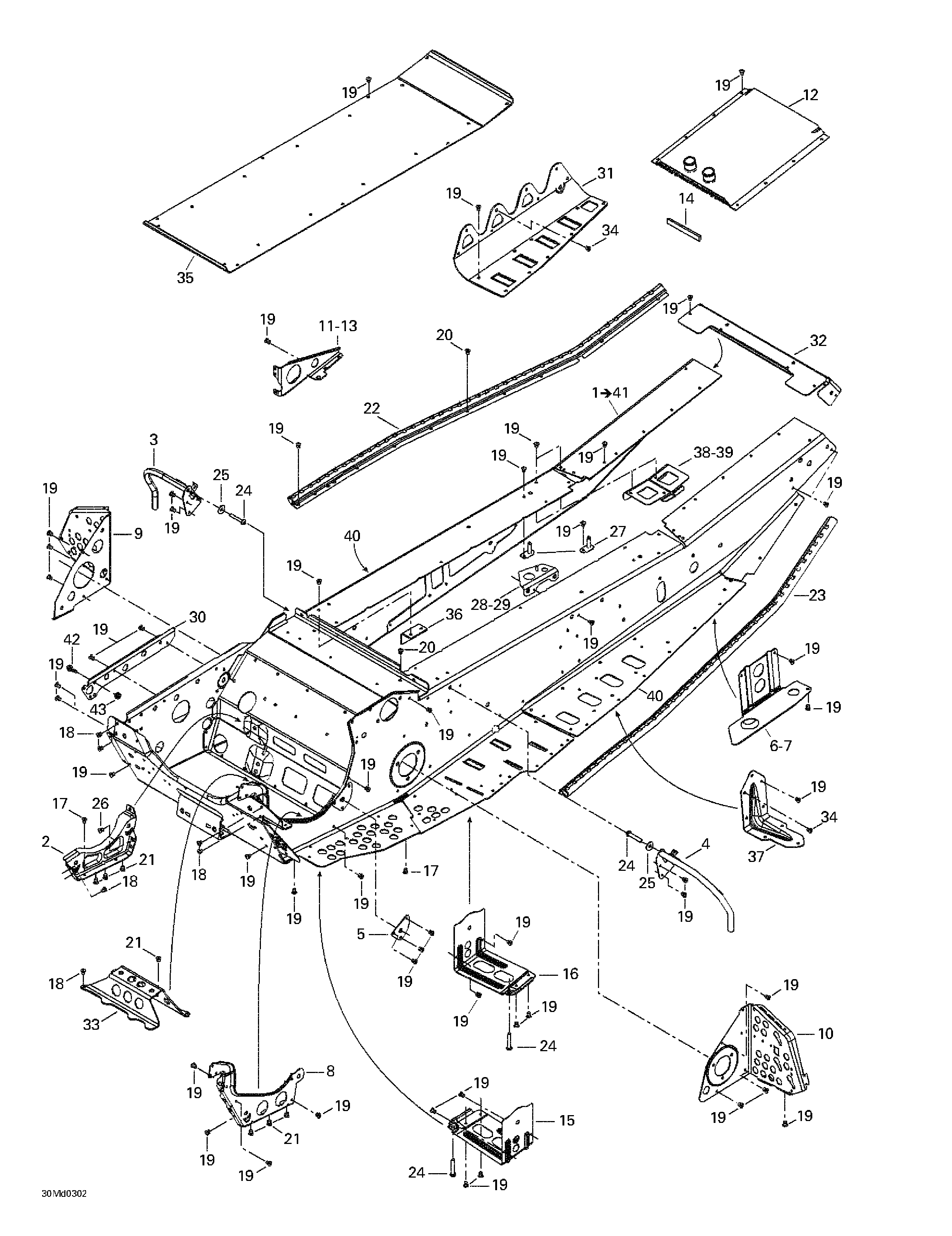

09- Frame для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1415128559 Frame ass'y. Includes 1 - 41.Frame ass'y. Includes 1 - 41.
-
2518323346 Engine supportEngine support
-
3518322180 R.H. toe hold supportR.H. toe hold support
-
4518322181 L.H. toe hold supportL.H. toe hold support
-
5518323507 Outer reinforcementOuter reinforcement
-
6518322666 R.H. slide bracketR.H. slide bracket
-
7518322667 L.H. slide bracketL.H. slide bracket
-
8518323241 Inner reinforcementInner reinforcement
-
9518323244 R.H. footrest reinforcementR.H. footrest reinforcement
-
10518323245 L.H. footrest reinforcementL.H. footrest reinforcement
-
11518323187 BracketBracket
-
12518323329 Rear radiatorRear radiator
-
13518323188 BracketBracket
-
14293200003 GasketGasket
-
15518323369 R.H. footrestR.H. footrest
-
16518323370 L.H. footrestL.H. footrest
-
17390909200 Rivet AvexRivet Avex
-
18390909100 Rivet AvexRivet Avex
-
19390402200 Pop rivet 3/16''Pop rivet 3/16''
-
20390402400 Pop rivet 3/16''Pop rivet 3/16''
-
21390910300 Rivet HenrobRivet Henrob
-
22518323310 R.H. rollerR.H. roller
-
23518323311 L.H. roller (SPORT)L.H. roller (SPORT)
-
25234082410 Flat Washer 8 mmFlat Washer 8 mm
-
26293150096 Rivet Hemlock 1/4''Rivet Hemlock 1/4''
-
27518322791 Tank bracketTank bracket
-
28518323336 R.H. frame forming reinforcementR.H. frame forming reinforcement
-
29518323337 L.H. frame forming reinforcementL.H. frame forming reinforcement
-
30518323566 StiffenerStiffener
-
31518323334 R.H. tunnel linerR.H. tunnel liner
-
518323335 L.H. tunnel linerL.H. tunnel liner
-
32518322938 Rear CapRear Cap
-
33518322939 Cross-LinkCross-Link
-
34390402300 Pop-Rivets 3/16''Pop-Rivets 3/16''
-
35518323323 Center PlateCenter Plate
-
36518323185 ReinforcementReinforcement
-
37518323578 Center ReinforcementCenter Reinforcement
-
38518322959 R.H. Tunnel ReinforcementR.H. Tunnel Reinforcement
-
39518322960 L.H. Tunnel ReinforcementL.H. Tunnel Reinforcement
-
40518323332 R.H. FootrestR.H. Footrest
-
41518323333 L.H. FootrestL.H. Footrest
-
42207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
43233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
