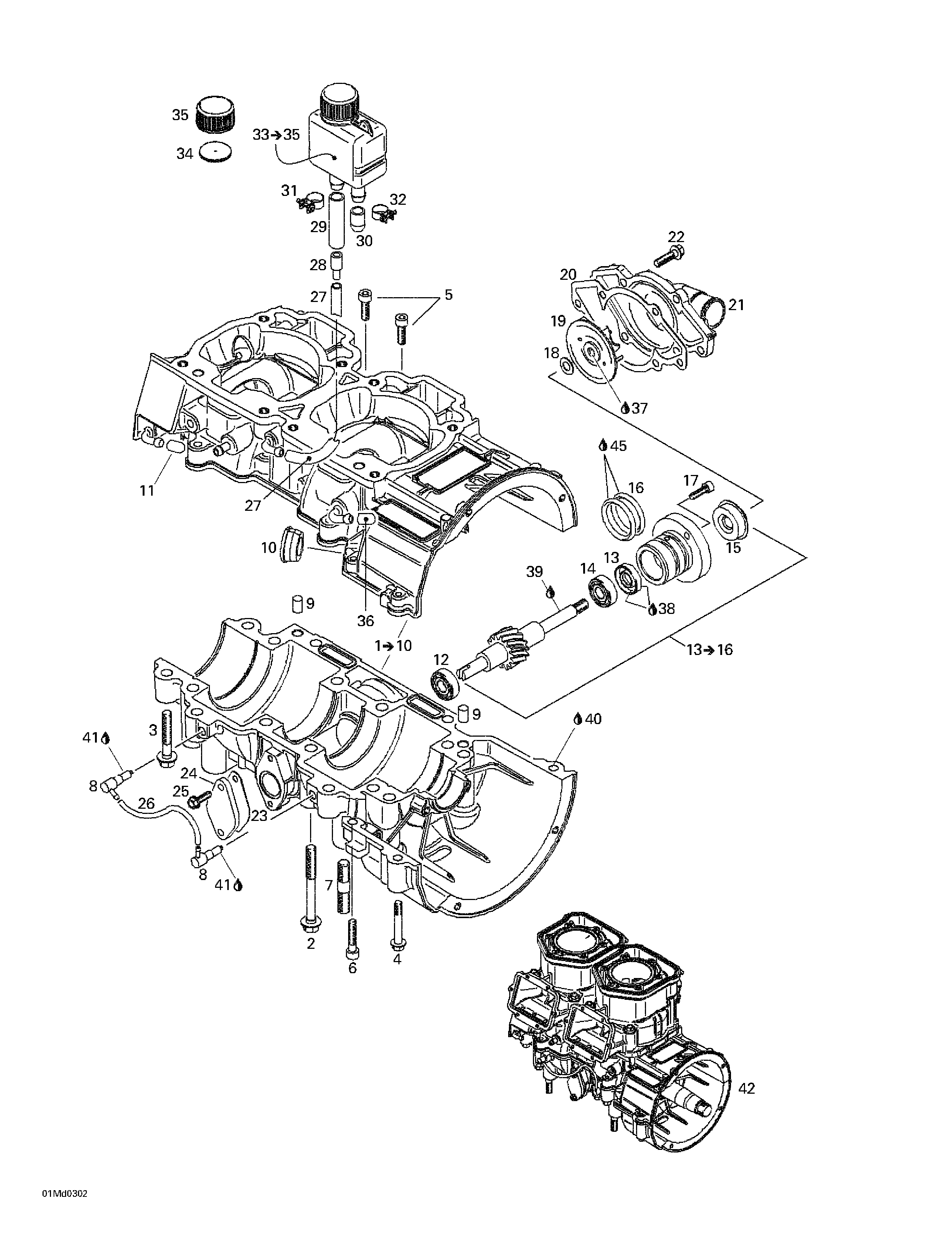

01- Crankcase, Water Pump для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1420888768 Crankcase Ass'y. Includes 1 - 10.Crankcase Ass'y. Includes 1 - 10.
-
2420640836 Hex. Flanged Screw M8 x 75Hex. Flanged Screw M8 x 75
-
3420640431 Hex. Flanged Screw M8 x 45Hex. Flanged Screw M8 x 45
-
4420640311 Hex. Flanged Screw M6 x 45Hex. Flanged Screw M6 x 45
-
5205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
6205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
7420641834 Stud M10 x 29/17Stud M10 x 29/17
-
8420956510 Check ValveCheck Valve
-
9290632010 Center Pin 8 x 12Center Pin 8 x 12
-
10420860965 GrommetGrommet
-
11420960770 CapCap
-
12420232100 Ball BearingBall Bearing
-
13420837421 Water pump / Oil Pump. Includes 13 - 16.Water pump / Oil Pump. Includes 13 - 16.
-
13420230195 Oil SealOil Seal
-
14420232100 Ball BearingBall Bearing
-
15420650370 Rotary SealRotary Seal
-
16420950890 O-RingO-Ring
-
17420840511 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
18420227945 WasherWasher
-
19420222505 Water ImpellerWater Impeller
-
20420931810 GasketGasket
-
21420922630 Water Pump HousingWater Pump Housing
-
22420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
23420931565 GasketGasket
-
24420810825 Cover PlateCover Plate
-
25420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
26414413800 Oil LineOil Line
-
27415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
28420874370 FittingFitting
-
29420956239 Oil Tube 165 mmOil Tube 165 mm
-
30420960279 Closure CapClosure Cap
-
31420951260 ClampClamp
-
32420951240 ClampClamp
-
33420956240 Oil Tank. Includes 33 - 35.Oil Tank. Includes 33 - 35.
-
34420850350 Rubber GasketRubber Gasket
-
35420956250 Oil Tank CapOil Tank Cap
-
36420960777 CapCap
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38420899271 Grease Petamo GHY 133N, 400 gGrease Petamo GHY 133N, 400 g
-
39413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
40420297906 Sealing Compound 2290, 30 mlSealing Compound 2290, 30 ml
-
41413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42420045304 Engine Short Block >Engine Short Block >
-
44420938190 ClampClamp
-
45413707000 Molykote 111Molykote 111
