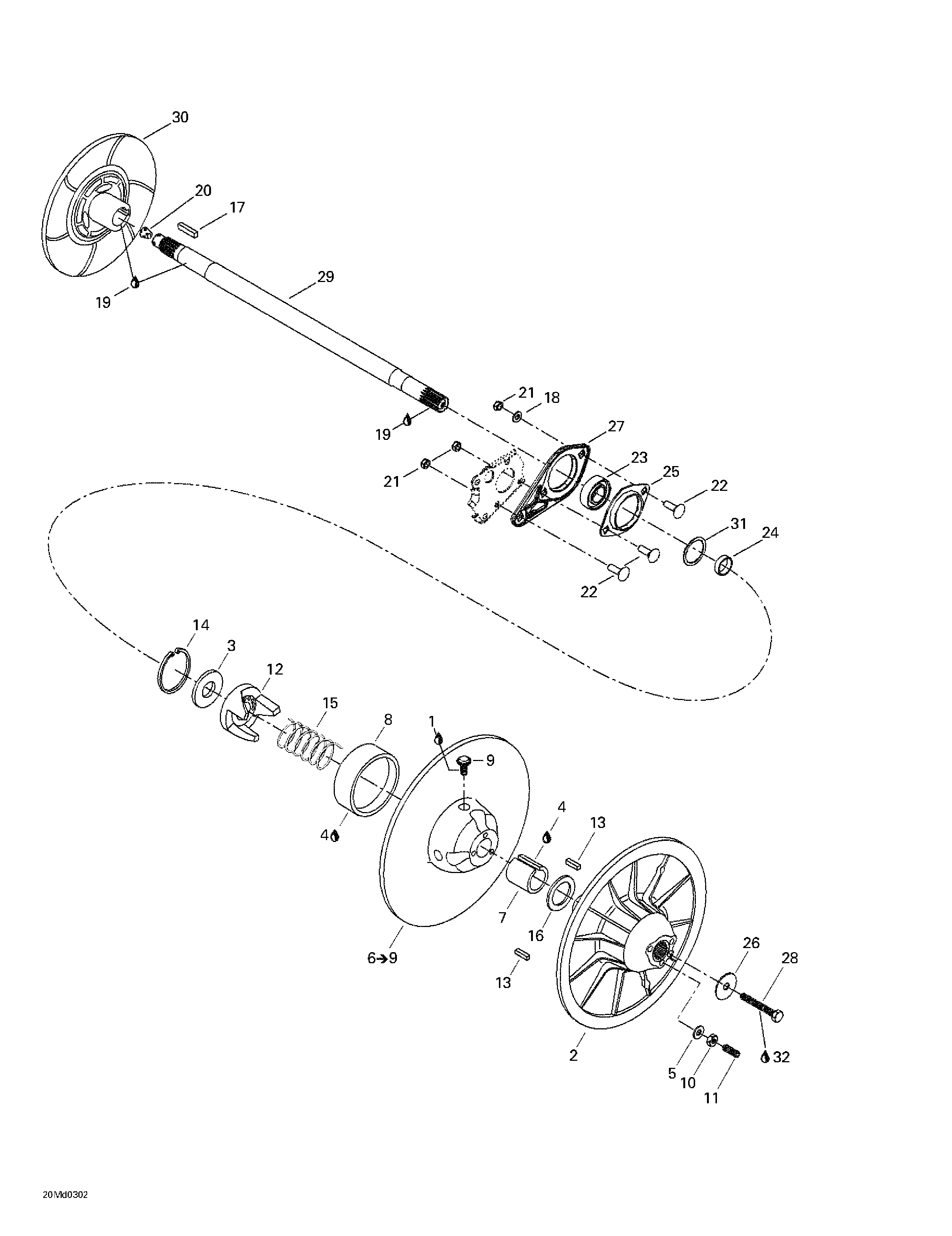

05- Driven Pulley для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
2417126478 Fixed Flange Ass'yFixed Flange Ass'y
-
3504141800 WasherWasher
-
4413703100 Loctite 609, 10 c.cLoctite 609, 10 c.c
-
5420245370 WasherWasher
-
6417126739 Sliding Flange Ass'y. Includes 6 - 9.Sliding Flange Ass'y. Includes 6 - 9.
-
7417126515 BushingBushing
-
8417126514 BushingBushing
-
9417126601 RollerRoller
-
10232061414 Nut M6Nut M6
-
11206263044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
12417126737 Cam 53/47 DegCam 53/47 Deg
-
13414820800 KeyKey
-
14371903100 CirclipCirclip
-
15414558900 Release spring (Beige)Release spring (Beige)
-
16504141900 Thrust WasherThrust Washer
-
17507021300 KeyKey
-
18234081410 Washer 8 mmWasher 8 mm
-
19293800070 Loctite, Antiseize Lube, 8 ozLoctite, Antiseize Lube, 8 oz
-
20414784800 CorkCork
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22207782544 Carriage Bolt M8 x 25Carriage Bolt M8 x 25
-
23504152026 Ball BearingBall Bearing
-
24417126302 SpacerSpacer
-
25501026900 FlangeFlange
-
26517302322 Strength WasherStrength Washer
-
27504151968 Casting SpacerCasting Spacer
-
28207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
29504152020 CountershaftCountershaft
-
30507032363 Brake Disk Ass'yBrake Disk Ass'y
-
31417300231 SpacerSpacer
-
417300054 SpacerSpacer
-
504112000 ShimShim
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
