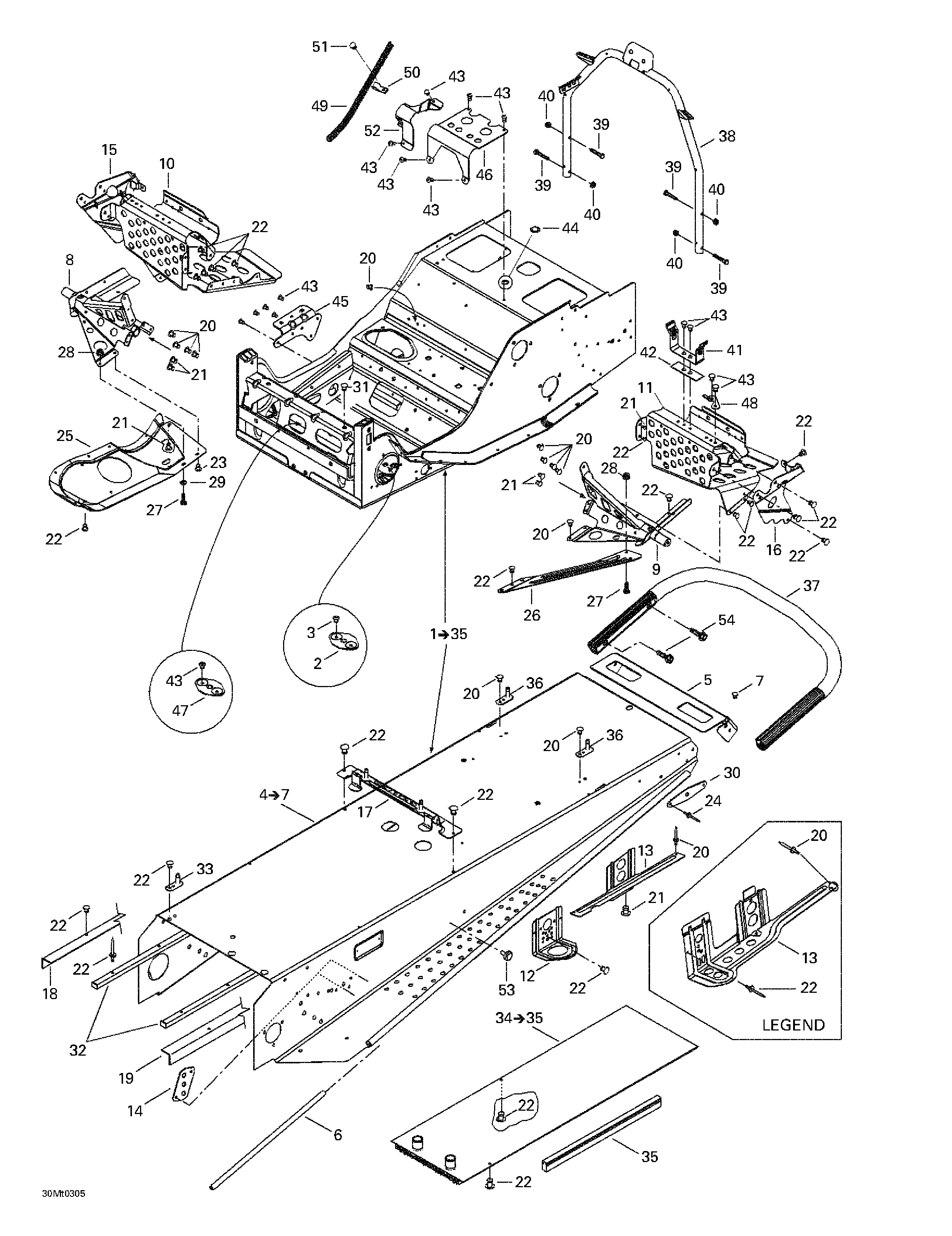

09- Frame для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1415128554 Frame. Includes 1 - 35. Grand Touring SE 800 SDI.Frame. Includes 1 - 35. Grand Touring SE 800 SDI.
-
1415128551 Frame. Includes 1 - 36. Legend SE 800 SDI.Frame. Includes 1 - 36. Legend SE 800 SDI.
-
2518201307 Bracket plateBracket plate
-
3390402200 Pop rivet 3/16''Pop rivet 3/16''
-
4415128615 Forming frame. Includes 4 - 7. Grand Touring SE 800 SDI.Forming frame. Includes 4 - 7. Grand Touring SE 800 SDI.
-
518322534 Forming frame. Legend SE 800 SDI.Forming frame. Legend SE 800 SDI.
-
5518322734 Rear cap. Grand Touring SE 800 SDI.Rear cap. Grand Touring SE 800 SDI.
-
518321303 Rear cap. Legend SE 800 SDI.Rear cap. Legend SE 800 SDI.
-
6518304746 Footrest reinforcementFootrest reinforcement
-
7390402200 Pop rivet 3/16''Pop rivet 3/16''
-
8518320506 R.h. foot supportR.h. foot support
-
9518320507 L.h. foot supportL.h. foot support
-
10518323563 R.h. footrestR.h. footrest
-
11518323564 L.h. footrestL.h. footrest
-
12518321495 Front bracket. Grand Touring SE 800 SDI.Front bracket. Grand Touring SE 800 SDI.
-
13518323051 R.h. rear bracket. Grand Touring SE 800 SDI.R.h. rear bracket. Grand Touring SE 800 SDI.
-
518323315 R.h. Slide bracket. Legend SE 800 SDI.R.h. Slide bracket. Legend SE 800 SDI.
-
518323055 L.h. rear bracket. Grand Touring SE 800 SDI.L.h. rear bracket. Grand Touring SE 800 SDI.
-
518323318 L.h. Slide bracket. Legend SE 800 SDI.L.h. Slide bracket. Legend SE 800 SDI.
-
14518201321 Reinforcement plateReinforcement plate
-
15518321305 R.h. footrest reinforcementR.h. footrest reinforcement
-
16518321307 L.h. footrest reinforcementL.h. footrest reinforcement
-
17518321510 Tank bracketTank bracket
-
18518323190 R.h. reinforcement. Grand Touring SE 800 SDI.R.h. reinforcement. Grand Touring SE 800 SDI.
-
518323193 R.h. reinforcement. Legend SE 800 SDI.R.h. reinforcement. Legend SE 800 SDI.
-
19518323191 L.h. reinforcement. Grand Touring SE 800 SDI.L.h. reinforcement. Grand Touring SE 800 SDI.
-
518323195 L.h. reinforcement. Legend SE 800 SDI.L.h. reinforcement. Legend SE 800 SDI.
-
20390909200 Rivet avexRivet avex
-
21390909100 Rivet avexRivet avex
-
22390402200 Pop rivet 3/16''Pop rivet 3/16''
-
23390402300 Pop rivet 3/16''Pop rivet 3/16''
-
24390402400 Pop rivet 3/16''. Grand Touring SE 800 SDI.Pop rivet 3/16''. Grand Touring SE 800 SDI.
-
25518322636 R.h. bottom pan plateR.h. bottom pan plate
-
26518322119 L.h. reinforcement plateL.h. reinforcement plate
-
27207152044 Hex screw M5 x 20Hex screw M5 x 20
-
28233251414 Hex flanged nut M5Hex flanged nut M5
-
29391301700 WasherWasher
-
30518316767 Rear Reinforcement. Grand Touring SE 800 SDI.Rear Reinforcement. Grand Touring SE 800 SDI.
-
31390910300 Henrob RivetHenrob Rivet
-
32518321543 Frame ProtectorFrame Protector
-
33518323173 Double bracketDouble bracket
-
34518322905 Rear radiator. Includes 34 - 35. Grand Touring SE 800 SDI.Rear radiator. Includes 34 - 35. Grand Touring SE 800 SDI.
-
518323130 Rear radiator. Legend SE 800 SDI.Rear radiator. Legend SE 800 SDI.
-
35518321656 Radiator protector. Grand Touring SE 800 SDI.Radiator protector. Grand Touring SE 800 SDI.
-
518321655 Radiator protector. Legend SE 800 SDI.Radiator protector. Legend SE 800 SDI.
-
36518323321 Seat bracket. Legend SE 800 SDI.Seat bracket. Legend SE 800 SDI.
-
37517272510 Rear Bumper. Grand Touring SE 800 SDI.Rear Bumper. Grand Touring SE 800 SDI.
-
518322708 Rear Bumper. Legend SE 800 SDI.Rear Bumper. Legend SE 800 SDI.
-
38518322755 Handle supportHandle support
-
39207663544 Hex flanged screw M6 x 35Hex flanged screw M6 x 35
-
40233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
41518202100 Belt guard bracketBelt guard bracket
-
42518207500 ReinforcementReinforcement
-
43390402200 Pop rivet 3/16''Pop rivet 3/16''
-
44414859400 CapCap
-
45518322635 Muffler supportMuffler support
-
46518310400 Air intake supportAir intake support
-
47518201307 Bracket plateBracket plate
-
48518322031 Tool kit bracketTool kit bracket
-
49518321569 Rope guideRope guide
-
50518321570 Open clampOpen clamp
-
51293150103 Pop rivet 3/16''Pop rivet 3/16''
-
52518322699 Hose supportHose support
-
53518321954 Fastener panelFastener panel
-
54207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
