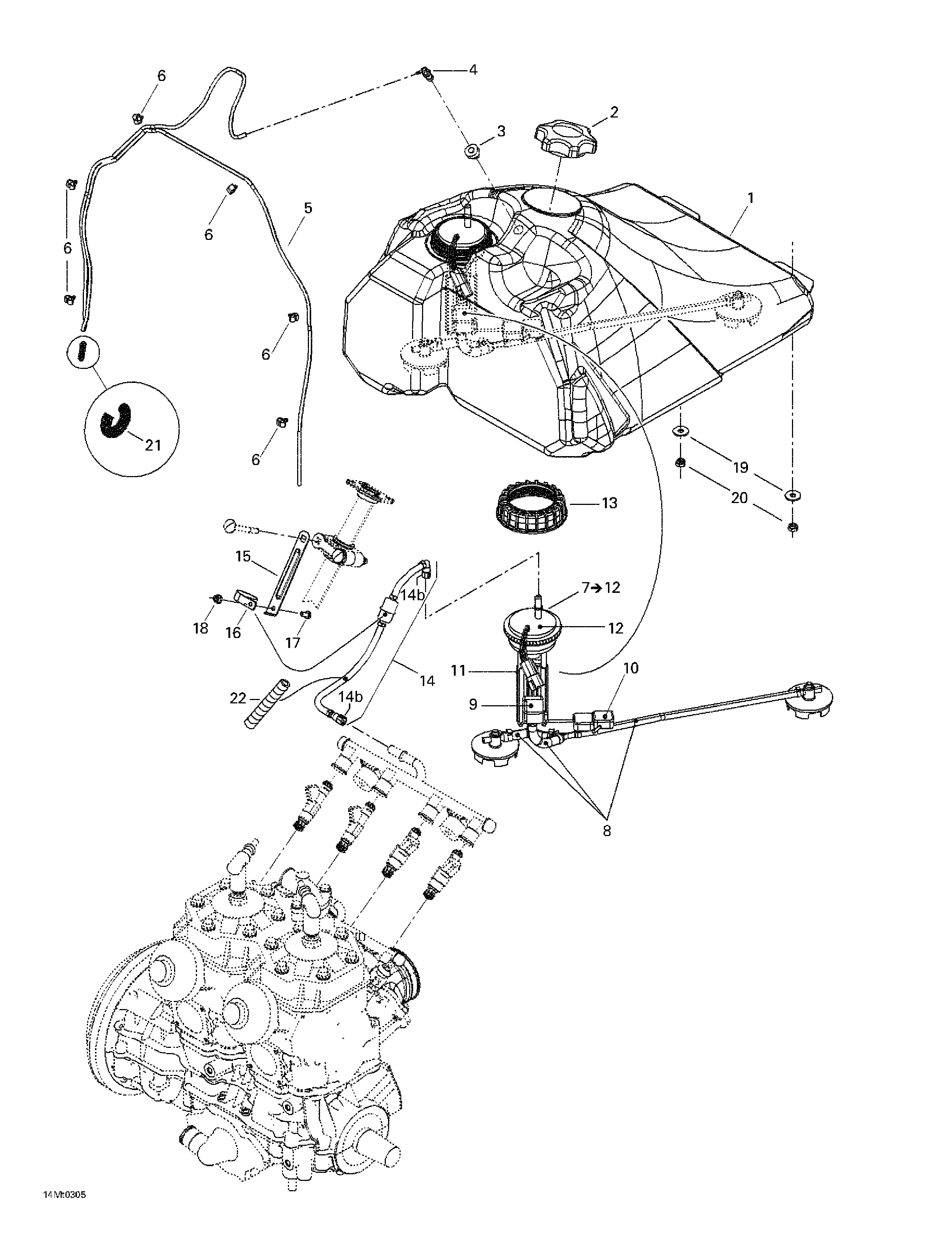

02- Fuel System для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1513033005 Tank-fuelTank-fuel
-
2572039600 Cap-fuel tankCap-fuel tank
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 Line 3.2 mmLine 3.2 mm
-
6513032923 Tube ClampTube Clamp
-
7513033006 Fuel Pump Module. Includes 7 - 12.Fuel Pump Module. Includes 7 - 12.
-
8861301700 Fuel Hose KitFuel Hose Kit
-
9861301800 Resistor Card KitResistor Card Kit
-
10861301900 Float Lever KitFloat Lever Kit
-
11861302000 Fuel Pump KitFuel Pump Kit
-
12861302100 Regulator KitRegulator Kit
-
13513033040 Fuel Pump Module NutFuel Pump Module Nut
-
14513033004 Fuel Filter Ass'yFuel Filter Ass'y
-
14b513033135 Locking ClipLocking Clip
-
15513033057 Filter supportFilter support
-
16513033047 Open clampOpen clamp
-
17207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
18233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19234082410 Flat Washer 8 mmFlat Washer 8 mm
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21414818200 SpringSpring
-
22415080000 Tubing-16mmTubing-16mm
