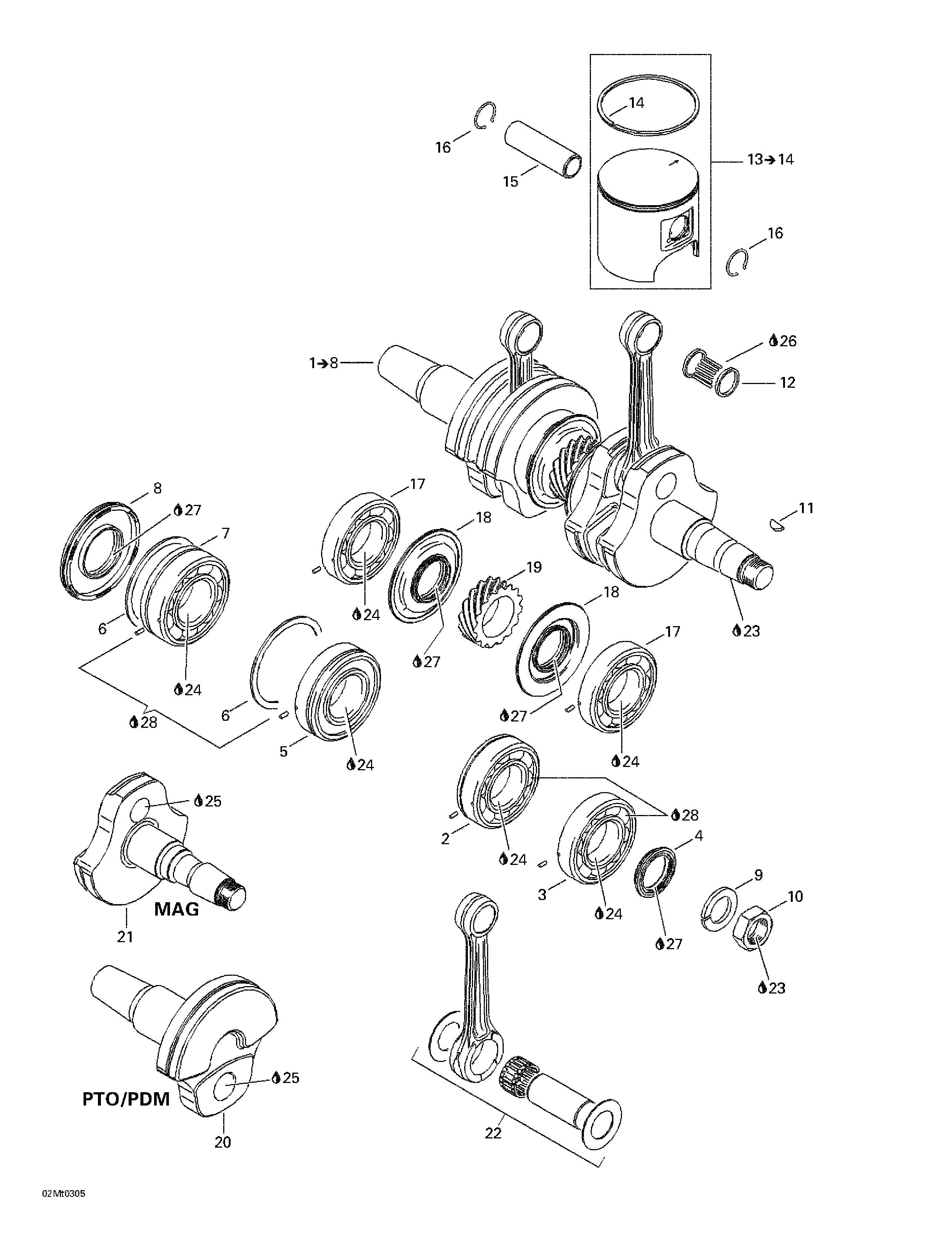

01- Crankshaft And Pistons для BRP Ski-Doo Legend SE 800 SDI - 2003

  • №
    Артикул
    Название
  • 1
    420889106 Crankshaft ass'y. Includes 1 - 8.
    Crankshaft ass'y. Includes 1 - 8.
  • 2
    420832636 Ball bearing with oil seal 6207
    Ball bearing with oil seal 6207
  • 3
    420832575 Ball bearing 6206
    Ball bearing 6206
  • 4
    420931792 Oil seal
    Oil seal
  • 5
    420832606 Ball bearing 6207
    Ball bearing 6207
  • 6
    420926190 Retainning disk
    Retainning disk
  • 7
    420832700 Ball bearing 6208
    Ball bearing 6208
  • 8
    420931280 Oil seal
    Oil seal
  • 9
    420945759 Lock washer
    Lock washer
  • 10
    420842234 Hex nut M22 x 1.5
    Hex nut M22 x 1.5
  • 11
    420246015 Woodfuff key
    Woodfuff key
  • 12
    420832425 Needle bearing
    Needle bearing
  • 13
    420889451 Piston ass'y (81.87 mm). Includes 13 - 14.
    Piston ass'y (81.87 mm). Includes 13 - 14.
  • 14
    420815218 Oversize semi-trapez ring
    Oversize semi-trapez ring
  • 15
    420916370 Gudgeon pin
    Gudgeon pin
  • 16
    420845106 Piston circlip
    Piston circlip
  • 17
    420832575 Ball bearing 6207
    Ball bearing 6207
  • 18
    420931455 Oil seal
    Oil seal
  • 19
    420834355 Central gear (15 teeth)
    Central gear (15 teeth)
  • 20
    420819032 Crankshaft (PTO side)
    Crankshaft (PTO side)
  • 21
    420819066 Crankshaft (MAG side)
    Crankshaft (MAG side)
  • 22
    420889108 Rod repair kit (MAG side)
    Rod repair kit (MAG side)
  • 420889109 Rod repair kit (PTO side)
    Rod repair kit (PTO side)
  • 23
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 24
    293800070 Loctite 767, antiseize lubricant, 8 oz
    Loctite 767, antiseize lubricant, 8 oz
  • 25
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 26
    413802900 Injection oil (12 x 1 liter)
    Injection oil (12 x 1 liter)
  • 27
    420899271 Petamo grease, GHY133N, 400 g
    Petamo grease, GHY133N, 400 g
  • 28
    293550021 Isoflex grease, 50 g
    Isoflex grease, 50 g
