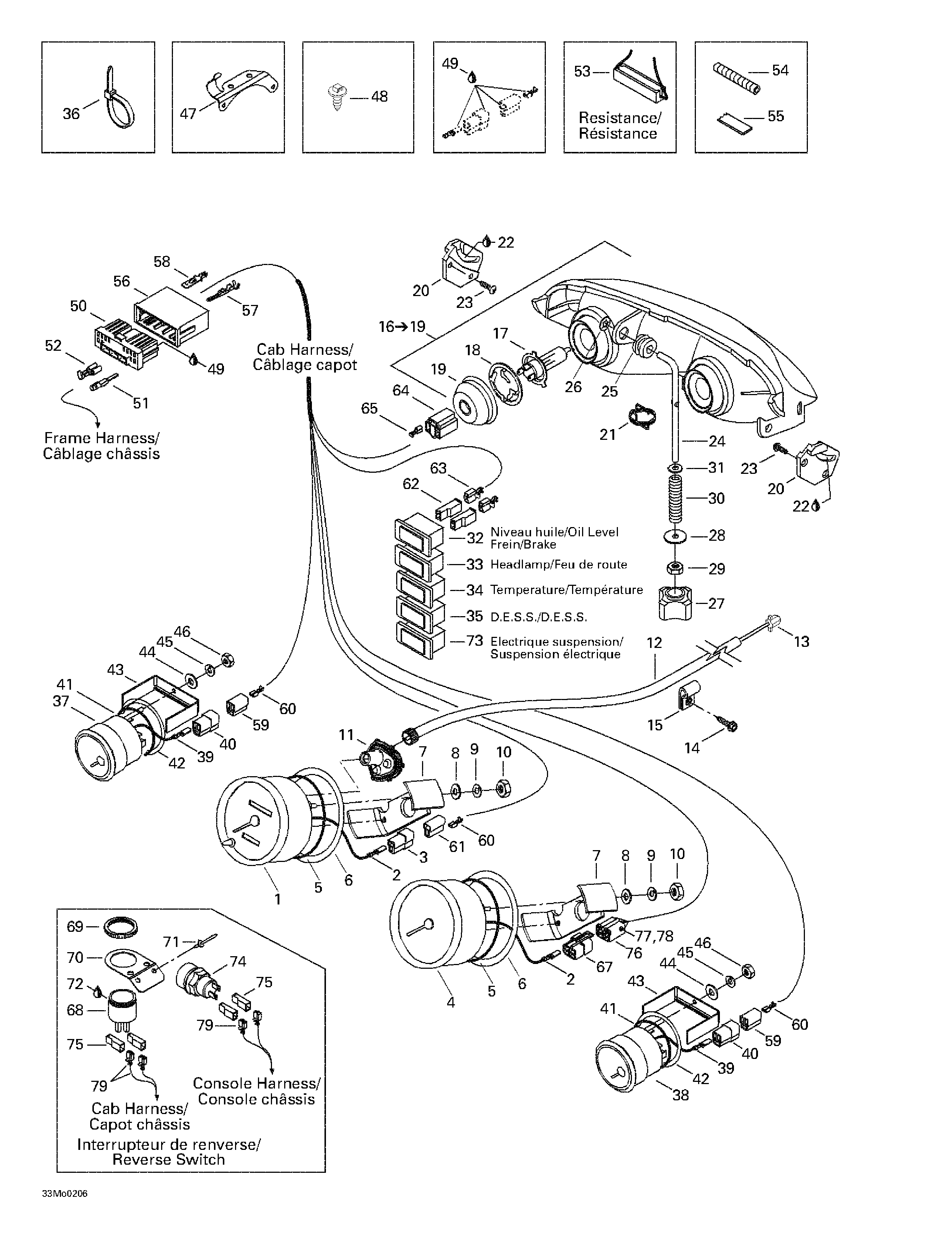

10- Electrical System для BRP Ski-Doo Legend 500/600/700/800 - 2002

  • №
    Артикул
    Название
  • 1
    515175335 Speedometer (KMH)
    Speedometer (KMH)
  • 515175336 Speedometer (MPH)
    Speedometer (MPH)
  • 2
    409210000 Male Terminal (14-18 Gauge)
    Male Terminal (14-18 Gauge)
  • 3
    409204500 Male Terminal Housing (2 circuits)
    Male Terminal Housing (2 circuits)
  • 4
    515175621 Tachometer
    Tachometer
  • 5
    414807100 O-Ring
    O-Ring
  • 6
    517258500 Washer
    Washer
  • 7
    414806500 Case Holder
    Case Holder
  • 8
    391301700 Flat Washer
    Flat Washer
  • 9
    414806700 Lock Washer
    Lock Washer
  • 10
    414806900 Nut
    Nut
  • 11
    515175400 Drive Angle
    Drive Angle
  • 12
    415101500 Speedometer Cable
    Speedometer Cable
  • 13
    572010100 Speedometer Drive Insert
    Speedometer Drive Insert
  • 15
    414176000 Clip (Cable)
    Clip (Cable)
  • 16
    515175517 Halogen Headlamp. Includes 16 - 19.
    Halogen Headlamp. Includes 16 - 19.
  • 17
    410504401 Halogen Bulb 60/55 W
    Halogen Bulb 60/55 W
  • 18
    410608300 Bulb Holder
    Bulb Holder
  • 19
    410607100 Protector Cap
    Protector Cap
  • 20
    517289300 Headlamp Support R.H
    Headlamp Support R.H
  • 517289400 Headlamp Support L.H
    Headlamp Support L.H
  • 21
    515175324 Spring (Europe). Legend 600. Legend 700. Legend 800.
    Spring (Europe). Legend 600. Legend 700. Legend 800.
  • 22
    413707500 Grease Tube LMZ, 400 g
    Grease Tube LMZ, 400 g
  • 23
    732601315 Headlamp Screw
    Headlamp Screw
  • 24
    517295800 Adjuster Rod
    Adjuster Rod
  • 25
    415100800 Grommet
    Grommet
  • 26
    732610072 Push Nut
    Push Nut
  • 27
    515175548 Handle
    Handle
  • 28
    224060251 Washer
    Washer
  • 29
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 30
    415100600 Spring
    Spring
  • 31
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 32
    515175728 Pilot Lamp (Oil Level/Brake)
    Pilot Lamp (Oil Level/Brake)
  • 33
    515175726 Pilot Lamp (Headlamp)
    Pilot Lamp (Headlamp)
  • 34
    515175727 Pilot Lamp (Temperature) (Sport). Legend 500. Legend 600. Legend 700.
    Pilot Lamp (Temperature) (Sport). Legend 500. Legend 600. Legend 700.
  • 515175731 Pilot Lamp (Temperature) (SE). Legend 600. Legend 800.
    Pilot Lamp (Temperature) (SE). Legend 600. Legend 800.
  • 35
    515175729 Pilot Lamp (DESS)
    Pilot Lamp (DESS)
  • 36
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 293750009 Tie Rap 160 mm
    Tie Rap 160 mm
  • 414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 515175220 Tie Rap
    Tie Rap
  • 37
    515175342 Temperature Gauge (SE/GS). Legend 600. Legend 700. Legend 800.
    Temperature Gauge (SE/GS). Legend 600. Legend 700. Legend 800.
  • 38
    515175343 Fuel Gauge (SE/GS). Legend 600. Legend 700. Legend 800.
    Fuel Gauge (SE/GS). Legend 600. Legend 700. Legend 800.
  • 39
    409210000 Male Terminal (SE/GS). Legend 600. Legend 700. Legend 800.
    Male Terminal (SE/GS). Legend 600. Legend 700. Legend 800.
  • 40
    409204200 Male Terminal Housing. (3 Circuits) (SE/GS) Legend 600. Legend 700. Legend 800.
    Male Terminal Housing. (3 Circuits) (SE/GS) Legend 600. Legend 700. Legend 800.
  • 41
    414807200 O-Ring (SE/GS). Legend 600. Legend 700. Legend 800.
    O-Ring (SE/GS). Legend 600. Legend 700. Legend 800.
  • 42
    517258600 Formed Washer (SE/GS). Legend 600. Legend 700. Legend 800.
    Formed Washer (SE/GS). Legend 600. Legend 700. Legend 800.
  • 43
    415099800 Case Holder (SE/GS). Legend 600. Legend 700. Legend 800.
    Case Holder (SE/GS). Legend 600. Legend 700. Legend 800.
  • 44
    391301700 Flat Washer (SE/GS). Legend 600. Legend 700. Legend 800.
    Flat Washer (SE/GS). Legend 600. Legend 700. Legend 800.
  • 45
    414833700 Lock Washer (SE/GS). Legend 600. Legend 700. Legend 800.
    Lock Washer (SE/GS). Legend 600. Legend 700. Legend 800.
  • 46
    414833600 Nut (SE/GS). Legend 600. Legend 700. Legend 800.
    Nut (SE/GS). Legend 600. Legend 700. Legend 800.
  • 47
    515175254 Cable Support
    Cable Support
  • 48
    293730018 Dart Mount
    Dart Mount
  • 49
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 50
    515175350 Female Terminal Housing (13 circuits)
    Female Terminal Housing (13 circuits)
  • 51
    515175231 Female Terminal
    Female Terminal
  • 52
    515175282 Female Terminal
    Female Terminal
  • 53
    515175241 Resistance (50 ohms)
    Resistance (50 ohms)
  • 54
    409902100 Tubing (6 mm)
    Tubing (6 mm)
  • 415079900 Tubing (10 mm)
    Tubing (10 mm)
  • 409901800 Tubing (13 mm)
    Tubing (13 mm)
  • 415080000 Tubing (16 mm)
    Tubing (16 mm)
  • 55
    293740005 Vinyl Tape 3/4''
    Vinyl Tape 3/4''
  • 56
    515175352 Male Terminal Housing (13 circuits)
    Male Terminal Housing (13 circuits)
  • 57
    515175232 Male Terminal
    Male Terminal
  • 58
    515175273 Male Terminal
    Male Terminal
  • 59
    409204300 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 60
    561503100 Female Terminal
    Female Terminal
  • 61
    409204600 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 62
    409010400 Female Terminal Housing (1 circuit)
    Female Terminal Housing (1 circuit)
  • 63
    409010100 Female Terminal
    Female Terminal
  • 64
    409202700 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 65
    515175320 Female Terminal
    Female Terminal
  • 66
    515175641 Hood Harness (Not Shown)
    Hood Harness (Not Shown)
  • 67
    409209300 Male Terminal Housing (4 circuits)
    Male Terminal Housing (4 circuits)
  • 68
    415060900 Horn
    Horn
  • 69
    414805101 Plastic Nut
    Plastic Nut
  • 70
    515175688 Painted Plate
    Painted Plate
  • 71
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 72
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 73
    515175731 Pilote Light (SE). Legend 600. Legend 800. (Electrique suspension)
    Pilote Light (SE). Legend 600. Legend 800. (Electrique suspension)
  • 74
    415101200 Reverse Knob
    Reverse Knob
  • 75
    409010400 Female Terminal Housing (6 Circuits)
    Female Terminal Housing (6 Circuits)
  • 76
    409204900 Female Terminal Housing (4 Circuits)
    Female Terminal Housing (4 Circuits)
  • 77
    409009200 Female Terminal
    Female Terminal
  • 78
    409009300 Female Terminal
    Female Terminal
  • 79
    409010100 Female Terminal
    Female Terminal
