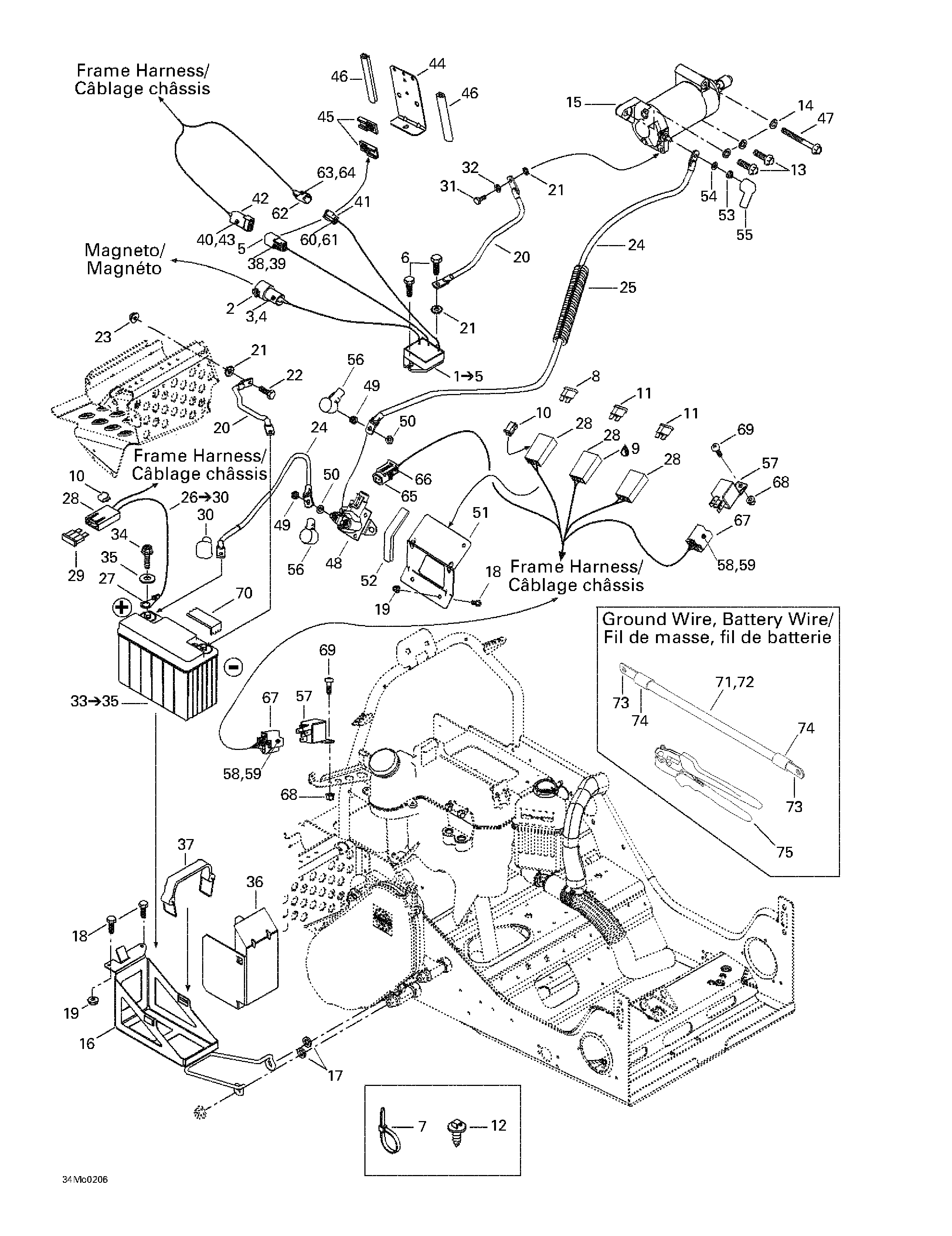

10- Battery And Starter для BRP Ski-Doo Legend 500/600/700/800 - 2002

  • №
    Артикул
    Название
  • 1
    515175661 Voltage Regulator. Includes 1 - 5.
    Voltage Regulator. Includes 1 - 5.
  • 2
    409207900 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 3
    409011100 Male Terminal
    Male Terminal
  • 4
    409208500 Seal
    Seal
  • 5
    278001674 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 6
    210261680 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 7
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 293750009 Tie Rap 160 mm
    Tie Rap 160 mm
  • 414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 515175220 Tie Rap
    Tie Rap
  • 8
    278000344 Fuse (5 Amperes)
    Fuse (5 Amperes)
  • 9
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 10
    409014200 Backward Clip
    Backward Clip
  • 11
    409003900 Fuse (20 Amperes)
    Fuse (20 Amperes)
  • 12
    293730018 Dart Mount
    Dart Mount
  • 13
    207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)
    Hex Flanged Screw M8 X 30 (Scotch Grip)
  • 14
    250200008 Flat Washer 8 mm
    Flat Washer 8 mm
  • 15
    515175562 Starter
    Starter
  • 16
    515175625 Battery Support
    Battery Support
  • 17
    503175800 Flat Washer
    Flat Washer
  • 18
    207151444 Hex. Screw M5 x 14
    Hex. Screw M5 x 14
  • 19
    233251414 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 21
    250200000 Serrated Lock Washer
    Serrated Lock Washer
  • 22
    207161644 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 23
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 25
    409901700 Tubing
    Tubing
  • 26
    515175489 Battery Fuse Wire. Includes 26 - 30.
    Battery Fuse Wire. Includes 26 - 30.
  • 27
    409012600 Ring Terminal
    Ring Terminal
  • 28
    409004000 Fuse Holder
    Fuse Holder
  • 29
    410917200 Fuse (30 Amperes)
    Fuse (30 Amperes)
  • 30
    570151000 Protection Cap
    Protection Cap
  • 31
    207361644 Hex. Screw (Scotch Grip) M6 x 16
    Hex. Screw (Scotch Grip) M6 x 16
  • 32
    234181401 Flat Washer 6 mm
    Flat Washer 6 mm
  • 33
    515175759 Battery (18 Amperes). Includes 33 - 35.
    Battery (18 Amperes). Includes 33 - 35.
  • 34
    207151260 Hex. Screw M6 x 12
    Hex. Screw M6 x 12
  • 35
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 36
    515175643 Deflector
    Deflector
  • 37
    515175475 Battery Strap
    Battery Strap
  • 38
    278001672 Male Lock
    Male Lock
  • 39
    515175568 Male Terminal
    Male Terminal
  • 40
    278001671 Female Lock
    Female Lock
  • 41
    515175670 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 42
    278001673 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 43
    515175567 Female terminal
    Female terminal
  • 44
    515175738 Housing Support
    Housing Support
  • 45
    270000141 Clip
    Clip
  • 46
    271000110 Trim Protector
    Trim Protector
  • 47
    207587544 Hex. Flanged Screw (Scotch Grip) M8 x 75
    Hex. Flanged Screw (Scotch Grip) M8 x 75
  • 48
    278001641 Starter Relay
    Starter Relay
  • 49
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 50
    234061410 Flat Washer
    Flat Washer
  • 51
    515175695 Fuse Holder
    Fuse Holder
  • 52
    271000110 Trim Protector
    Trim Protector
  • 53
    232561414 Hex. Nut M6
    Hex. Nut M6
  • 54
    234061410 Flat Washer M6
    Flat Washer M6
  • 55
    278000020 Cap
    Cap
  • 56
    570064200 Protection Cap
    Protection Cap
  • 57
    410113200 Relay
    Relay
  • 58
    409205300 Female terminal
    Female terminal
  • 59
    409203300 Female terminal
    Female terminal
  • 60
    515175675 Female Lock
    Female Lock
  • 61
    278000632 Female terminal
    Female terminal
  • 62
    515175665 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 63
    278000631 MaleTerminal
    MaleTerminal
  • 64
    409207500 Male Lock
    Male Lock
  • 65
    278001113 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 66
    278001114 Female terminal
    Female terminal
  • 67
    409209900 Female Terminal Housing (5 Circuits)
    Female Terminal Housing (5 Circuits)
  • 68
    233251414 Elastic Flanged Nut
    Elastic Flanged Nut
  • 69
    208651241 Screw
    Screw
  • 70
    293740005 Vinyl Tape 3/4''
    Vinyl Tape 3/4''
  • 71
    278001680 Ground Cable Battery (no. 6) (Meter)
    Ground Cable Battery (no. 6) (Meter)
  • 278001681 Ground Cable Battery (no. 4) (Meter)
    Ground Cable Battery (no. 4) (Meter)
  • 72
    278001690 Red Cable Battery (no. 6) (Meter)
    Red Cable Battery (no. 6) (Meter)
  • 73
    278001682 Flat Terminal (Small Hole)
    Flat Terminal (Small Hole)
  • 278001683 Terminal 45 Deg. (Small Hole)
    Terminal 45 Deg. (Small Hole)
  • 278001684 Terminal 90 Deg. (Small Hole)
    Terminal 90 Deg. (Small Hole)
  • 278001685 Flat Terminal (Big Hole)
    Flat Terminal (Big Hole)
  • 278001686 Terminal 45 Deg. (Big Hole)
    Terminal 45 Deg. (Big Hole)
  • 278001687 Terminal 90 Deg. (Big Hole)
    Terminal 90 Deg. (Big Hole)
  • 278001688 Flat Terminal
    Flat Terminal
  • 74
    278001692 Heat Shrink
    Heat Shrink
  • 75
    529035730 Crimp Plier
    Crimp Plier
