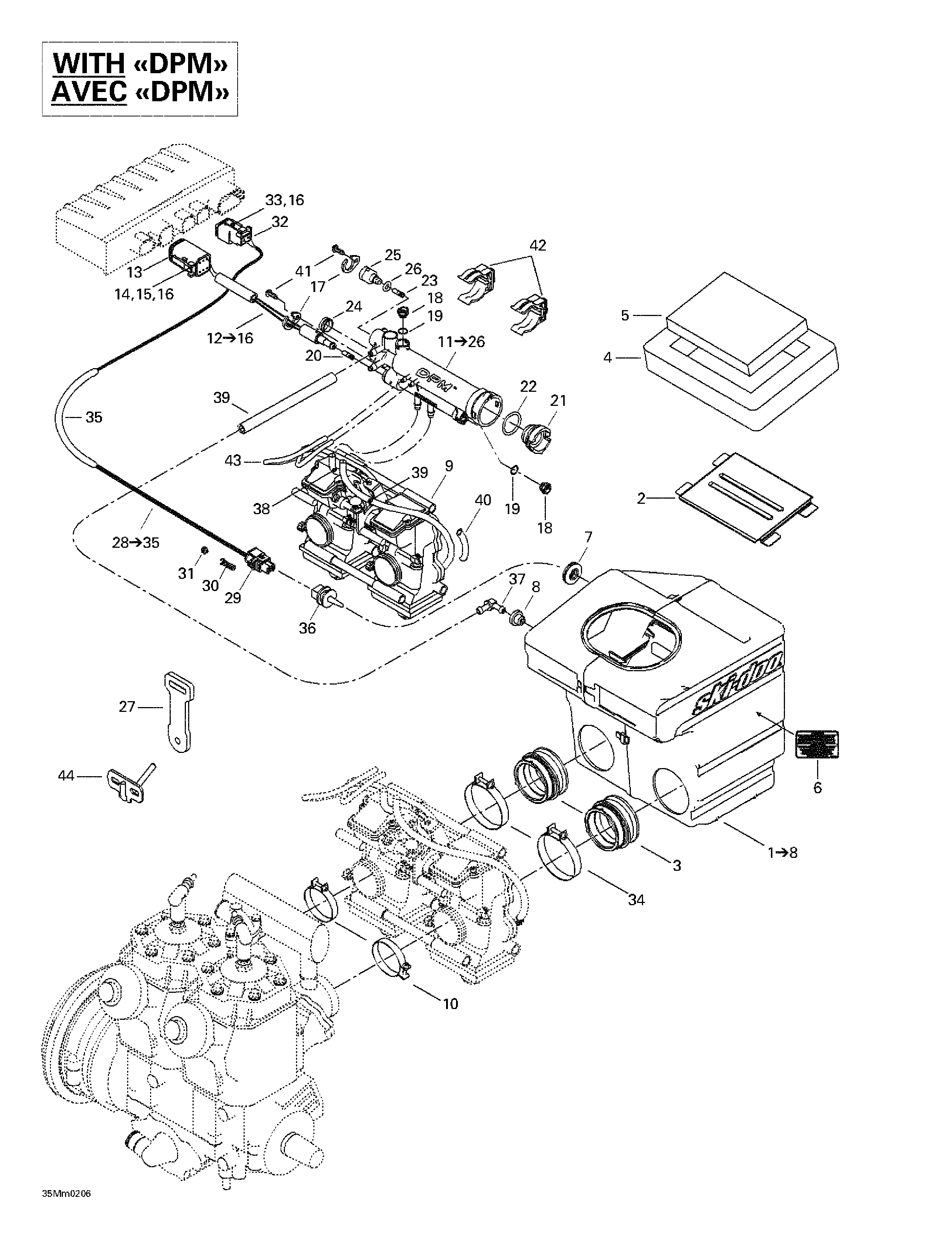

02- Air Intake System 2 для BRP Ski-Doo Legend 500/600/700/800 - 2002

  • №
    Артикул
    Название
  • 1
    508000226 Air Intake Ass'y. Includes 1 - 8. Legend 600.
    Air Intake Ass'y. Includes 1 - 8. Legend 600.
  • 508000227 Air Intake Ass'y. Legend 700.
    Air Intake Ass'y. Legend 700.
  • 508000223 Air Intake Ass'y. Legend 800.
    Air Intake Ass'y. Legend 800.
  • 2
    508000004 Intake Grill. Legend 600. Legend 700. Legend 800.
    Intake Grill. Legend 600. Legend 700. Legend 800.
  • 3
    508000092 Air Intake Adaptor (40 mm). Legend 600. Legend 700. Legend 800.
    Air Intake Adaptor (40 mm). Legend 600. Legend 700. Legend 800.
  • 4
    508000099 Lower Foam. Legend 600. Legend 700. Legend 800.
    Lower Foam. Legend 600. Legend 700. Legend 800.
  • 5
    508000154 Air Filter. Legend 600. Legend 700. Legend 800.
    Air Filter. Legend 600. Legend 700. Legend 800.
  • 6
    516001191 Instruction Label. Legend 600. Legend 700. Legend 800.
    Instruction Label. Legend 600. Legend 700. Legend 800.
  • 7
    570065500 Grommet. Legend 600. Legend 700. Legend 800.
    Grommet. Legend 600. Legend 700. Legend 800.
  • 8
    513032908 Grommet. Legend 600. Legend 700. Legend 800.
    Grommet. Legend 600. Legend 700. Legend 800.
  • 9
    403138700 Carburetor Kit TM 40 B-154. Legend 600.
    Carburetor Kit TM 40 B-154. Legend 600.
  • 403138699 Carburetor Kit TM 40 B-160. Legend 700.
    Carburetor Kit TM 40 B-160. Legend 700.
  • 403138698 Carburetor Kit TM 40 B-166. Legend 800.
    Carburetor Kit TM 40 B-166. Legend 800.
  • 10
    512059305 Clamp. Legend 600. Legend 700. Legend 800.
    Clamp. Legend 600. Legend 700. Legend 800.
  • 11
    512059496 Pressure Manifold Ass'y. Includes 11 - 26. Legend 600.
    Pressure Manifold Ass'y. Includes 11 - 26. Legend 600.
  • 512059497 Pressure Manifold Ass'y. Legend 700. Legend 800.
    Pressure Manifold Ass'y. Legend 700. Legend 800.
  • 12
    515175693 Pressure Manifold Harness. Includes 12 - 16. Legend 600. Legend 700. Legend 800.
    Pressure Manifold Harness. Includes 12 - 16. Legend 600. Legend 700. Legend 800.
  • 13
    515175673 Female Terminal Housing (6 circuits). Legend 600. Legend 700. Legend 800.
    Female Terminal Housing (6 circuits). Legend 600. Legend 700. Legend 800.
  • 14
    515175678 Female Lock (6 circuits). Legend 600. Legend 700. Legend 800.
    Female Lock (6 circuits). Legend 600. Legend 700. Legend 800.
  • 15
    293000052 Plug. Legend 600. Legend 700. Legend 800.
    Plug. Legend 600. Legend 700. Legend 800.
  • 16
    278000632 Female Terminal. Legend 600. Legend 700. Legend 800.
    Female Terminal. Legend 600. Legend 700. Legend 800.
  • 17
    415061600 Solenoid Lock. Legend 600. Legend 700. Legend 800.
    Solenoid Lock. Legend 600. Legend 700. Legend 800.
  • 18
    512058921 Cap. Legend 600. Legend 700. Legend 800.
    Cap. Legend 600. Legend 700. Legend 800.
  • 19
    512058925 O-Ring. Legend 600. Legend 700. Legend 800.
    O-Ring. Legend 600. Legend 700. Legend 800.
  • 20
    404161825 Starter Jet. Legend 600. Legend 700. Legend 800.
    Starter Jet. Legend 600. Legend 700. Legend 800.
  • 21
    512058949 Cap. Legend 600. Legend 700. Legend 800.
    Cap. Legend 600. Legend 700. Legend 800.
  • 22
    512058950 O-Ring. Legend 600. Legend 700. Legend 800.
    O-Ring. Legend 600. Legend 700. Legend 800.
  • 24
    512058982 Cap. Legend 600. Legend 700. Legend 800.
    Cap. Legend 600. Legend 700. Legend 800.
  • 25
    512059557 Cap. Legend 600. Legend 700. Legend 800.
    Cap. Legend 600. Legend 700. Legend 800.
  • 26
    512059558 O-Ring. Legend 600. Legend 700. Legend 800.
    O-Ring. Legend 600. Legend 700. Legend 800.
  • 27
    512059372 Carburetor Latch. Legend 600. Legend 700. Legend 800.
    Carburetor Latch. Legend 600. Legend 700. Legend 800.
  • 28
    515175703 Temperature Harness. Includes 28 - 35. Legend 600. Legend 700. Legend 800.
    Temperature Harness. Includes 28 - 35. Legend 600. Legend 700. Legend 800.
  • 29
    515175588 Female Terminal Housing (2 circuits). Legend 600. Legend 700. Legend 800.
    Female Terminal Housing (2 circuits). Legend 600. Legend 700. Legend 800.
  • 30
    278000998 Female Terminal. Legend 600. Legend 700. Legend 800.
    Female Terminal. Legend 600. Legend 700. Legend 800.
  • 31
    278000999 Seal. Legend 600. Legend 700. Legend 800.
    Seal. Legend 600. Legend 700. Legend 800.
  • 32
    515175670 Female Terminal Housing (2 circuits). Legend 600. Legend 700. Legend 800.
    Female Terminal Housing (2 circuits). Legend 600. Legend 700. Legend 800.
  • 33
    515175706 Female Lock (2 circuits). Legend 600. Legend 700. Legend 800.
    Female Lock (2 circuits). Legend 600. Legend 700. Legend 800.
  • 34
    508000162 Clamp. Legend 600. Legend 700. Legend 800.
    Clamp. Legend 600. Legend 700. Legend 800.
  • 35
    515175332 Tubing. Legend 600. Legend 700. Legend 800.
    Tubing. Legend 600. Legend 700. Legend 800.
  • 36
    270600000 Air Sensor. Legend 600. Legend 700. Legend 800.
    Air Sensor. Legend 600. Legend 700. Legend 800.
  • 37
    414580600 Elbow Male Connector. Legend 600. Legend 700. Legend 800.
    Elbow Male Connector. Legend 600. Legend 700. Legend 800.
  • 38
    512059524 Hose. Legend 600. Legend 700. Legend 800.
    Hose. Legend 600. Legend 700. Legend 800.
  • 39
    512059523 Hose. Legend 600. Legend 700. Legend 800.
    Hose. Legend 600. Legend 700. Legend 800.
  • 40
    409901700 Tubing. Legend 600. Legend 700. Legend 800.
    Tubing. Legend 600. Legend 700. Legend 800.
  • 41
    241140060 Screw K40 x 10. Legend 600. Legend 700. Legend 800.
    Screw K40 x 10. Legend 600. Legend 700. Legend 800.
  • 42
    512058919 Support. Legend 600. Legend 700. Legend 800.
    Support. Legend 600. Legend 700. Legend 800.
  • 43
    404161904 Hose. Legend 600. Legend 700. Legend 800.
    Hose. Legend 600. Legend 700. Legend 800.
  • 44
    512059504 Carburetor Bracket. Legend 600. Legend 700. Legend 800.
    Carburetor Bracket. Legend 600. Legend 700. Legend 800.
