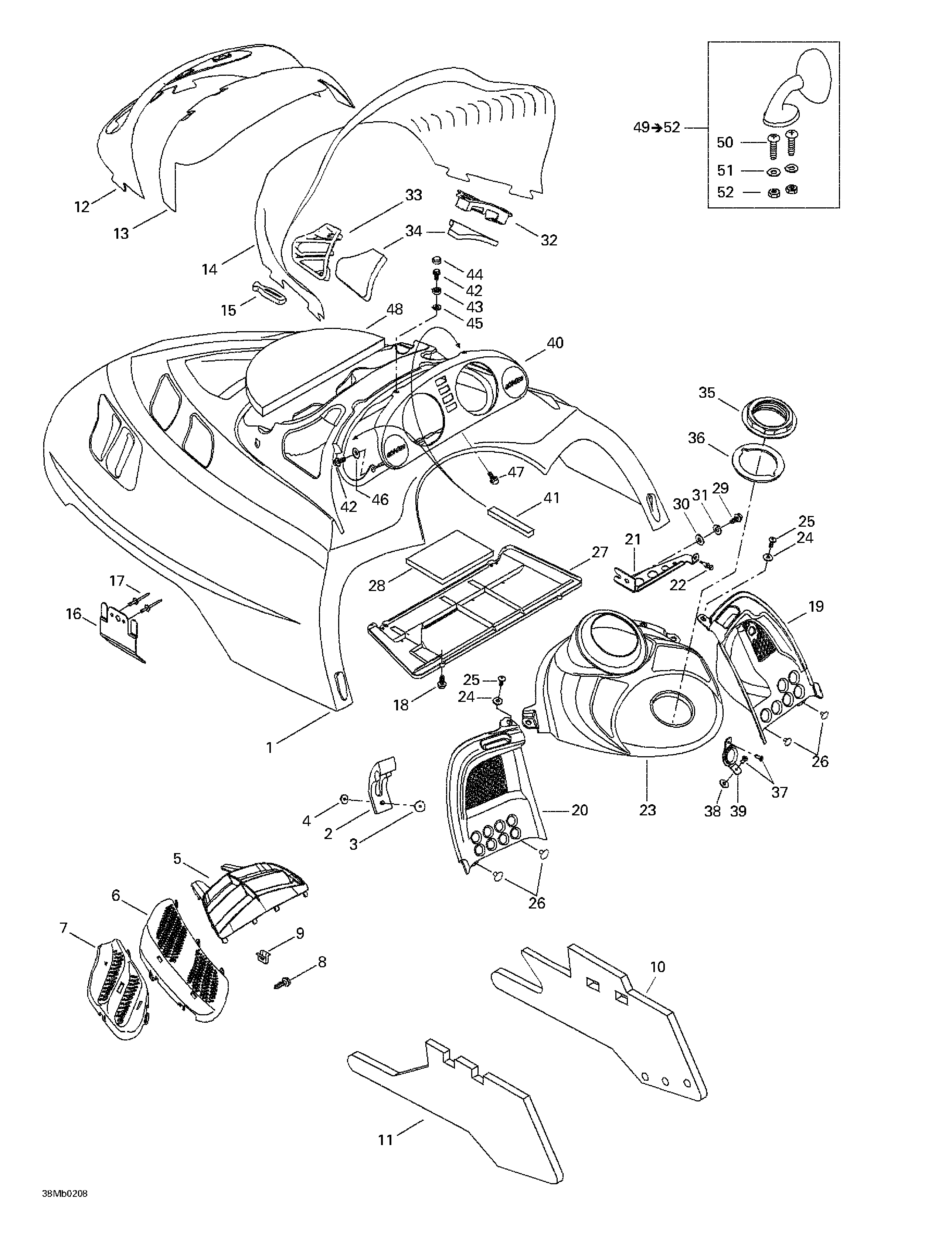

09- Cab, Console для BRP Ski-Doo Legend 380F/500F - 2002

  • №
    Артикул
    Название
  • 1
    517302528 Hood (Yellow (B190)). MX Z 380 F. MX Z 500 F.
    Hood (Yellow (B190)). MX Z 380 F. MX Z 500 F.
  • 517302529 Hood (Black (B-160)). MX Z 380 F. MX Z 500 F.
    Hood (Black (B-160)). MX Z 380 F. MX Z 500 F.
  • 517302529 Hood (Black (B-160)). Legend 380 F. Legend 500 F.
    Hood (Black (B-160)). Legend 380 F. Legend 500 F.
  • 517302685 Hood (Blue (B-225)). Legend 380 F. Legend 500 F.
    Hood (Blue (B-225)). Legend 380 F. Legend 500 F.
  • 517302581 Hood (2 tons). Legend 380 F. Legend 500 F.
    Hood (2 tons). Legend 380 F. Legend 500 F.
  • 2
    570027100 Hood Latch
    Hood Latch
  • 3
    390907700 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    517124300 Washer
    Washer
  • 5
    517302676 Center Grill (Black)
    Center Grill (Black)
  • 6
    517302567 R.H. Intermediate Grill (Black)
    R.H. Intermediate Grill (Black)
  • 517302568 L.H. Intermediate Grill (Black)
    L.H. Intermediate Grill (Black)
  • 7
    517302569 R.H. Side Grill
    R.H. Side Grill
  • 517302570 L.H. Side Grill
    L.H. Side Grill
  • 8
    732601210 Hex. Tapping Screw
    Hex. Tapping Screw
  • 9
    517302183 Clip
    Clip
  • 10
    517302669 R.H. Side Foam
    R.H. Side Foam
  • 11
    517302670 L.H. Side Foam
    L.H. Side Foam
  • 12
    517302582 Headlamp Moulding. MX Z 380 F. MX Z 500 F.
    Headlamp Moulding. MX Z 380 F. MX Z 500 F.
  • 517302158 Headlamp Moulding. Legend 380 F. Legend 500 F.
    Headlamp Moulding. Legend 380 F. Legend 500 F.
  • 13
    517302003 Windshield Support
    Windshield Support
  • 14
    517302022 Windshield. MX Z 380 F. MX Z 500 F.
    Windshield. MX Z 380 F. MX Z 500 F.
  • 517302356 High Windshield. Legend 380 F. Legend 500 F.
    High Windshield. Legend 380 F. Legend 500 F.
  • 15
    570023800 Windshield Latch
    Windshield Latch
  • 16
    517302615 Hood Guide
    Hood Guide
  • 17
    390910000 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    243141640 Hex. Screw M4.8 x 16
    Hex. Screw M4.8 x 16
  • 19
    517302561 R.H. Console
    R.H. Console
  • 20
    517302006 L.H. Console
    L.H. Console
  • 21
    517302621 R.H. Console Support
    R.H. Console Support
  • 22
    517302624 Rubber Stopper
    Rubber Stopper
  • 23
    517302563 Center Console (Black (B-160)). MX Z 380 F. MX Z 500 F.
    Center Console (Black (B-160)). MX Z 380 F. MX Z 500 F.
  • 517302566 Center Console (Yellow (B190)). MX Z 380 F. MX Z 500 F.
    Center Console (Yellow (B190)). MX Z 380 F. MX Z 500 F.
  • 517302564 Center Console (Black (B-160)). Legend 380 F. Legend 500 F.
    Center Console (Black (B-160)). Legend 380 F. Legend 500 F.
  • 517302564 Center Console (Blue (B-225)). Legend 380 F. Legend 500 F.
    Center Console (Blue (B-225)). Legend 380 F. Legend 500 F.
  • 24
    391301600 Washer
    Washer
  • 25
    732600030 Screw
    Screw
  • 26
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 27
    517302578 Air Intake Plate
    Air Intake Plate
  • 28
    517302425 Secondary Foam
    Secondary Foam
  • 29
    210261280 Hex. Forming Screw M6 x 12
    Hex. Forming Screw M6 x 12
  • 30
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 31
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 32
    517302024 R.H. Air Intake Grill
    R.H. Air Intake Grill
  • 33
    517302025 L.H. Air Intake Grill
    L.H. Air Intake Grill
  • 34
    517302151 Air Intake Foam
    Air Intake Foam
  • 35
    517302043 Console Nut
    Console Nut
  • 36
    293250029 Gasket
    Gasket
  • 37
    390409400 Pop Rivet 5/32''
    Pop Rivet 5/32''
  • 38
    517302286 Rubber Stopper
    Rubber Stopper
  • 39
    517302129 Rope Guide
    Rope Guide
  • 40
    517302536 Indicator Support
    Indicator Support
  • 41
    517302420 Foam
    Foam
  • 42
    241140060 Hex. Flanged Screw K40 x 10
    Hex. Flanged Screw K40 x 10
  • 43
    414436800 Retainer Cap
    Retainer Cap
  • 44
    414436900 Snap Cap (Black)
    Snap Cap (Black)
  • 45
    234042600 Flat Washer 4 mm
    Flat Washer 4 mm
  • 46
    517124300 Washer
    Washer
  • 47
    732601210 Hex. Tapping Screw
    Hex. Tapping Screw
  • 48
    517302317 Center Foam (Blue (B-225)). Legend 380 F. Legend 500 F.
    Center Foam (Blue (B-225)). Legend 380 F. Legend 500 F.
  • 49
    414971910 R.H. Mirror. Includes 49 - 52. Legend 380 F. Legend 500 F.
    R.H. Mirror. Includes 49 - 52. Legend 380 F. Legend 500 F.
  • 414972010 L.H. Mirror. Legend 380 F. Legend 500 F.
    L.H. Mirror. Legend 380 F. Legend 500 F.
  • 50
    222842065 Screw M4 x 20. Legend 380 F. Legend 500 F.
    Screw M4 x 20. Legend 380 F. Legend 500 F.
  • 51
    517124300 Washer. Legend 380 F. Legend 500 F.
    Washer. Legend 380 F. Legend 500 F.
  • 52
    232541414 Elastic Stop Nut M4. Legend 380 F. Legend 500 F.
    Elastic Stop Nut M4. Legend 380 F. Legend 500 F.
