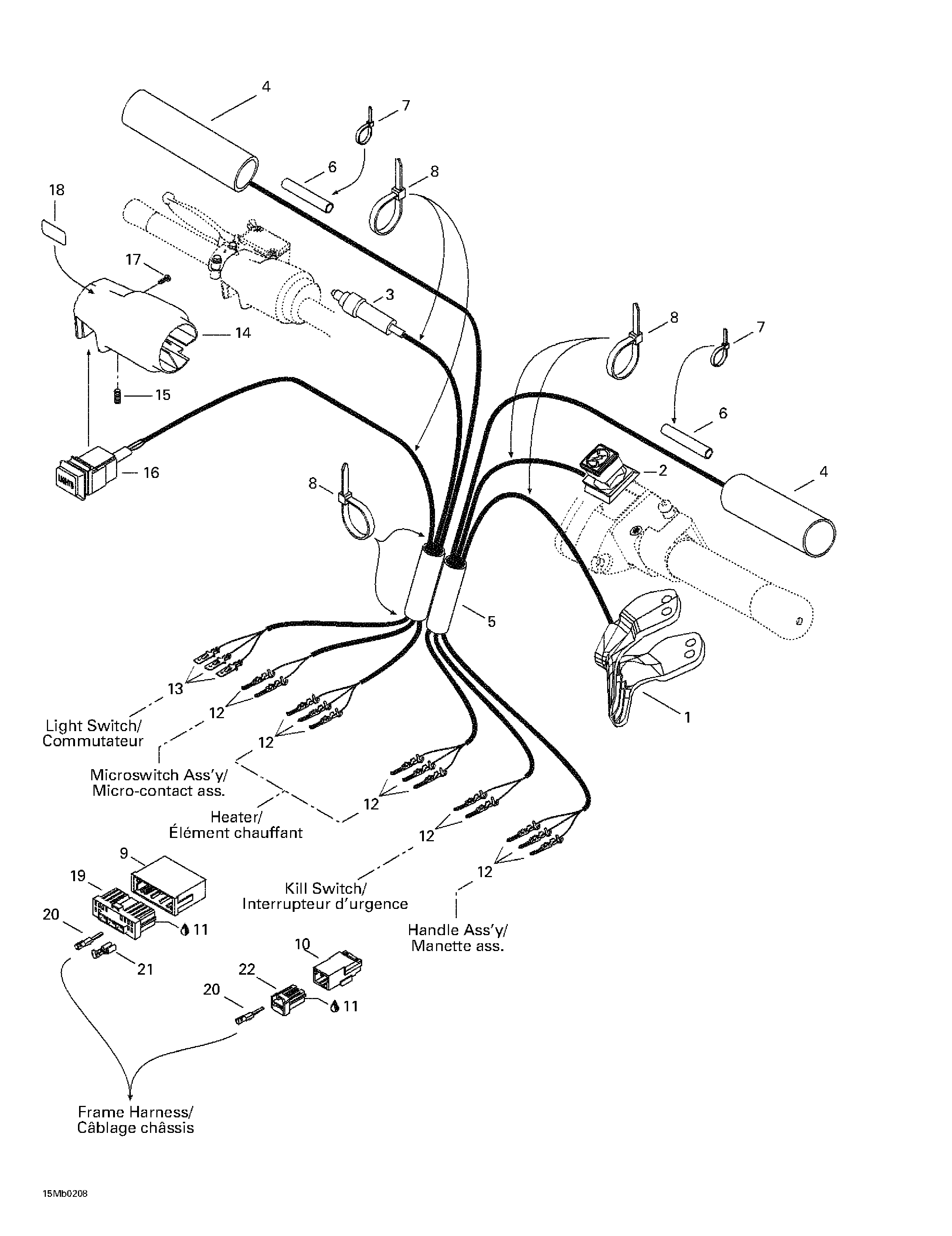

07- Steering System для BRP Ski-Doo Legend 380F/500F - 2002

  • №
    Артикул
    Название
  • 1
    512059145 Heat Throttle Handle (30 mm). MX Z 380 F. Legend 380 F.
    Heat Throttle Handle (30 mm). MX Z 380 F. Legend 380 F.
  • 512059144 Heat Throttle Handle (34 mm). MX Z 500 F. Legend 500 F.
    Heat Throttle Handle (34 mm). MX Z 500 F. Legend 500 F.
  • 2
    515175410 Kill Switch
    Kill Switch
  • 3
    507032318 Brake Switch. MX Z 380 F. Legend 380 F.
    Brake Switch. MX Z 380 F. Legend 380 F.
  • 507032334 Microswitch. MX Z 500 F. Legend 500 F.
    Microswitch. MX Z 500 F. Legend 500 F.
  • 4
    515175682 Heating Element. MX Z 380 F. MX Z 500 F.
    Heating Element. MX Z 380 F. MX Z 500 F.
  • 515175657 Heating Element. Legend 380 F. Legend 500 F.
    Heating Element. Legend 380 F. Legend 500 F.
  • 5
    515175314 Low Temperature Tubing 5/8''
    Low Temperature Tubing 5/8''
  • 6
    515175332 Low Temperature Tubing 1/4''
    Low Temperature Tubing 1/4''
  • 7
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 8
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 9
    515175352 Male Terminal Housing (13 Circuits)
    Male Terminal Housing (13 Circuits)
  • 10
    515175494 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 11
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 12
    515175232 Male Terminal
    Male Terminal
  • 13
    515175273 Male Terminal
    Male Terminal
  • 14
    515175696 Brake Housing. MX Z 500 F. Legend 500 F.
    Brake Housing. MX Z 500 F. Legend 500 F.
  • 15
    414440800 Set Screw M8 x 10. MX Z 500 F. Legend 500 F.
    Set Screw M8 x 10. MX Z 500 F. Legend 500 F.
  • 16
    515175390 Light Switch. MX Z 500 F. Legend 500 F.
    Light Switch. MX Z 500 F. Legend 500 F.
  • 17
    250000022 Phillips Screw. MX Z 500 F. Legend 500 F.
    Phillips Screw. MX Z 500 F. Legend 500 F.
  • 18
    415025500 Switch Decal. MX Z 500 F. Legend 500 F.
    Switch Decal. MX Z 500 F. Legend 500 F.
  • 19
    515175350 Female Terminal Housing (13 Circuits)
    Female Terminal Housing (13 Circuits)
  • 20
    515175231 Female Terminal
    Female Terminal
  • 21
    515175282 Female Terminal
    Female Terminal
  • 22
    515175495 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
