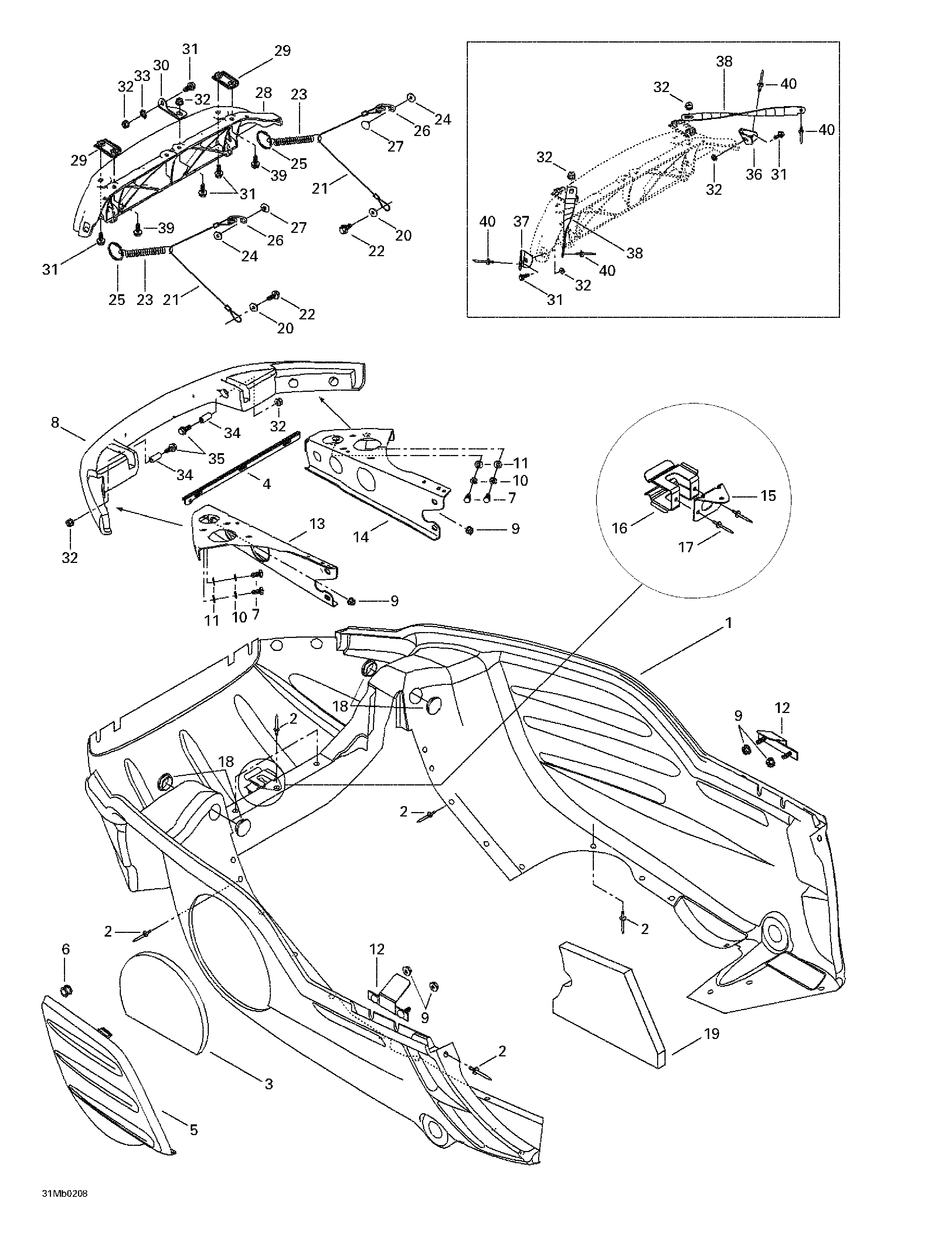

09- Bottom Pan для BRP Ski-Doo Legend 380F/500F - 2002

  • №
    Артикул
    Название
  • 1
    502006633 Bottom Pan (Black, B-160). MX Z 380 F. MX Z 500 F.
    Bottom Pan (Black, B-160). MX Z 380 F. MX Z 500 F.
  • 502006632 Bottom Pan (Yellow, B-190). MX Z 380 F. MX Z 500 F.
    Bottom Pan (Yellow, B-190). MX Z 380 F. MX Z 500 F.
  • 502006636 Bottom Pan (Full Moon, B-211). Legend 380 F. Legend 500 F.
    Bottom Pan (Full Moon, B-211). Legend 380 F. Legend 500 F.
  • 502006635 Bottom Pan (Blue, B-226). Legend 380 F. Legend 500 F.
    Bottom Pan (Blue, B-226). Legend 380 F. Legend 500 F.
  • 2
    390907700 Pop Rivet 3/16'' (Black, B-160). MX Z 380 F. MX Z 500 F.
    Pop Rivet 3/16'' (Black, B-160). MX Z 380 F. MX Z 500 F.
  • 390910200 Pop Rivet 3/16'' (Yellow, B-190). MX Z 380 F. MX Z 500 F.
    Pop Rivet 3/16'' (Yellow, B-190). MX Z 380 F. MX Z 500 F.
  • 293150068 Pop Rivet 3/16'' (Full Moon, B-211). Legend 380 F. Legend 500 F.
    Pop Rivet 3/16'' (Full Moon, B-211). Legend 380 F. Legend 500 F.
  • 293150083 Pop Rivet 3/16'' (Blue, B-226). Legend 380 F. Legend 500 F.
    Pop Rivet 3/16'' (Blue, B-226). Legend 380 F. Legend 500 F.
  • 3
    502006559 Bottom Pan Door Foam
    Bottom Pan Door Foam
  • 4
    502006647 Bottom Pan Reinforcement
    Bottom Pan Reinforcement
  • 5
    502006506 Bottom Pan Door (Black, B-160). MX Z 380 F. MX Z 500 F.
    Bottom Pan Door (Black, B-160). MX Z 380 F. MX Z 500 F.
  • 502006511 Bottom Pan Door (Yellow) B-190. MX Z 380 F. MX Z 500 F.
    Bottom Pan Door (Yellow) B-190. MX Z 380 F. MX Z 500 F.
  • 502006591 Bottom Pan Door (Full Moon, B-211). Legend 380 F. Legend 500 F.
    Bottom Pan Door (Full Moon, B-211). Legend 380 F. Legend 500 F.
  • 502006641 Bottom Pan Door (Blue, B-226). Legend 380 F. Legend 500 F.
    Bottom Pan Door (Blue, B-226). Legend 380 F. Legend 500 F.
  • 6
    414036300 Grommet
    Grommet
  • 7
    207161444 Hex. Screw M6 x 14
    Hex. Screw M6 x 14
  • 8
    502006536 Bumper (Black, B-160). MX Z 380 F. MX Z 500 F.
    Bumper (Black, B-160). MX Z 380 F. MX Z 500 F.
  • 502006535 Bumper (Yellow, B-190). MX Z 380 F. MX Z 500 F.
    Bumper (Yellow, B-190). MX Z 380 F. MX Z 500 F.
  • 502006592 Bumper (Full Moon, B-211). Legend 380 F. Legend 500 F.
    Bumper (Full Moon, B-211). Legend 380 F. Legend 500 F.
  • 502006642 Bumper (Blue, B-226). Legend 380 F. Legend 500 F.
    Bumper (Blue, B-226). Legend 380 F. Legend 500 F.
  • 9
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 10
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 11
    224061121 Flat Washer
    Flat Washer
  • 12
    502006645 Bracket
    Bracket
  • 13
    502006597 L.H. Support
    L.H. Support
  • 14
    502006596 R.H. Support
    R.H. Support
  • 15
    502006599 Belt Support
    Belt Support
  • 16
    517281905 Bracket
    Bracket
  • 17
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    414916600 Nylon Cap
    Nylon Cap
  • 19
    502006558 Bottom Foam
    Bottom Foam
  • 20
    391301600 Washer
    Washer
  • 21
    415093900 Retainer Cable
    Retainer Cable
  • 23
    415043300 Spring
    Spring
  • 24
    517124300 Washer
    Washer
  • 25
    415058300 Ring
    Ring
  • 26
    517262800 Bracket
    Bracket
  • 27
    390409600 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 28
    517302631 Hinge
    Hinge
  • 29
    517302176 Hinge Side Plate
    Hinge Side Plate
  • 30
    517302045 Hinge Center Plate
    Hinge Center Plate
  • 31
    207661684 Hex. Flanged Screw M6 x 16
    Hex. Flanged Screw M6 x 16
  • 32
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 33
    250200000 Serrated Lock Washer 6 mm
    Serrated Lock Washer 6 mm
  • 34
    517302179 Bushing
    Bushing
  • 35
    207663544 Hex. Flanged Screw M6 x 35
    Hex. Flanged Screw M6 x 35
  • 36
    517302254 R.H. Corner Support
    R.H. Corner Support
  • 37
    517302255 L.H. Corner Support
    L.H. Corner Support
  • 38
    517302256 Hood Clamp
    Hood Clamp
  • 39
    207662544 Hex. Flanged Screw M6 x 25
    Hex. Flanged Screw M6 x 25
  • 40
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
