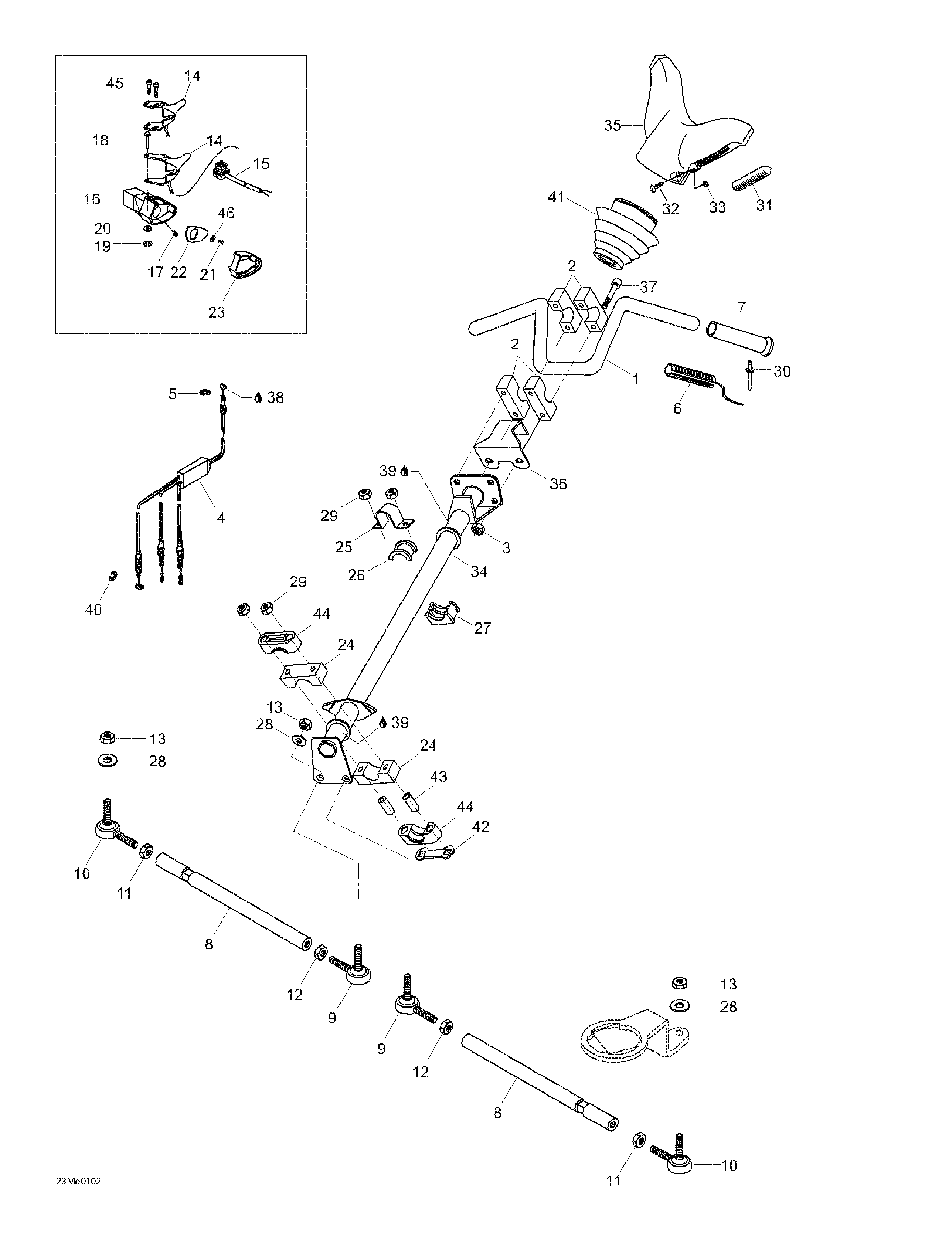

07- Steering System для BRP Ski-Doo Skandic 500F/600 - 2001

  • №
    Артикул
    Название
  • 1
    M529751 Handle Bar
    Handle Bar
  • 2
    M548448 Steering Clamp
    Steering Clamp
  • 3
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 4
    M5244975 Throttle Cable. Skandic 500F. Skandic 500F (SWT).
    Throttle Cable. Skandic 500F. Skandic 500F (SWT).
  • M5246328 Throttle Cable. Skandic 600.
    Throttle Cable. Skandic 600.
  • 5
    M31038 Circlip
    Circlip
  • 6
    M544345 Heating Grip Kit
    Heating Grip Kit
  • 7
    M5340464 Grip
    Grip
  • 8
    M548983 Tie Rod R.H
    Tie Rod R.H
  • M5441066 Tie Rod L.H
    Tie Rod L.H
  • 9
    414768100 L.H. Ball Joint
    L.H. Ball Joint
  • 10
    414768000 R.H. Ball Joint
    R.H. Ball Joint
  • 11
    M33019 Nut R.H
    Nut R.H
  • 12
    M33017 Nut L.H
    Nut L.H
  • 13
    M33023 Nut
    Nut
  • 14
    M5442276 Heat Throttle Handle. Skandic 500F. Skandic 500F (SWT).
    Heat Throttle Handle. Skandic 500F. Skandic 500F (SWT).
  • M5341801 Heat Throttle Handle. Skandic 600.
    Heat Throttle Handle. Skandic 600.
  • 15
    414612700 Kill Switch
    Kill Switch
  • 16
    572086700 Throttle Handle Housing. Skandic 500F. Skandic 500F (SWT).
    Throttle Handle Housing. Skandic 500F. Skandic 500F (SWT).
  • 572028600 Throttle Handle Housing. Skandic 600.
    Throttle Handle Housing. Skandic 600.
  • 17
    414440800 Set Screw M8 x 10
    Set Screw M8 x 10
  • 18
    414438700 Pin. Skandic 500F. Skandic 500F (SWT).
    Pin. Skandic 500F. Skandic 500F (SWT).
  • 19
    414439000 Circlip. Skandic 500F. Skandic 500F (SWT).
    Circlip. Skandic 500F. Skandic 500F (SWT).
  • 20
    414438900 Washer. Skandic 500F. Skandic 500F (SWT).
    Washer. Skandic 500F. Skandic 500F (SWT).
  • 21
    414473200 Screw
    Screw
  • 22
    572099400 Plate. Skandic 500F. Skandic 500F (SWT).
    Plate. Skandic 500F. Skandic 500F (SWT).
  • 23
    572044600 Throttle Adaptor
    Throttle Adaptor
  • 24
    M5343947 Bushing Ass'y. Skandic 500F. Skandic 500F (SWT).
    Bushing Ass'y. Skandic 500F. Skandic 500F (SWT).
  • 25
    M5343381 Retaining Support
    Retaining Support
  • 26
    572064500 Bushing
    Bushing
  • 27
    572064400 Bushing
    Bushing
  • 28
    M20015 Lock Washer
    Lock Washer
  • 29
    M33201 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 30
    M36005 Rivet
    Rivet
  • 31
    572023900 Key Way
    Key Way
  • 32
    M40156 Screw
    Screw
  • 33
    M33062 Nut M5
    Nut M5
  • 34
    M5244297 Main Tube. Skandic 500F. Skandic 600.
    Main Tube. Skandic 500F. Skandic 600.
  • M5245968 Main Tube. Skandic 500F (SWT).
    Main Tube. Skandic 500F (SWT).
  • 35
    572023800 Steering Padding
    Steering Padding
  • 36
    M5444196 Support
    Support
  • 37
    M40286 Socket Head Screw M8 x 45
    Socket Head Screw M8 x 45
  • 38
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 39
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 40
    M31035 Circlip
    Circlip
  • 41
    M539033 Bellow. Skandic 500F (SWT).
    Bellow. Skandic 500F (SWT).
  • 42
    506150600 Stopper Plate. Skandic 600.
    Stopper Plate. Skandic 600.
  • 43
    506150500 Housing Bushing. Skandic 600.
    Housing Bushing. Skandic 600.
  • 44
    506150400 Half Bushing. Skandic 600.
    Half Bushing. Skandic 600.
  • 45
    732601143 Shoulder Screw. Skandic 600.
    Shoulder Screw. Skandic 600.
  • 46
    M20026 Washer. Skandic 600.
    Washer. Skandic 600.
