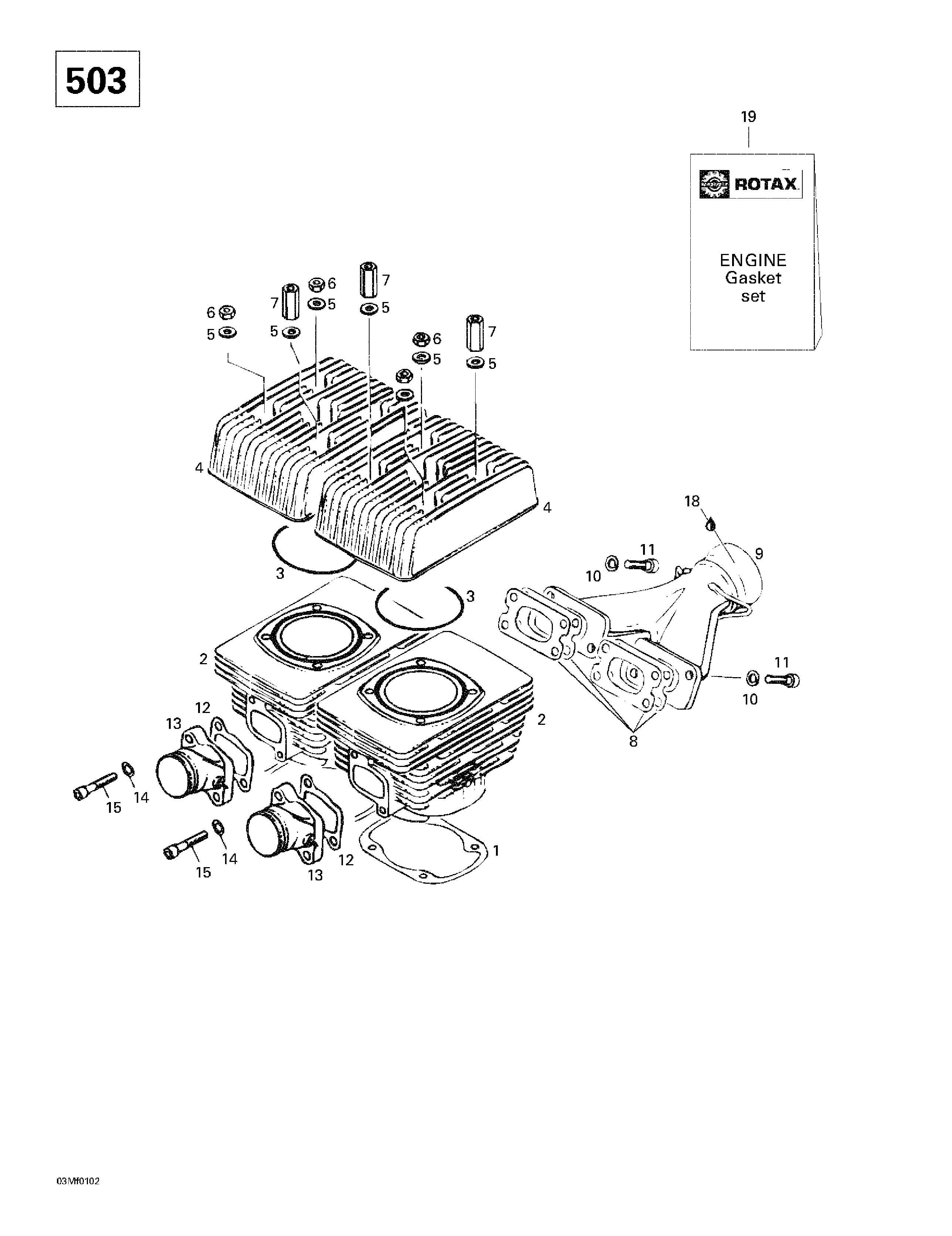

01- Cylinder, Exhaust Manifold (503) для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1420831858 Gasket 0.4 mm. Skandic 500F. Skandic 500F (SWT).Gasket 0.4 mm. Skandic 500F. Skandic 500F (SWT).
-
2420923417 Cylinder with sleeve. Skandic 500F. Skandic 500F (SWT).Cylinder with sleeve. Skandic 500F. Skandic 500F (SWT).
-
3293300026 O-Ring. Skandic 500F. Skandic 500F (SWT).O-Ring. Skandic 500F. Skandic 500F (SWT).
-
4420923590 Cylinder head. Skandic 500F. Skandic 500F (SWT).Cylinder head. Skandic 500F. Skandic 500F (SWT).
-
5420250311 Washer 8.4 mm. Skandic 500F. Skandic 500F (SWT).Washer 8.4 mm. Skandic 500F. Skandic 500F (SWT).
-
6232081414 Nut M8. Skandic 500F. Skandic 500F (SWT).Nut M8. Skandic 500F. Skandic 500F (SWT).
-
7420842203 Distance Nut M8 x 47. Skandic 500F. Skandic 500F (SWT).Distance Nut M8 x 47. Skandic 500F. Skandic 500F (SWT).
-
8420831849 Gasket 1.0 mm. Skandic 500F. Skandic 500F (SWT).Gasket 1.0 mm. Skandic 500F. Skandic 500F (SWT).
-
9M5242517 Exhaust Manifold Ass'y. Skandic 500F. Skandic 500F (SWT).Exhaust Manifold Ass'y. Skandic 500F. Skandic 500F (SWT).
-
10234181401 Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).
-
11M40135 Socket Head Screw M8 X 30. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M8 X 30. Skandic 500F. Skandic 500F (SWT).
-
12420831867 Intake Gasket 1.0 mm. Skandic 500F. Skandic 500F (SWT).Intake Gasket 1.0 mm. Skandic 500F. Skandic 500F (SWT).
-
13420867741 Intake Manifold. Skandic 500F. Skandic 500F (SWT).Intake Manifold. Skandic 500F. Skandic 500F (SWT).
-
14420945752 Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 8 mm. Skandic 500F. Skandic 500F (SWT).
-
15420840681 Socket Head Screw M8 x 40. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M8 x 40. Skandic 500F. Skandic 500F (SWT).
-
16420994238 Engine Gasket Set. Skandic 500F. Skandic 500F (SWT).Engine Gasket Set. Skandic 500F. Skandic 500F (SWT).
-
17293800023 Loctite 767, Antiseize Lubricant, 454 gr. Skandic 500F. Skandic 500F (SWT).Loctite 767, Antiseize Lubricant, 454 gr. Skandic 500F. Skandic 500F (SWT).
