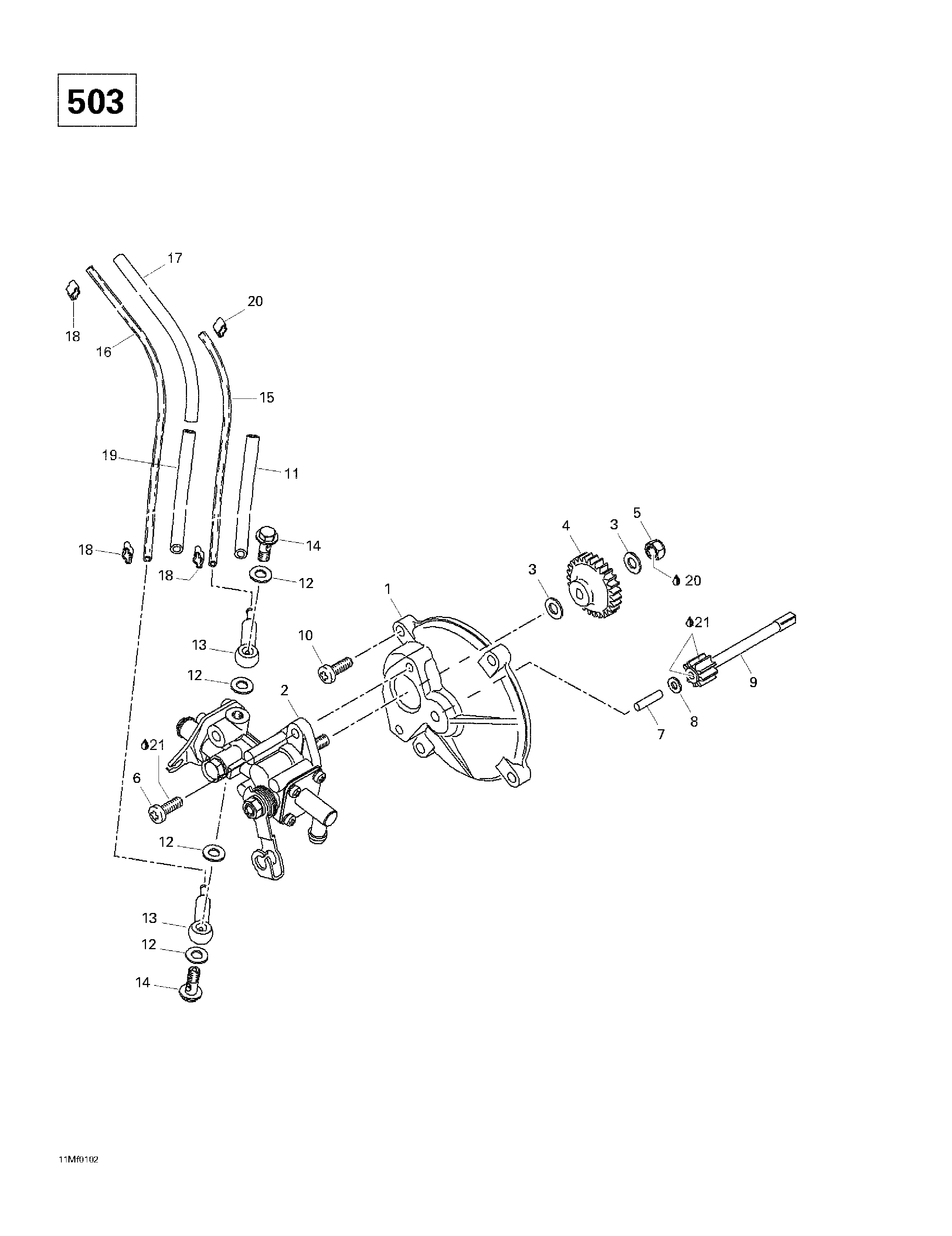

02- Oil Injection System (503) для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1420910160 Pump Mounting Flange. Skandic 500F. Skandic 500F (SWT).Pump Mounting Flange. Skandic 500F. Skandic 500F (SWT).
-
2420887998 Oil Pump Ass'y. Skandic 500F. Skandic 500F (SWT).Oil Pump Ass'y. Skandic 500F. Skandic 500F (SWT).
-
3420927945 Washer. Skandic 500F. Skandic 500F (SWT).Washer. Skandic 500F. Skandic 500F (SWT).
-
4420935930 Oil Pump Gear (27 Tooth). Skandic 500F. Skandic 500F (SWT).Oil Pump Gear (27 Tooth). Skandic 500F. Skandic 500F (SWT).
-
5232561414 Elastic Stop Nut M6. Skandic 500F. Skandic 500F (SWT).Elastic Stop Nut M6. Skandic 500F. Skandic 500F (SWT).
-
6420841970 Self Tapping Screw M5.5 x 16. Skandic 500F. Skandic 500F (SWT).Self Tapping Screw M5.5 x 16. Skandic 500F. Skandic 500F (SWT).
-
7420832260 Needle Pin B4 x 17.8. Skandic 500F. Skandic 500F (SWT).Needle Pin B4 x 17.8. Skandic 500F. Skandic 500F (SWT).
-
8420244073 Washer 4.3 mm. Skandic 500F. Skandic 500F (SWT).Washer 4.3 mm. Skandic 500F. Skandic 500F (SWT).
-
9420935970 Gear (9 Tooth). Skandic 500F. Skandic 500F (SWT).Gear (9 Tooth). Skandic 500F. Skandic 500F (SWT).
-
10420841970 Self Tapping Screw M5.5 x 16. Skandic 500F. Skandic 500F (SWT).Self Tapping Screw M5.5 x 16. Skandic 500F. Skandic 500F (SWT).
-
11420960750 Isolation Line 90 mm (MAG). Skandic 500F. Skandic 500F (SWT).Isolation Line 90 mm (MAG). Skandic 500F. Skandic 500F (SWT).
-
12404146600 Gasket Ring. Skandic 500F. Skandic 500F (SWT).Gasket Ring. Skandic 500F. Skandic 500F (SWT).
-
13420956010 Check Valve Ass'y. Skandic 500F. Skandic 500F (SWT).Check Valve Ass'y. Skandic 500F. Skandic 500F (SWT).
-
14404146800 Banjo Bolt M6 x 16. Skandic 500F. Skandic 500F (SWT).Banjo Bolt M6 x 16. Skandic 500F. Skandic 500F (SWT).
-
15414413800 MAG Side Oil Line 360 mm. Skandic 500F. Skandic 500F (SWT).MAG Side Oil Line 360 mm. Skandic 500F. Skandic 500F (SWT).
-
16414413800 P.T.O Side Oil Line 360 mm. Skandic 500F. Skandic 500F (SWT).P.T.O Side Oil Line 360 mm. Skandic 500F. Skandic 500F (SWT).
-
17420960729 Isolation Line 150 mm (PTO). Skandic 500F. Skandic 500F (SWT).Isolation Line 150 mm (PTO). Skandic 500F. Skandic 500F (SWT).
-
18420853840 Clamp. Skandic 500F. Skandic 500F (SWT).Clamp. Skandic 500F. Skandic 500F (SWT).
-
19420960728 Isolation Line 120 mm (PTO). Skandic 500F. Skandic 500F (SWT).Isolation Line 120 mm (PTO). Skandic 500F. Skandic 500F (SWT).
-
20293800060 Loctite 243, 10 ml. Skandic 500F. Skandic 500F (SWT).Loctite 243, 10 ml. Skandic 500F. Skandic 500F (SWT).
-
21413707000 Molykote 111. Skandic 500F. Skandic 500F (SWT).Molykote 111. Skandic 500F. Skandic 500F (SWT).
