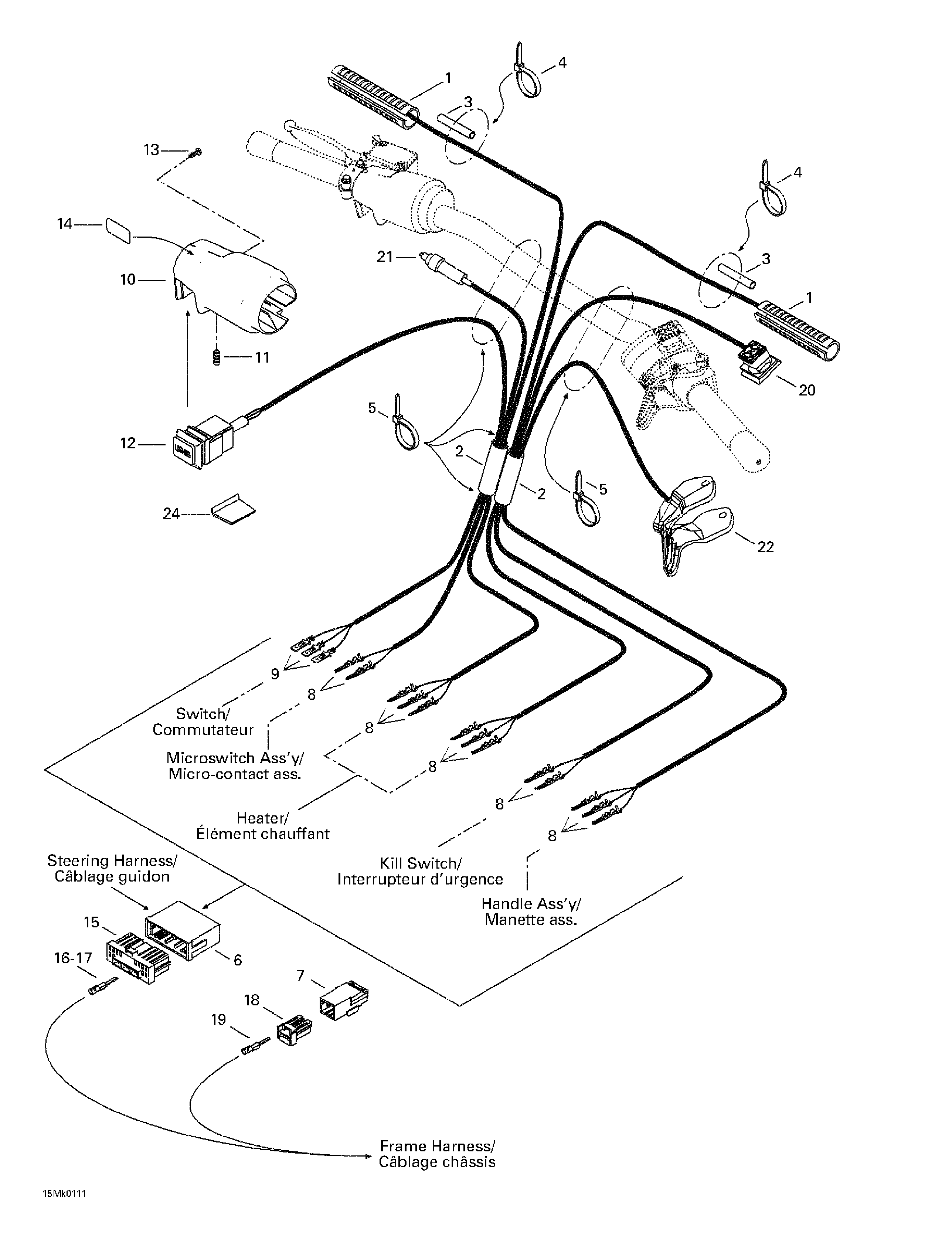

07- Steering System для BRP Ski-Doo MX Z 800 - 2001

  • №
    Артикул
    Название
  • 1
    515175389 Heater
    Heater
  • 2
    515175314 Low Temperature Tubing 5/8''
    Low Temperature Tubing 5/8''
  • 3
    515175332 Low Temperature Tubing 1/4''
    Low Temperature Tubing 1/4''
  • 4
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 5
    414115200 Tie Rap
    Tie Rap
  • 6
    515175352 Male Terminal Housing (13 circuits)
    Male Terminal Housing (13 circuits)
  • 7
    515175494 Male Terminal Housing (3 circuits)
    Male Terminal Housing (3 circuits)
  • 8
    515175232 Male Terminal
    Male Terminal
  • 9
    515175273 Male Terminal
    Male Terminal
  • 10
    515175307 Brake Housing (STD-ADR)
    Brake Housing (STD-ADR)
  • 572079500 Brake Housing (X-EUROPE)
    Brake Housing (X-EUROPE)
  • 11
    414440800 Set Screw M8 x 10
    Set Screw M8 x 10
  • 12
    515175390 Switch
    Switch
  • 13
    250000022 Phillips Screw (STD-ADR)
    Phillips Screw (STD-ADR)
  • 414473200 Screw (X)
    Screw (X)
  • 14
    415025500 Switch Decal
    Switch Decal
  • 15
    515175350 Femelle Terminal Housing (13 circuits)
    Femelle Terminal Housing (13 circuits)
  • 16
    515175231 Femelle Terminal
    Femelle Terminal
  • 17
    515175282 Femelle Terminal
    Femelle Terminal
  • 18
    515175495 Femelle Terminal Housing (3 circuits)
    Femelle Terminal Housing (3 circuits)
  • 19
    515175231 Femelle Terminal
    Femelle Terminal
  • 20
    515175410 Kill Switch
    Kill Switch
  • 21
    507032283 Microswitch Ass'y
    Microswitch Ass'y
  • 22
    512059107 Handle Ass'y 28 mm
    Handle Ass'y 28 mm
  • 23
    293800061 Loctite Black
    Loctite Black
  • 24
    517283800 Bracket (X-EUROPE)
    Bracket (X-EUROPE)
