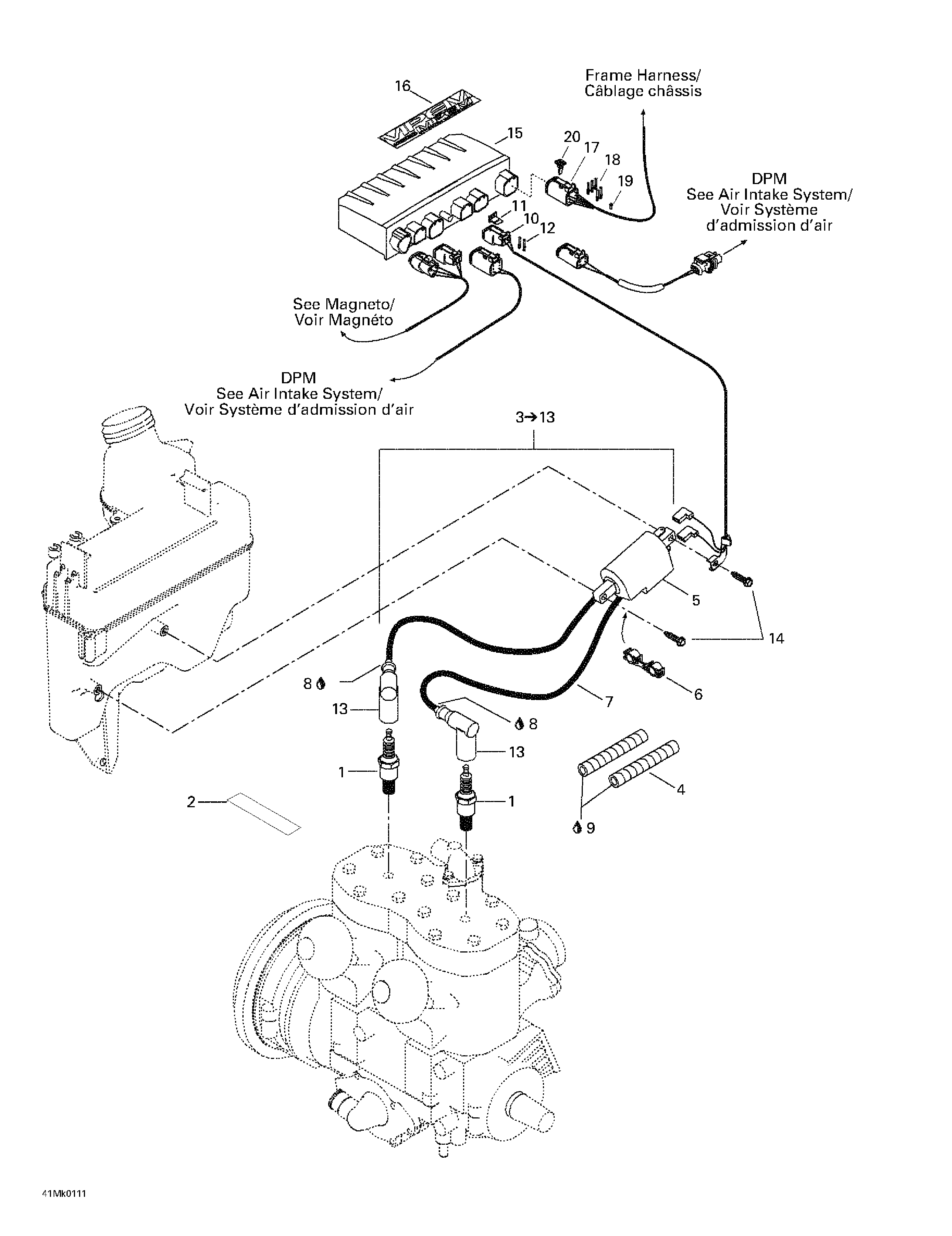

03- Ignition для BRP Ski-Doo MX Z 800 - 2001

  • №
    Артикул
    Название
  • 1
    414961100 Spark Plug (NGK BR9ES)
    Spark Plug (NGK BR9ES)
  • 2
    516000986 Spark plug Decal
    Spark plug Decal
  • 3
    512059377 Ignition Coil Ass'y. Includes 3 - 13.
    Ignition Coil Ass'y. Includes 3 - 13.
  • 4
    512059376 Tubing
    Tubing
  • 5
    512059363 Ignition Coil
    Ignition Coil
  • 6
    410914600 Plastic Clip
    Plastic Clip
  • 7
    512059378 Spark Plug Wire, 380 mm. With Item 13
    Spark Plug Wire, 380 mm. With Item 13
  • 512059379 Spark Plug Wire, 455 mm. With Item 13
    Spark Plug Wire, 455 mm. With Item 13
  • 8
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 9
    293800021 Loctite 495, 3 g
    Loctite 495, 3 g
  • 10
    409207300 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 11
    409207100 Female Lock (2 circuits)
    Female Lock (2 circuits)
  • 12
    278000632 Female Terminal
    Female Terminal
  • 13
    278000237 Spark Plug Protector
    Spark Plug Protector
  • 14
    250000005 Hex. Tapping Screw
    Hex. Tapping Screw
  • 15
    512059431 Calibration Module (X-ADR-EURO)
    Calibration Module (X-ADR-EURO)
  • 512059387 Calibration Module (STD)
    Calibration Module (STD)
  • 16
    516000245 Electrical Box Decal
    Electrical Box Decal
  • 17
    278000736 Female Terminal Housing (6 circuits)
    Female Terminal Housing (6 circuits)
  • 18
    278000632 Female Terminal
    Female Terminal
  • 19
    293000052 Plug
    Plug
  • 20
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
