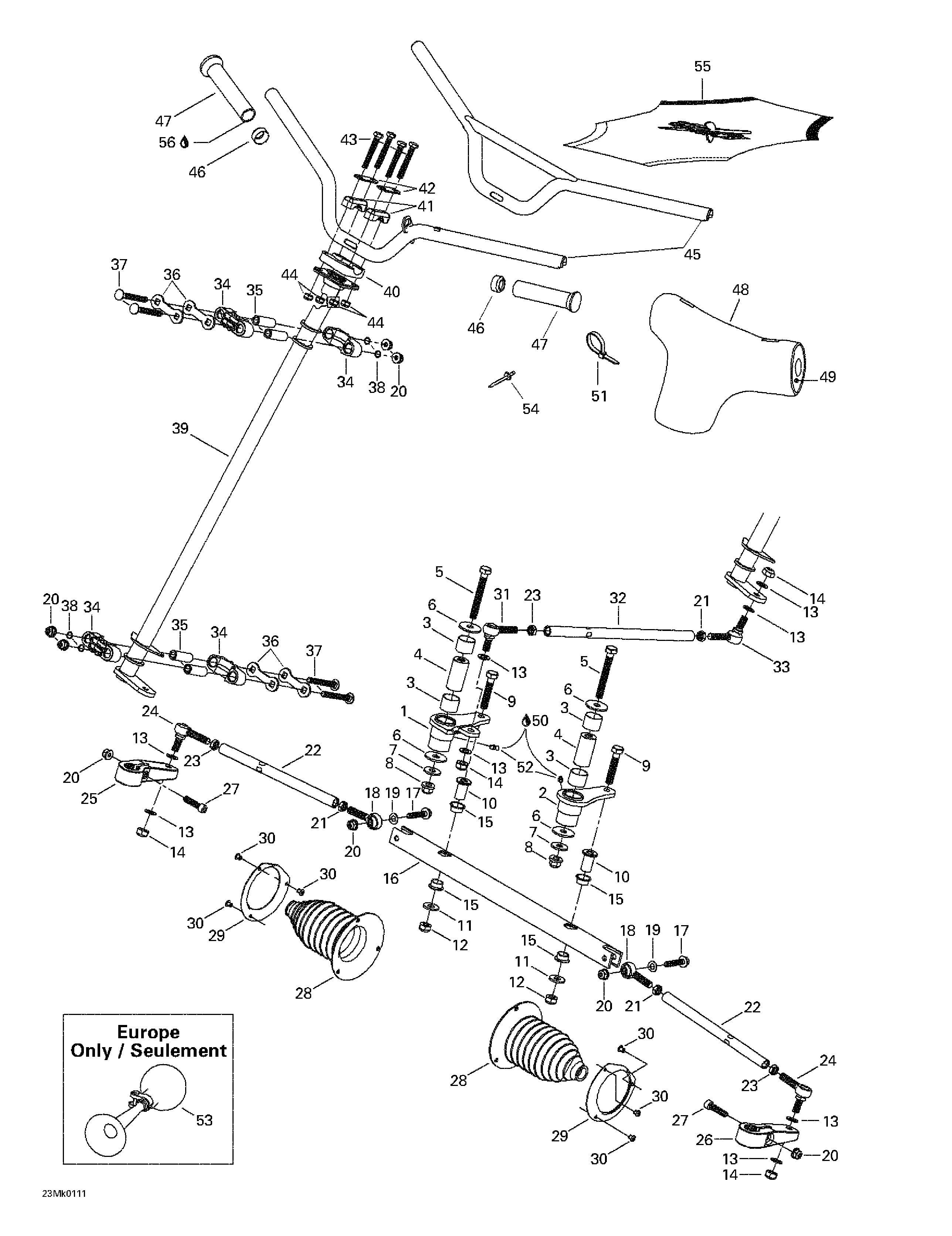

07- Steering System для BRP Ski-Doo MX Z 800 - 2001

  • №
    Артикул
    Название
  • 1
    506146600 R.H. Swivel Arm
    R.H. Swivel Arm
  • 2
    506146700 L.H. Swivel Arm
    L.H. Swivel Arm
  • 3
    506149900 Swivel-Bushing
    Swivel-Bushing
  • 4
    506150100 Swivel-Pivot
    Swivel-Pivot
  • 5
    207008086 Hex. Screw M10 x 80
    Hex. Screw M10 x 80
  • 6
    506150000 Washer 10 mm
    Washer 10 mm
  • 7
    506151251 Washer
    Washer
  • 8
    732610084 Flange Nut M10
    Flange Nut M10
  • 9
    207005544 Hex. Screw M10 x 55
    Hex. Screw M10 x 55
  • 10
    506147300 Pivot-Bar
    Pivot-Bar
  • 11
    224002251 Flat Washer
    Flat Washer
  • 12
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 13
    503175800 Washer
    Washer
  • 14
    232501416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 15
    506150200 Swivel-Bushing
    Swivel-Bushing
  • 16
    506147000 Bar-Swivel
    Bar-Swivel
  • 17
    207684044 Hex. Flange Screw M8 x 40
    Hex. Flange Screw M8 x 40
  • 18
    506151101 L.H. Ball Joint
    L.H. Ball Joint
  • 19
    506151252 Washer
    Washer
  • 20
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 21
    250100016 L.H. Jam Nut M10
    L.H. Jam Nut M10
  • 22
    506151190 Tie-Rod
    Tie-Rod
  • 23
    732610010 R.H. Jam Nut M10
    R.H. Jam Nut M10
  • 24
    415012400 Ball Joint
    Ball Joint
  • 25
    506145800 R.H. Steering Arm
    R.H. Steering Arm
  • 26
    506145900 L.H. Steering Arm
    L.H. Steering Arm
  • 27
    205083544 Socket Head Screw M8 x 35
    Socket Head Screw M8 x 35
  • 28
    570070500 Tie-Rod Cap
    Tie-Rod Cap
  • 29
    506151100 Retainer Ring
    Retainer Ring
  • 30
    390402300 Pop Rivet
    Pop Rivet
  • 31
    414768000 R.H. Ball Joint
    R.H. Ball Joint
  • 32
    506150300 Inside Tie-Rod
    Inside Tie-Rod
  • 33
    414768100 L.H. Ball Joint
    L.H. Ball Joint
  • 34
    506150400 Half Housing
    Half Housing
  • 35
    506150500 Housing Bushing
    Housing Bushing
  • 36
    506150600 Stopper Plate
    Stopper Plate
  • 37
    207787044 Carriage Bolt M8 x 70
    Carriage Bolt M8 x 70
  • 38
    506151140 O-Ring
    O-Ring
  • 39
    506147100 Main Tube
    Main Tube
  • 40
    277000142 Steering Clamp
    Steering Clamp
  • 41
    414491600 Steering Support
    Steering Support
  • 42
    506151196 Reinforcement
    Reinforcement
  • 43
    207085544 Hex. Screw M8 x 55
    Hex. Screw M8 x 55
  • 44
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 45
    506151138 Handle Bar (STD-ADR). Standard. Adrenaline.
    Handle Bar (STD-ADR). Standard. Adrenaline.
  • 506151387 Handle Bar (X-EUROPE). X. Europe.
    Handle Bar (X-EUROPE). X. Europe.
  • 46
    572081900 Handle Bar End (STD-ADR)
    Handle Bar End (STD-ADR)
  • 47
    572100500 Handle Grip (STD-ADR). Standard. Adrenaline.
    Handle Grip (STD-ADR). Standard. Adrenaline.
  • M5340464 Handle Grip (X-EUROPE). X. Europe.
    Handle Grip (X-EUROPE). X. Europe.
  • 48
    506151263 Cover (STD-ADR). Standard. Adrenaline.
    Cover (STD-ADR). Standard. Adrenaline.
  • 49
    506151262 Foam (STD-ADR). Standard. Adrenaline.
    Foam (STD-ADR). Standard. Adrenaline.
  • 50
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 51
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 52
    408200700 Grease Fitting
    Grease Fitting
  • 53
    415040700 Horn (EUROPE). Europe.
    Horn (EUROPE). Europe.
  • 54
    390403600 Pop Rivet (X-EUROPE). X. Europe.
    Pop Rivet (X-EUROPE). X. Europe.
  • 55
    506151358 Pad Steering (X-EUROPE). X. Europe. (Foam included)
    Pad Steering (X-EUROPE). X. Europe. (Foam included)
  • 56
    293800021 Loctite 495, 3g. X. Europe.
    Loctite 495, 3g. X. Europe.
