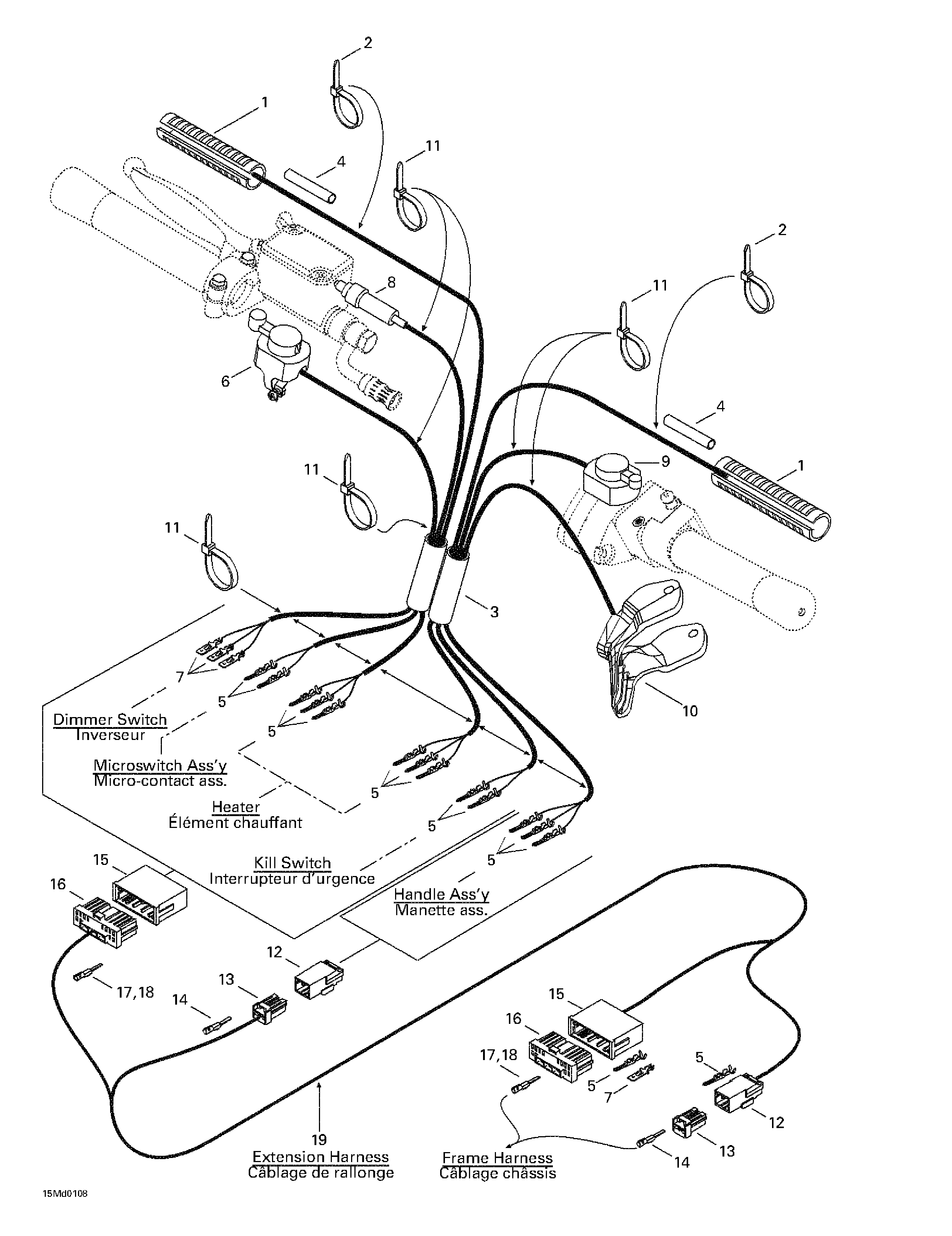

07- Steering System для BRP Ski-Doo MX Z X 440 LC - 2001

  • №
    Артикул
    Название
  • 1
    515175389 Heater
    Heater
  • 2
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 3
    515175314 Low Temp. Tubing (Vinyl)
    Low Temp. Tubing (Vinyl)
  • 4
    515175332 Low Temp. Tubing (Vinyl)
    Low Temp. Tubing (Vinyl)
  • 5
    515175232 Male Terminal
    Male Terminal
  • 6
    515175391 Dimmer Switch
    Dimmer Switch
  • 7
    515175273 Male Terminal
    Male Terminal
  • 8
    515175571 Microswitch Ass'y
    Microswitch Ass'y
  • 9
    410105500 Kill Switch
    Kill Switch
  • 10
    512059152 Heated Handle Ass'y (34 mm)
    Heated Handle Ass'y (34 mm)
  • 11
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 12
    515175494 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 13
    515175495 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 14
    515175231 Female Terminal
    Female Terminal
  • 15
    515175352 Male Terminal Housing (13 Circuits)
    Male Terminal Housing (13 Circuits)
  • 16
    515175350 Female Terminal Housing (13 Circuits)
    Female Terminal Housing (13 Circuits)
  • 17
    515175231 Female Terminal
    Female Terminal
  • 18
    515175282 Female Terminal
    Female Terminal
  • 19
    515175619 Extension Harness
    Extension Harness
