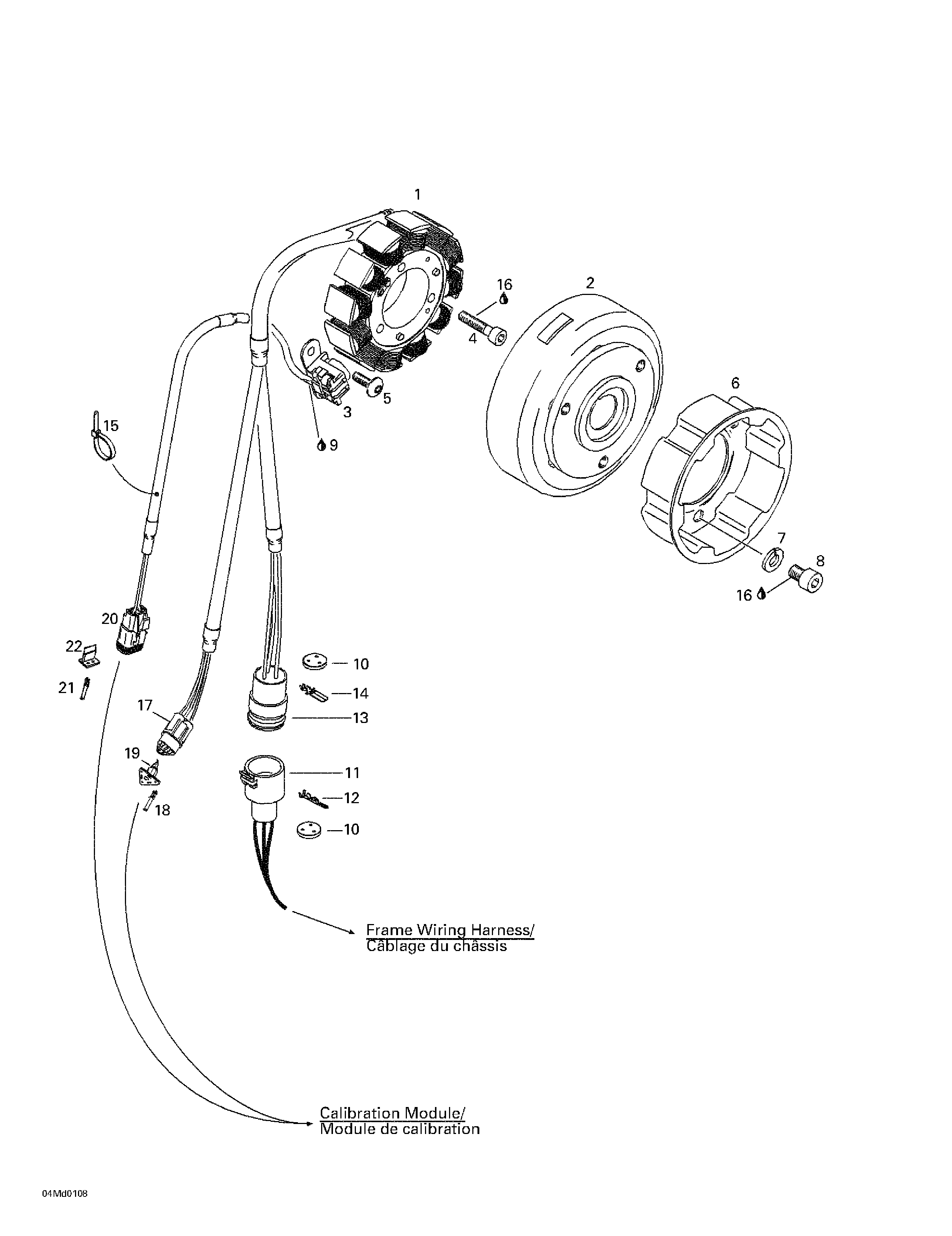

03- Magneto 12V 290W для BRP Ski-Doo MX Z X 440 LC - 2001

  • №
    Артикул
    Название
  • 1
    410922931 Stator Plate Ass'y
    Stator Plate Ass'y
  • 2
    410922926 Flywheel
    Flywheel
  • 3
    410922925 Pickup Ass'y
    Pickup Ass'y
  • 4
    420840886 Socket Head Screw M6 x 30
    Socket Head Screw M6 x 30
  • 5
    420640321 Screw M5 x 16
    Screw M5 x 16
  • 6
    420852419 Pulley Starting
    Pulley Starting
  • 7
    420945752 Lock Washer 8 mm
    Lock Washer 8 mm
  • 8
    420841520 Socket Head Screw M8 x 12
    Socket Head Screw M8 x 12
  • 10
    409208500 Seal
    Seal
  • 11
    409207900 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 12
    409011100 Male Terminal
    Male Terminal
  • 13
    409208200 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 14
    409011900 Female Terminal
    Female Terminal
  • 15
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 16
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 18
    409015100 Female Terminal
    Female Terminal
  • 20
    409207300 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 21
    278000632 Female Terminal
    Female Terminal
  • 22
    409207100 Female Lock (2 Circuits)
    Female Lock (2 Circuits)
