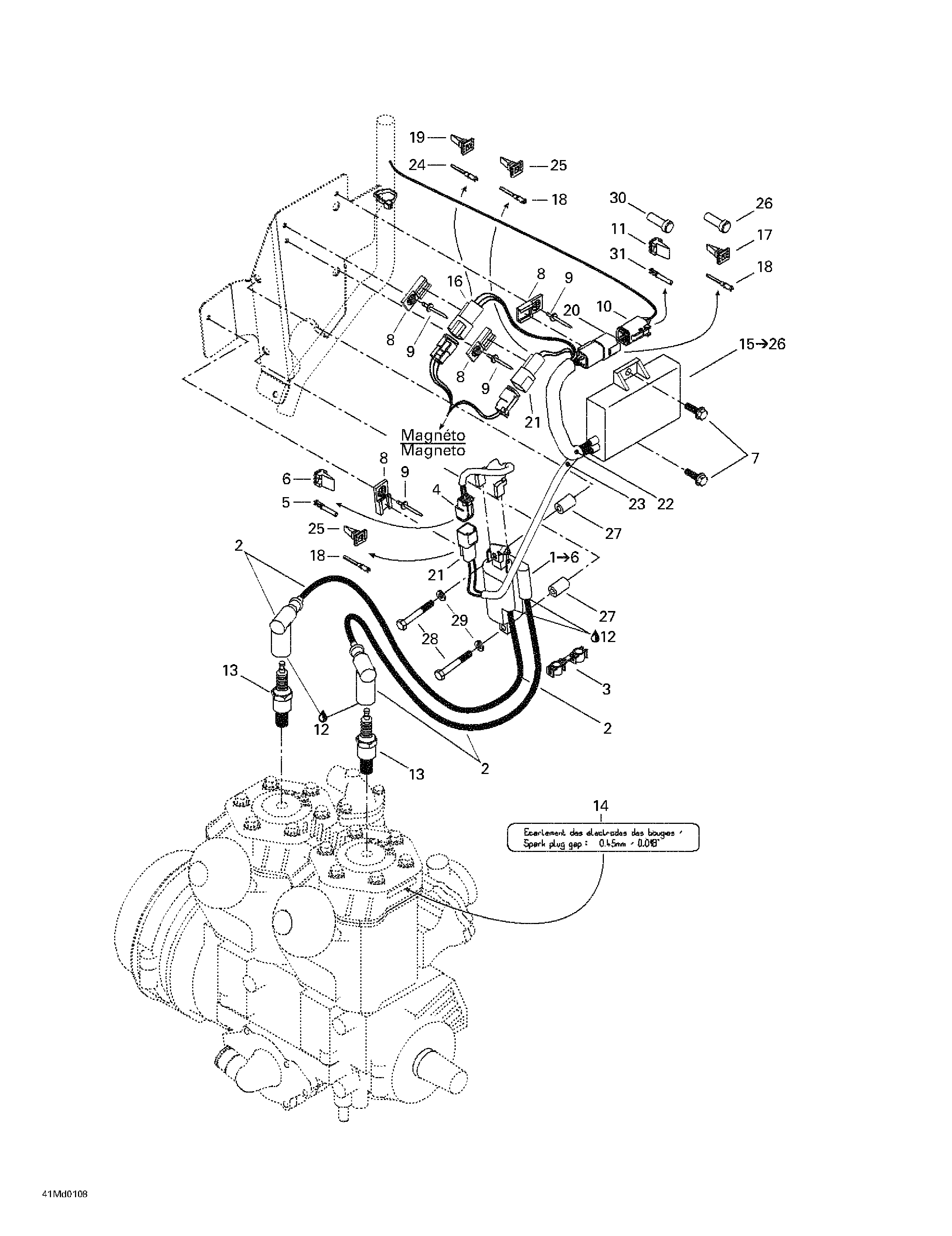

03- Ignition для BRP Ski-Doo MX Z X 440 LC - 2001

№

Артикул

Название
1

512059363 Ignition Coil. Includes 4,5,6.

Ignition Coil. Includes 4,5,6.
2

512059406 Cable Ass'y 515 mm

Cable Ass'y 515 mm
512059407 Cable Ass'y 595 mm

Cable Ass'y 595 mm
3

410914600 Clip (Package of 5)

Clip (Package of 5)
4

409207300 Female Terminal Housing (2 Circuits)

Female Terminal Housing (2 Circuits)
5

278000632 Female Terminal

Female Terminal
6

409207100 Female Lock (2 Circuits)

Female Lock (2 Circuits)
7

207662044 Hex. Flanged Screw M6 x 20

Hex. Flanged Screw M6 x 20
8

270000141 Clip

Clip
10

278000736 Female Terminal Housing (6 Circuits)

Female Terminal Housing (6 Circuits)
11

278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
12

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
13

414961100 Spark Plug (NGK BR9ES)

Spark Plug (NGK BR9ES)
14

516000986 Spark Plug Decal

Spark Plug Decal
15

512059433 Calibration Module. Includes 15 - 26.

Calibration Module. Includes 15 - 26.
16

710000045 Male Terminal Housing (4 Circuits)

Male Terminal Housing (4 Circuits)
17

278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
18

278000631 Male Terminal

Male Terminal
19

710000046 Male Lock (4 Circuits)

Male Lock (4 Circuits)
20

270000137 Male Terminal Housing (6 Circuits)

Male Terminal Housing (6 Circuits)
21

409206900 Male Terminal Housing (2 Circuits)

Male Terminal Housing (2 Circuits)
22

415079900 Tubing 10 mm

Tubing 10 mm
23

515175442 Tubing 6 mm

Tubing 6 mm
24

409014800 Male Terminal

Male Terminal
25

409207500 Male Lock (2 Circuits)

Male Lock (2 Circuits)
26

515175303 Plug

Plug
27

517203200 Spacer

Spacer
28

207064544 Hex. Screw M6 x 45

Hex. Screw M6 x 45
29

234161471 Lock Washer 6 mm

Lock Washer 6 mm
30

293000052 Sealing Cap

Sealing Cap
31

278000632 Female Terminal

Female Terminal
