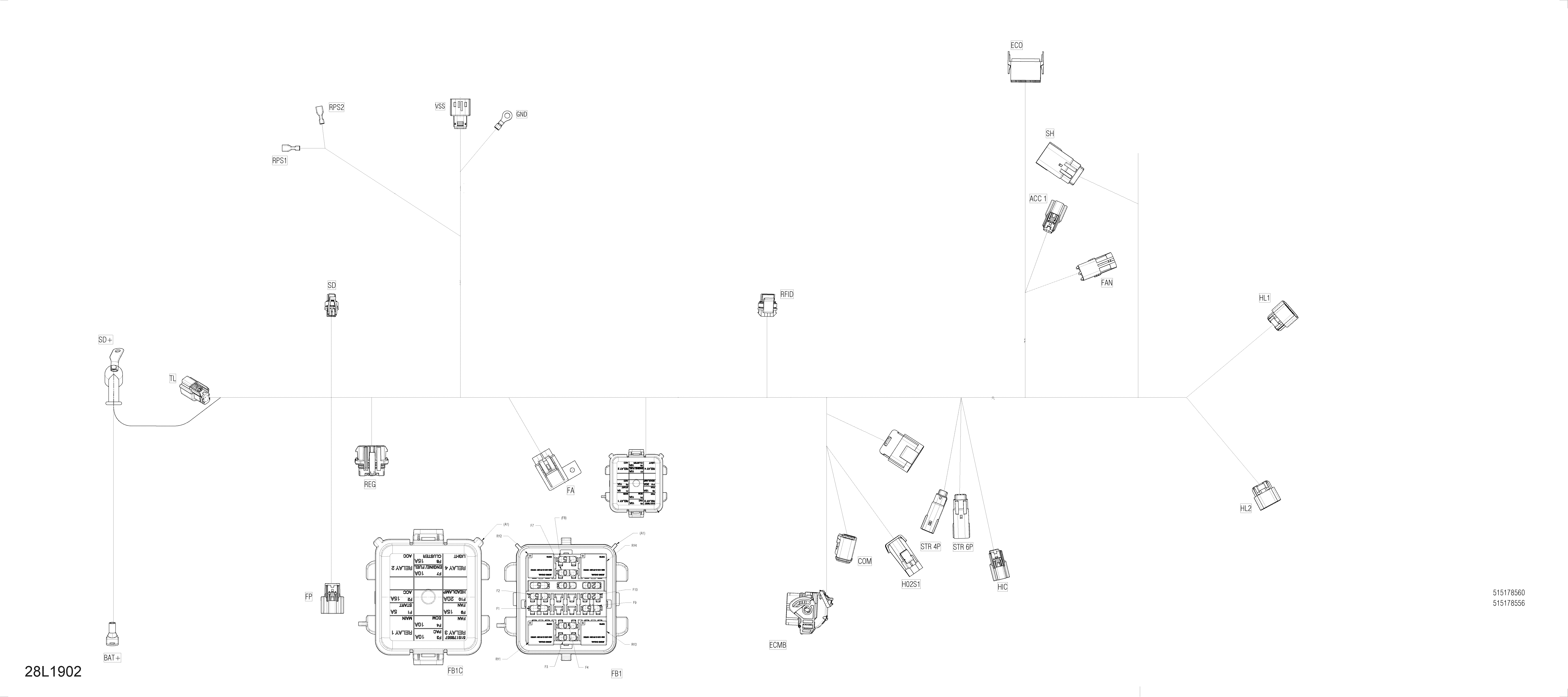

10- Electrical Harness 515178556 для BRP Lynx 003 - XTRIM 900 ACE - 2019
-
№АртикулНазвание
-
3000515178556 Chassis Wiring HarnessChassis Wiring Harness
-
ACC1278002853 2 Circuits Female Housing2 Circuits Female Housing
-
COM710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
COM710002705 LockLock
-
COM710005438 Female TerminalFemale Terminal
-
COM710005439 Female TerminalFemale Terminal
-
ECMB710001591 Cover, 48 positionsCover, 48 positions
-
ECMB710001967 Molex Housing, 48 CircuitsMolex Housing, 48 Circuits
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001727 Female TerminalFemale Terminal
-
ECO515178175 4 Circuits Female Housing4 Circuits Female Housing
-
ECO515178302 Female TerminalFemale Terminal
-
F1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
F10710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F2710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
F3710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F4710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F8710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
F9710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FA710001613 FuseFuse
-
FA278001325 Fuse HolderFuse Holder
-
FA710000357 Female TerminalFemale Terminal
-
FAN278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FAN278000218 Wire SealWire Seal
-
FAN409004300 Male TerminalMale Terminal
-
FB1278003448 Fuse Base Ass'yFuse Base Ass'y
-
FB1278002880 Seal PlugSeal Plug
-
FB1278000218 Wire SealWire Seal
-
FB1278001065 Wire SealWire Seal
-
FB1710000890 Female TerminalFemale Terminal
-
FB1710000918 Female TerminalFemale Terminal
-
FB1278002578 Female TerminalFemale Terminal
-
FB1C515178557 Fuse CoverFuse Cover
-
FB1C710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB1C710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB1C710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
FP515178474 Female HousingFemale Housing
-
GND278001392 Open BarrelOpen Barrel
-
HIC278003535 Female Housing, 4 circuitsFemale Housing, 4 circuits
-
HIC278002860 Sealing CapSealing Cap
-
HL1515178006 Female HousingFemale Housing
-
HL1710001332 Seal WireSeal Wire
-
HL1710001228 TerminalTerminal
-
HL2515178006 Female HousingFemale Housing
-
HL2710001332 Seal WireSeal Wire
-
HL2710001228 TerminalTerminal
-
HO2S1710000992 ClipClip
-
HO2S1710002466 HousingHousing
-
HO2S1710002469 LockLock
-
HO2S1278001482 SealSeal
-
HO2S1710002597 Gold TerminalGold Terminal
-
HO2S1710000736 TerminalTerminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG515175806 Female TerminalFemale Terminal
-
MG710001131 Female TerminalFemale Terminal
-
REG710000879 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
REG710000882 CapCap
-
REG710000881 SealSeal
-
REG710000877 Female TerminalFemale Terminal
-
RFID710001161 HousingHousing
-
RFID710001163 Wire SealWire Seal
-
RFID710001164 Female TerminalFemale Terminal
-
RPS1710000082 Female TerminalFemale Terminal
-
RPS2710000082 Female TerminalFemale Terminal
-
RY1710001778 RelayRelay
-
RY2710001778 RelayRelay
-
RY3710001778 RelayRelay
-
RY4710001778 RelayRelay
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SD+515177214 TerminalTerminal
-
SH515178015 12 Circuits Male Housing12 Circuits Male Housing
-
SH515178013 Male TerminalMale Terminal
-
STR4P515178176 4 Circuits Male Housing4 Circuits Male Housing
-
STR4P515178013 Male TerminalMale Terminal
-
STR6P278002906 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
STR6P515178013 Male TerminalMale Terminal
-
TAS710000992 ClipClip
-
TAS710001231 HousingHousing
-
TAS710001233 SealSeal
-
TAS710001224 TerminalTerminal
-
TL515178346 HousingHousing
-
VSS515178024 HousingHousing
