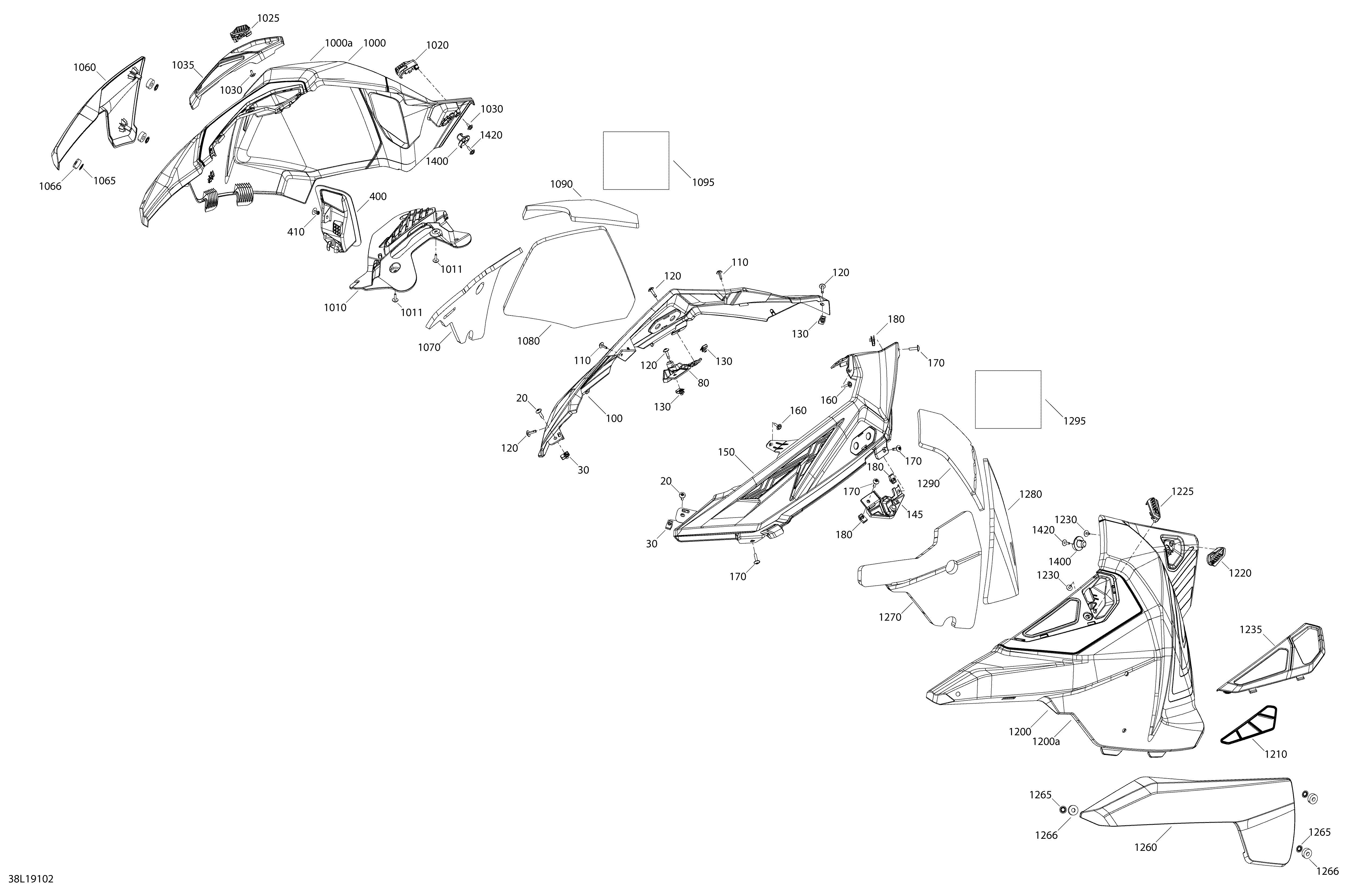

09- Hood - Side Section для BRP Lynx 003 - XTRIM 900 ACE - 2019
-
№АртикулНазвание
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
80517306450 RH Knob PartRH Knob Part
-
100517306067 RH Upper Side PanelRH Upper Side Panel
-
110250000725 Screw M4 X 16Screw M4 X 16
-
120250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
130250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
145517306451 LH Knob PartLH Knob Part
-
150517306069 LH Upper Side PanelLH Upper Side Panel
-
160250000725 Screw M4 X 16Screw M4 X 16
-
170250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
180250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
400517306302 Reverse Lever TrimReverse Lever Trim
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000517306806 RH Side Panel 16'' With Wing Holes. Includes 1000 to 1000aRH Side Panel 16'' With Wing Holes. Includes 1000 to 1000a
-
1000a517306452 RH Side Panel 16'' With OpeningRH Side Panel 16'' With Opening
-
1010517306769 RH GrillRH Grill
-
1011250000725 Screw M4 X 16Screw M4 X 16
-
1020517305773 RH Rear LatchRH Rear Latch
-
1025517305773 RH Rear LatchRH Rear Latch
-
1030250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
1035517306482 RH TrimRH Trim
-
1060517306610 White, RH Air DeflectorWhite, RH Air Deflector
-
1065250100046 Push NutPush Nut
-
1066517306809 Rubber DamperRubber Damper
-
1070517306574 RH Side Panel Central FoamRH Side Panel Central Foam
-
1080517306575 RH Rear Side Panel FoamRH Rear Side Panel Foam
-
1090517306576 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
1095293250047 Neoprene Seal ( 3Meter pack )Neoprene Seal ( 3Meter pack )
-
1200517306807 LH Side Panel 16'' With Wing Holes. Includes 1200 to 1200aLH Side Panel 16'' With Wing Holes. Includes 1200 to 1200a
-
1200a517306453 LH Side Paneal 16''LH Side Paneal 16''
-
1210517306705 LH Air Intake GridLH Air Intake Grid
-
1220517305774 LH Rear LatchLH Rear Latch
-
1225517305774 LH Rear LatchLH Rear Latch
-
1230250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
1235517306481 LH TrimLH Trim
-
1260517306612 White, LH Air DeflectorWhite, LH Air Deflector
-
1265250100046 Push NutPush Nut
-
1266517306809 Rubber DamperRubber Damper
-
1270517306577 LH Central Side Panel FoamLH Central Side Panel Foam
-
1280517306578 LH Rear Side Panel FoamLH Rear Side Panel Foam
-
1290517306579 LH Upper Side Panel FoamLH Upper Side Panel Foam
-
1295293250047 Neoprene Seal ( 3Meter pack )Neoprene Seal ( 3Meter pack )
-
1400517305985 Rear StudRear Stud
-
1420250000725 Screw M4 X 16Screw M4 X 16
