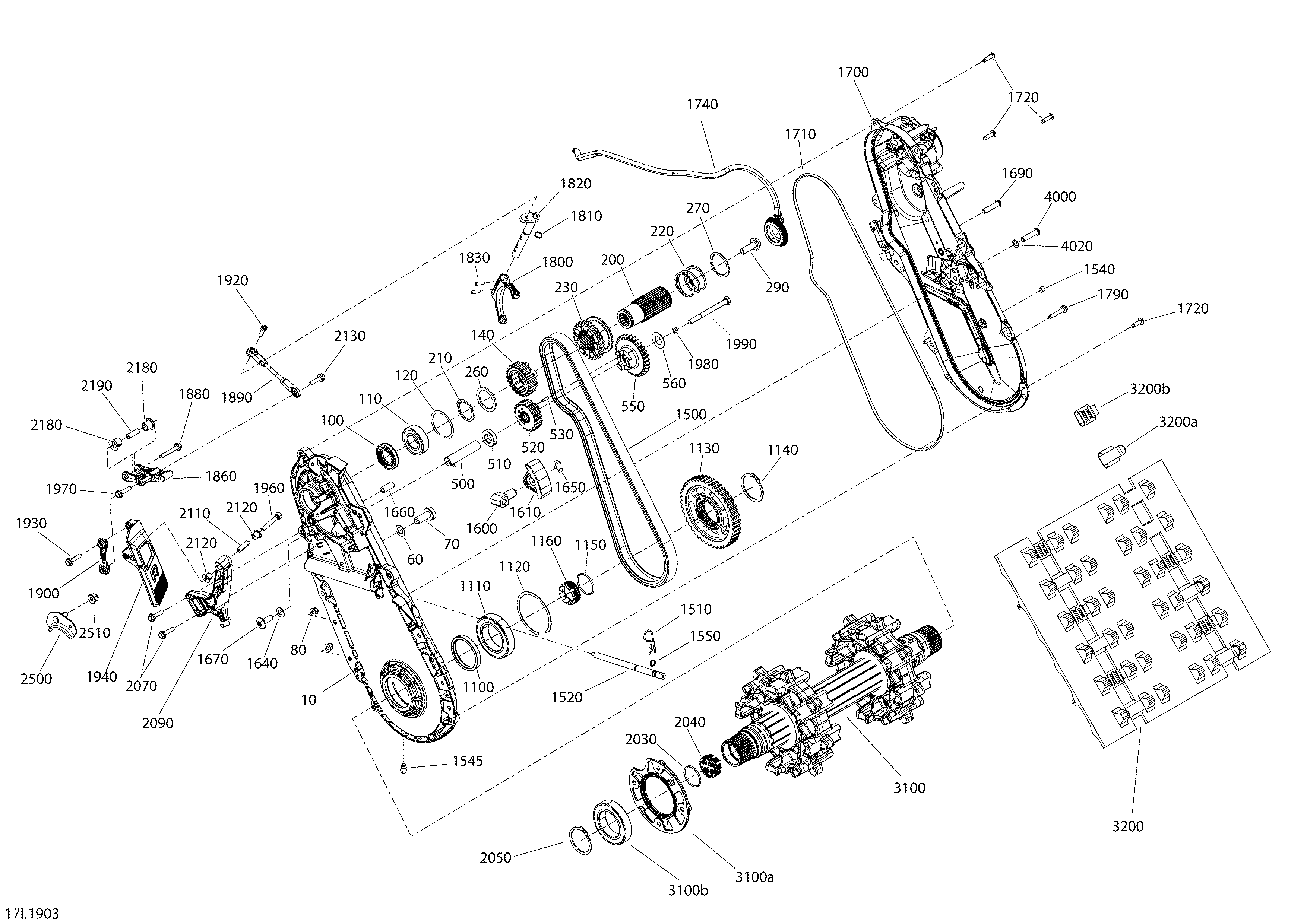

05- Drive XTRIM - 900 ACE для BRP Lynx 003 - XTRIM 900 ACE - 2019

  • №
    Артикул
    Название
  • 10
    504153815 Chaincase Ass'y. Includes 10 to 10b
    Chaincase Ass'y. Includes 10 to 10b
  • 10a
    861805514 Kit Plate Ass'y. Not Shown
    Kit Plate Ass'y. Not Shown
  • 10b
    233261434 Flanged Elastic Nut M6. Not Shown
    Flanged Elastic Nut M6. Not Shown
  • 60
    504082900 Washer
    Washer
  • 70
    250000740 Torx Screw M8 X 20, Scotch Grip
    Torx Screw M8 X 20, Scotch Grip
  • 80
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 100
    293200168 Oil Seal
    Oil Seal
  • 110
    293350115 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 140
    504153727 Sprocket 24 Teeth Ass'y
    Sprocket 24 Teeth Ass'y
  • 200
    504153500 Connecting Shaft Ass'y
    Connecting Shaft Ass'y
  • 210
    293370129 Circlip
    Circlip
  • 220
    504153179 Spring Release
    Spring Release
  • 230
    504153502 Sliding Gear 27 Teeth Machined
    Sliding Gear 27 Teeth Machined
  • 260
    504152689 Washer
    Washer
  • 270
    293370055 Circlip
    Circlip
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 500
    504153519 Axle Reverse Ass'y
    Axle Reverse Ass'y
  • 510
    504078700 Ring
    Ring
  • 520
    504153736 Sprocket 19 Teeth Ass'y
    Sprocket 19 Teeth Ass'y
  • 530
    570048600 Alignement Rod
    Alignement Rod
  • 550
    504153738 Gear Straight 29 Teeth Ass'y
    Gear Straight 29 Teeth Ass'y
  • 560
    504077300 Spacer
    Spacer
  • 1100
    293200159 Oil Seal
    Oil Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152581 Sprocket, 49 Teeth
    Sprocket, 49 Teeth
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300201 O-Ring
    O-Ring
  • 1160
    504153696 Magnetic Cap Ass'y
    Magnetic Cap Ass'y
  • 1500
    504153397 Drive Chain, 116 Links
    Drive Chain, 116 Links
  • 1510
    414575600 Hair Pin
    Hair Pin
  • 1520
    504153760 Adjustment Screw
    Adjustment Screw
  • 1540
    250500012 Allen Drive Plug 1/8-27 PTF
    Allen Drive Plug 1/8-27 PTF
  • 1545
    504153704 Magnetic Plug
    Magnetic Plug
  • 1550
    293300202 O-Ring
    O-Ring
  • 1600
    504153559 Tensioner
    Tensioner
  • 1610
    504153312 Slider Chain
    Slider Chain
  • 1640
    250200185 Copper Washer
    Copper Washer
  • 1650
    293370105 Circlip
    Circlip
  • 1660
    504153531 Slide Chain
    Slide Chain
  • 1670
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 1690
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 1700
    504153611 Chaincase Cover Ass'y
    Chaincase Cover Ass'y
  • 1710
    293300200 O-Ring
    O-Ring
  • 1720
    250001012 Torx T-30 Pan HD Taptite M6X20
    Torx T-30 Pan HD Taptite M6X20
  • 1740
    504153507 Plug Ass'y
    Plug Ass'y
  • 1770
    250500012 Allen Drive Plug 1/8-27 PTF. Not Shown
    Allen Drive Plug 1/8-27 PTF. Not Shown
  • 1790
    250000960 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 1800
    504153590 Fork Ass'y
    Fork Ass'y
  • 1810
    293300202 O-Ring
    O-Ring
  • 1820
    504153508 Axle Reverse
    Axle Reverse
  • 1830
    250400045 Spring Pin M5 X 16
    Spring Pin M5 X 16
  • 1860
    504153532 Machined Lever
    Machined Lever
  • 1880
    207564044 Hex. Flanged Screw M6 X 40, Scotch Grip
    Hex. Flanged Screw M6 X 40, Scotch Grip
  • 1890
    504153657 Rod Actuating Adjustable Ass'y
    Rod Actuating Adjustable Ass'y
  • 1900
    504153944 Rod Actuating Ass'y
    Rod Actuating Ass'y
  • 1920
    205562044 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 1930
    207562544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1940
    504153524 Reverse Lever
    Reverse Lever
  • 1960
    205564044 Socket Head Screw M6 X 40, S.GRIP
    Socket Head Screw M6 X 40, S.GRIP
  • 1970
    207562544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1980
    504082900 Washer
    Washer
  • 1990
    207089044 Hex. Screw M8 X 90
    Hex. Screw M8 X 90
  • 2030
    293300201 O-Ring
    O-Ring
  • 2040
    504153697 Magnetic Cap
    Magnetic Cap
  • 2050
    504152572 Circlip
    Circlip
  • 2070
    207562544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 2090
    504153683 Handle Support
    Handle Support
  • 2110
    504153648 Spacer
    Spacer
  • 2120
    504153735 Bushing
    Bushing
  • 2130
    207562544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 2180
    504153735 Bushing
    Bushing
  • 2190
    504153648 Spacer
    Spacer
  • 2500
    504153695 Bearing Housing Ass'y
    Bearing Housing Ass'y
  • 2510
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 3100
    504153830 Axle Drive Ass'y. Includes 3100 to 3100b
    Axle Drive Ass'y. Includes 3100 to 3100b
  • 3100a
    504153426 Retaining Ring
    Retaining Ring
  • 3100b
    293350059 Ball Bearing
    Ball Bearing
  • 3200
    504152987 Track-assy.. Includes 3200 to 3200b
    Track-assy.. Includes 3200 to 3200b
  • 3200a
    415129528 Track Guide
    Track Guide
  • 3200b
    415129529 Cleat
    Cleat
  • 4000
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 4020
    504082900 Washer
    Washer
