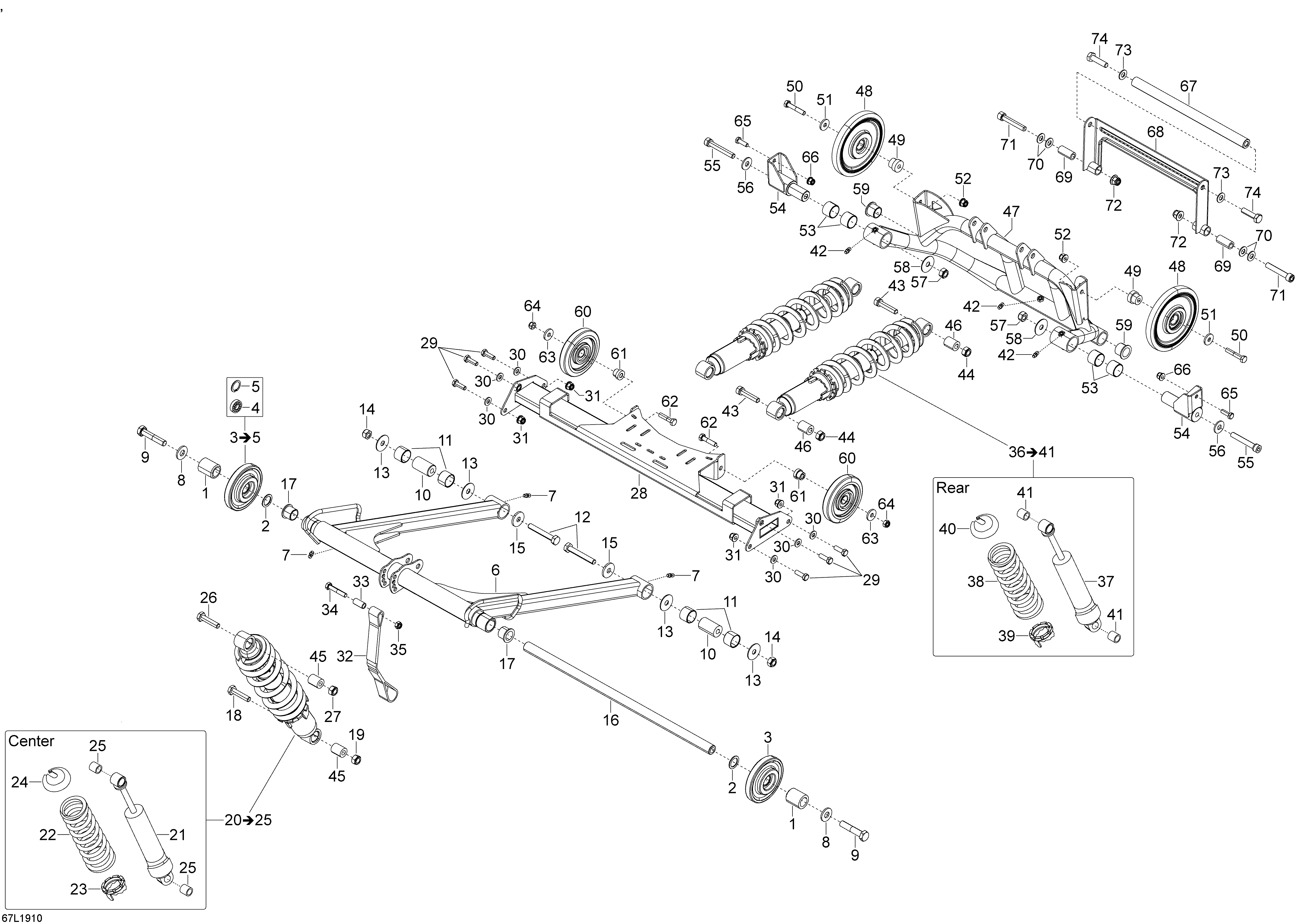

08- Rear Suspension - GT - Upper Section для BRP Lynx 004 - Commander 1200 4-TEC - 2019
-
№АртикулНазвание
-
6503193092 Front ArmFront Arm
-
7408200700 Grease FittingGrease Fitting
-
8250200131 Washer-spring ConicalWasher-spring Conical
-
9250000555 Hexagonal ScrewHexagonal Screw
-
10605354157 ShaftShaft
-
11503193700 BushingBushing
-
12207007044 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
13605355801 WasherWasher
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15503183300 WasherWasher
-
165347719 Upper Shaft Front ArmUpper Shaft Front Arm
-
1731024 CushionCushion
-
18207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
19232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21503193517 Shock, CenterShock, Center
-
22503192788 SpringSpring
-
23230078 Adjusting CamAdjusting Cam
-
24230076 Spring SeatSpring Seat
-
2531094 CushionCushion
-
26207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29250000556 Hexagonal ScrewHexagonal Screw
-
30503192494 WasherWasher
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80503192927 Shaft Passivated. Not ShownShaft Passivated. Not Shown
-
80503195144 Limiter Strap Holder. Not ShownLimiter Strap Holder. Not Shown
-
80605455335 Sleeve. Not ShownSleeve. Not Shown
-
34207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
35232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
37503193859 ShockShock
-
38605625009 SpringSpring
-
39230078 Adjusting CamAdjusting Cam
-
40230076 Spring SeatSpring Seat
-
4131094 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
44232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
455446652 BushingBushing
-
465446652 BushingBushing
-
48503193852 Idler Wheel. Includes 2265 to 2265bIdler Wheel. Includes 2265 to 2265b
-
48a503190396 Ball Bearing. Not ShownBall Bearing. Not Shown
-
48b415129371 Retaining Ring. Not ShownRetaining Ring. Not Shown
-
49605454461 SleeveSleeve
-
50207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5120077 M8 WasherM8 Washer
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
53503193700 BushingBushing
-
54605354157 ShaftShaft
-
55250000560 Screw-socket Hd.din 912Screw-socket Hd.din 912
-
56503191926 WasherWasher
-
57232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
58605355801 WasherWasher
-
5931024 CushionCushion
-
60572043500 Idler WheelIdler Wheel
-
61503193330 SleeveSleeve
-
62207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
6320077 M8 WasherM8 Washer
-
64232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
67503192397 ShaftShaft
-
68503192346 Rear SwingRear Swing
-
69503192341 Shaft, Rear SwingShaft, Rear Swing
-
70234001410 Flat Washer 10 mmFlat Washer 10 mm
-
71205006044 Socket Screw M10 X 60Socket Screw M10 X 60
-
72233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
73234001410 Flat Washer 10 mmFlat Washer 10 mm
-
74207204044 Hexagonal ScrewHexagonal Screw
