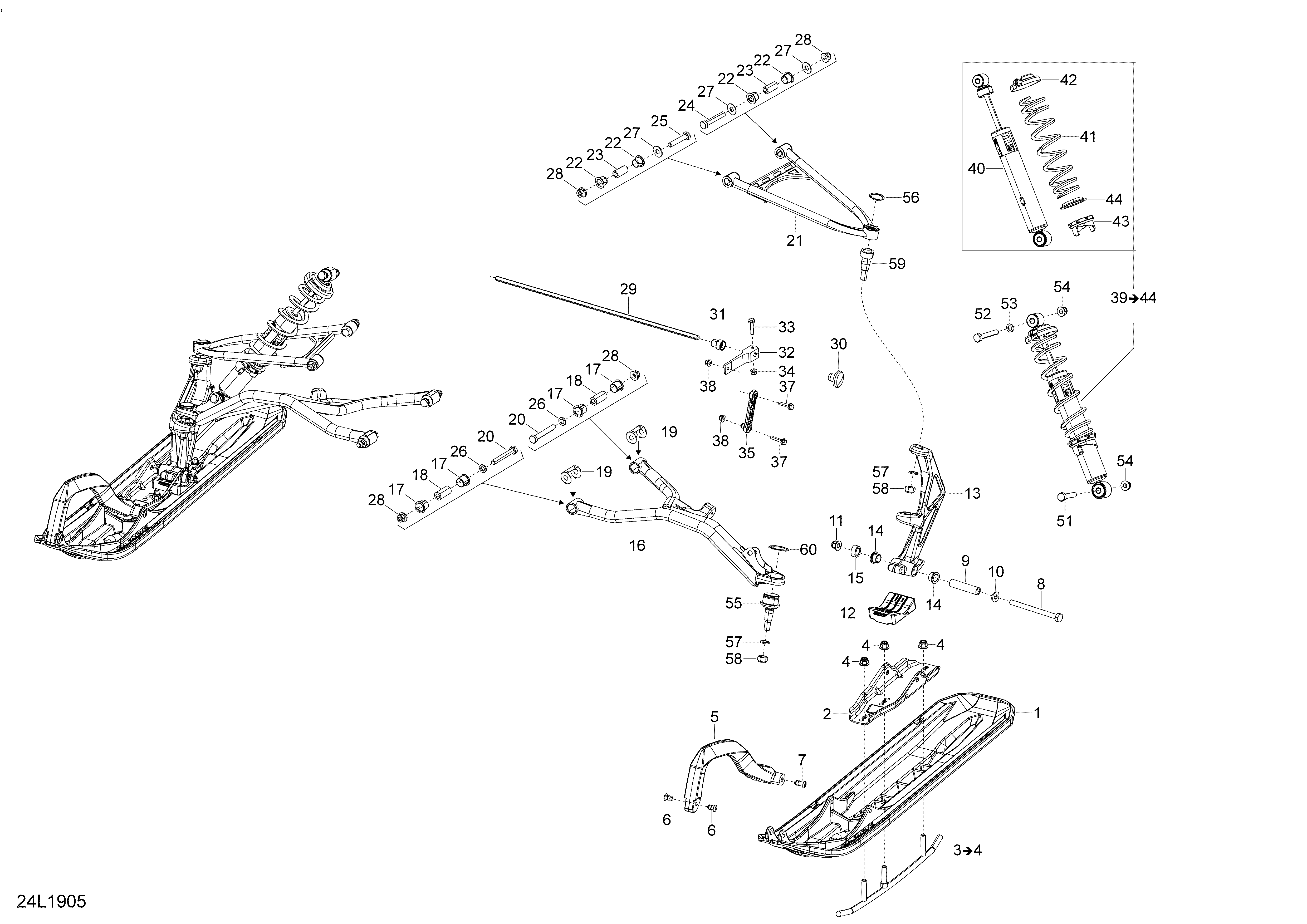

07- Front Suspension And Ski - Commander - 1200 4-TEC для BRP Lynx 004 - Commander 1200 4-TEC - 2019

  • №
    Артикул
    Название
  • 1
    505074262 Black, Ski Blade Xc
    Black, Ski Blade Xc
  • 3
    860200959 Ski Runner Blade 3 Carb.
    Ski Runner Blade 3 Carb.
  • 4
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 5
    505073651 Orange, Handle
    Orange, Handle
  • 6
    505071812 Retainer 17mm long
    Retainer 17mm long
  • 7
    505072133 Retainer 23mm Long
    Retainer 23mm Long
  • 8
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 9
    506133300 Spacer
    Spacer
  • 10
    503192496 Washer
    Washer
  • 11
    233201464 Hex. Elast. Flanged Nut M10 x 1.5
    Hex. Elast. Flanged Nut M10 x 1.5
  • 12
    505072594 Ski Stopper
    Ski Stopper
  • 13
    505073579 Black LH Ski Leg
    Black LH Ski Leg
  • 13
    505073580 Black RH Ski Leg
    Black RH Ski Leg
  • 14
    505072690 Leg Bushing
    Leg Bushing
  • 15
    505072807 Spacer
    Spacer
  • 16
    505073925 RH Arm-lower
    RH Arm-lower
  • 16
    505073924 LH Arm-lower
    LH Arm-lower
  • 17
    505073330 Cushion
    Cushion
  • 18
    505072209 Bushing
    Bushing
  • 19
    505072634 Wear Plate
    Wear Plate
  • 20
    250001024 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 21
    505073985 LH Arm-upper W Sway Bar
    LH Arm-upper W Sway Bar
  • 21
    505073986 RH Arm-upper W Sway Bar
    RH Arm-upper W Sway Bar
  • 22
    505073329 Swivel Bushing
    Swivel Bushing
  • 23
    505072143 Bushing
    Bushing
  • 24
    250000290 Screw Hex. M10 X 1.25 X 60
    Screw Hex. M10 X 1.25 X 60
  • 25
    250000289 Screw Hex. M10 X 1.25 X 50
    Screw Hex. M10 X 1.25 X 50
  • 26
    503189564 Washer
    Washer
  • 27
    505072392 Washer
    Washer
  • 28
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 29
    505072444 Stabilisator
    Stabilisator
  • 31
    505072445 Bushing
    Bushing
  • 32
    505074294 Stabilisator Lever
    Stabilisator Lever
  • 33
    207663046 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 34
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 35
    505074123 Double Ball Joint Link
    Double Ball Joint Link
  • 37
    207663046 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 38
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 40
    505074275 Front Shock (eur). ECS2 Shocks
    Front Shock (eur). ECS2 Shocks
  • 40
    505073342 Front Shock (EUR). Standard Shocks
    Front Shock (EUR). Standard Shocks
  • 41
    505072760 Deep Black Spring. ECS2 Shocks
    Deep Black Spring. ECS2 Shocks
  • 41
    505074329 Black Spring 300mm-18n/mm. Standard Shocks
    Black Spring 300mm-18n/mm. Standard Shocks
  • 42
    706200881 Spring Stopper
    Spring Stopper
  • 43
    505073625 Adjustment Cam
    Adjustment Cam
  • 44
    503191872 Spring Guide
    Spring Guide
  • 51
    207005544 Hex. Screw M10 X 55
    Hex. Screw M10 X 55
  • 52
    207006544 Hex. Screw M10 X 1.5 X 65
    Hex. Screw M10 X 1.5 X 65
  • 53
    503189564 Washer
    Washer
  • 54
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 55
    505073636 Ball Joint
    Ball Joint
  • 56
    293370070 Circlip
    Circlip
  • 57
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 58
    250100089 Hex. Elastic Hex. Nut M12
    Hex. Elastic Hex. Nut M12
  • 59
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 60
    293370035 Circlip
    Circlip
  • 80
    505072448 O-Ring
    O-Ring
