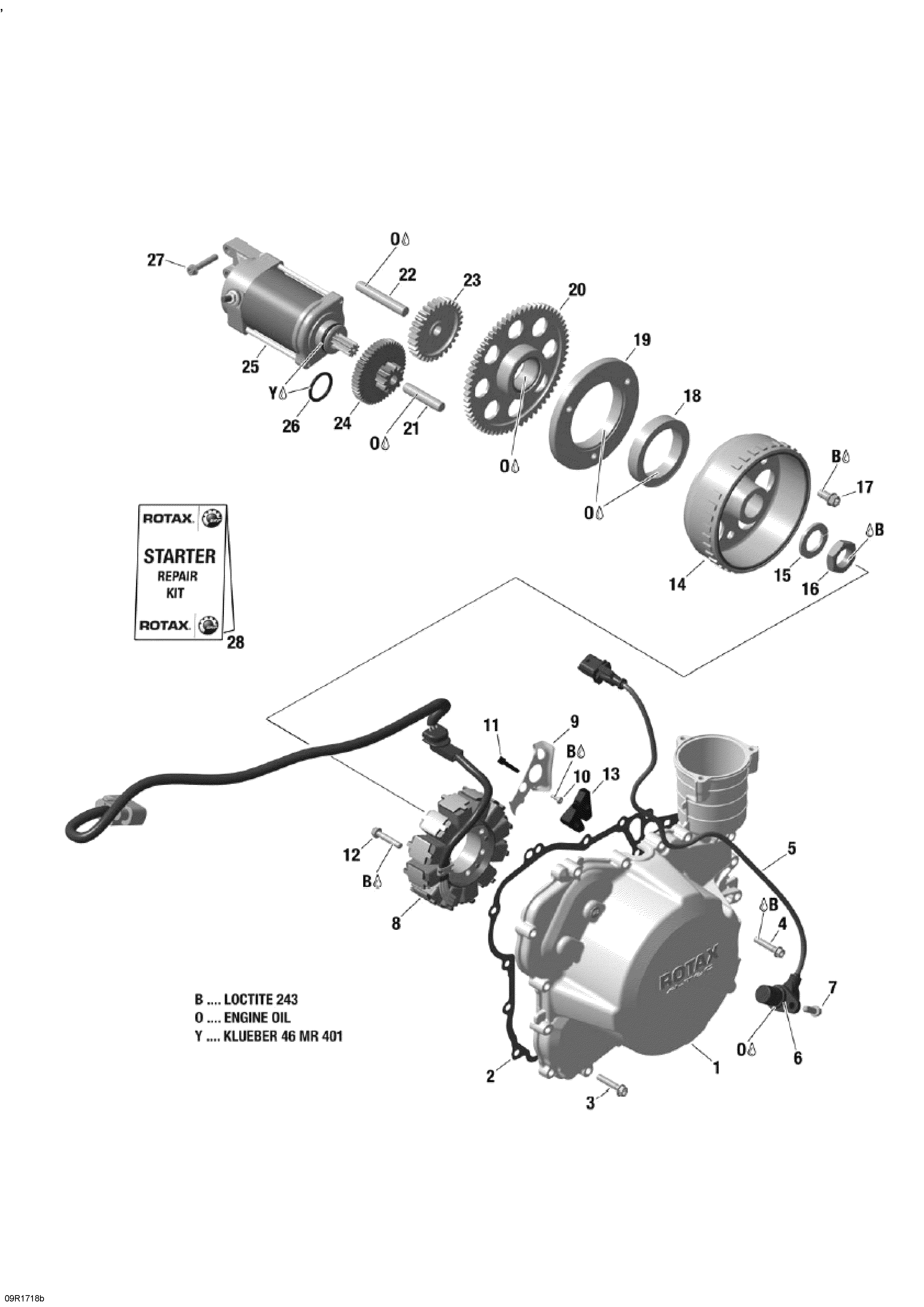

03- Magneto And Electric Starter - 1200 4-TEC для BRP Lynx 004 - Commander 1200 4-TEC - 2019
-
№АртикулНазвание
-
1420611833 Ignition CoverIgnition Cover
-
2420430750 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
4420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
5420966570 Crankshaft Position Sensor. Includes 5 To 6Crankshaft Position Sensor. Includes 5 To 6
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 x 16. Tightening Torque 11 NmFlanged Torx Screw M6 x 16. Tightening Torque 11 Nm
-
8420892378 Stator Ass'y (490W, 14V). Includes 8 To 11Stator Ass'y (490W, 14V). Includes 8 To 11
-
9420951192 Cable HolderCable Holder
-
11420651397 Tie RapTie Rap
-
12420440649 Flange Screw M6X30Flange Screw M6X30
-
13420860052 Rubber SpacerRubber Spacer
-
14420892361 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock Washer 22Lock Washer 22
-
16420842239 Nut M22Nut M22
-
17420440854 Flange Screw M8X16Flange Screw M8X16
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Sprag Clutch HousingSprag Clutch Housing
-
20420434235 Free Wheel Gear 64TFree Wheel Gear 64T
-
21420229302 Location PinLocation Pin
-
22420229475 Needle PinNeedle Pin
-
23420634606 Starter Intermediate Gear 30TStarter Intermediate Gear 30T
-
24420634741 Starter Double Gear 11/49TStarter Double Gear 11/49T
-
25>26420893531 Electric StarterElectric Starter
-
26420250145 O-RingO-Ring
-
27420440647 Flange Screw M6x30Flange Screw M6x30
-
28420881140 Repair KitRepair Kit
