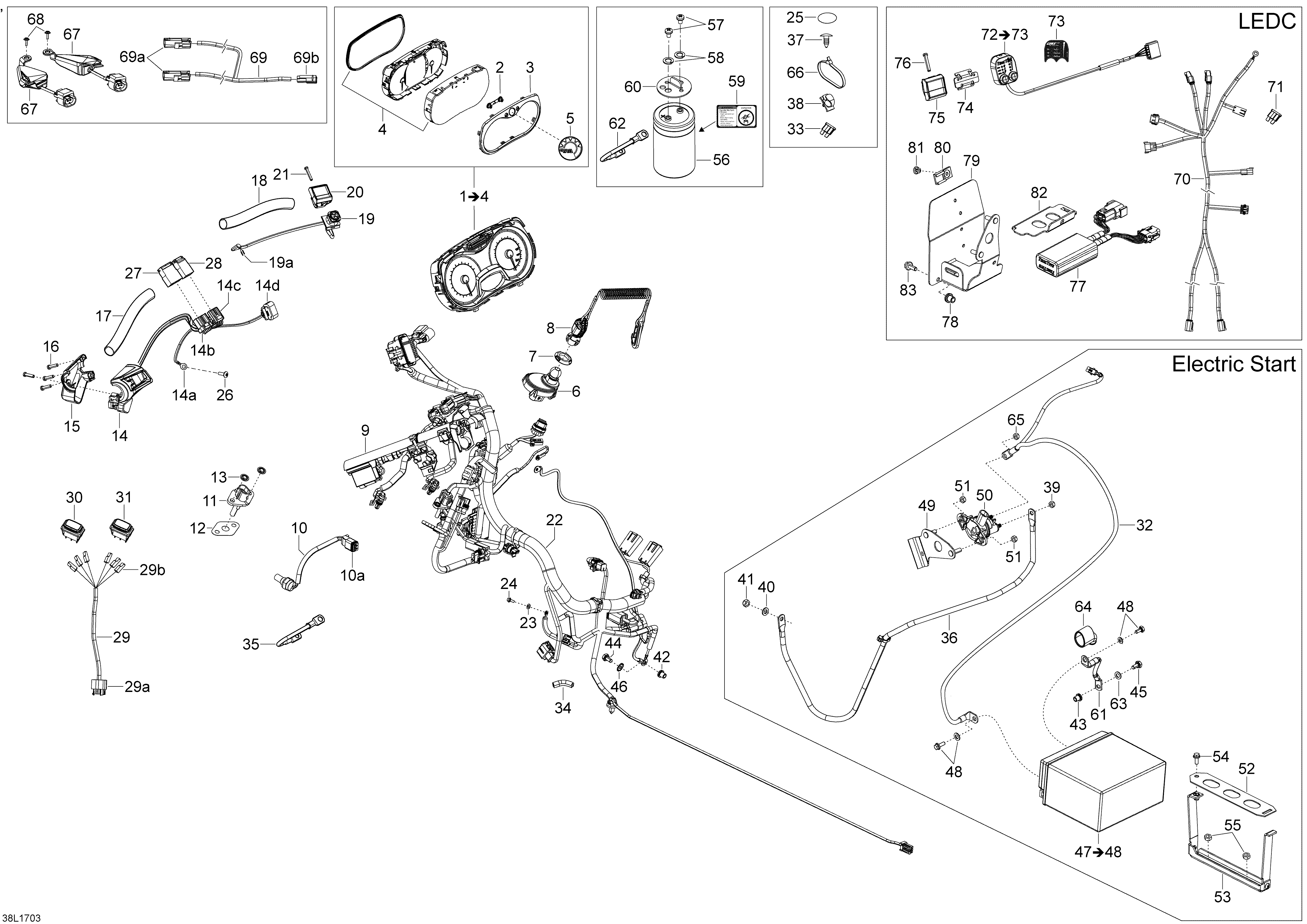

10- Electrical System для BRP Lynx Rave RE - 2017

  • №
    Артикул
    Название
  • 1
    515177910 Speedometer. Includes 1 To 4
    Speedometer. Includes 1 To 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129348 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens
    Lens
  • 5
    516006224 BRP Logo
    BRP Logo
  • 6
    515178225 Dess Switch
    Dess Switch
  • 7
    278002963 Safety Switch Nut
    Safety Switch Nut
  • 8
    515178044 DESS Cap
    DESS Cap
  • 9
    515177134 Plate
    Plate
  • 10
    515177813 Temperature Sensor
    Temperature Sensor
  • 10a
    515175670 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 10a
    278000632 Female Terminal
    Female Terminal
  • 10a
    278001661 Female Terminal
    Female Terminal
  • 10a
    293000052 Sealing Cap
    Sealing Cap
  • 10a
    515175675 Female Lock
    Female Lock
  • 11
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 12
    508000769 Ring
    Ring
  • 13
    389804300 Push Nut
    Push Nut
  • 14
    515178305 Housing
    Housing
  • 14a
    515175504 Ring Terminal
    Ring Terminal
  • 14b
    515175543 Female Housing, 6 Circuits
    Female Housing, 6 Circuits
  • 14b
    515175231 Female Terminal
    Female Terminal
  • 14c
    515175845 Female Housing, 4 Circuits
    Female Housing, 4 Circuits
  • 14c
    515175231 Female Terminal
    Female Terminal
  • 14d
    710001930 Female Housing, 12 Circuits
    Female Housing, 12 Circuits
  • 15
    515177149 Housing Plate
    Housing Plate
  • 16
    250000671 Torx Screw
    Torx Screw
  • 17
    415129879 Protector Tube
    Protector Tube
  • 18
    415129879 Protector Tube
    Protector Tube
  • 19
    515177362 Kill Switch
    Kill Switch
  • 19a
    515175232 Male Terminal
    Male Terminal
  • 20
    515177310 Support
    Support
  • 21
    250000263 Torx Screw
    Torx Screw
  • 22
    515177984 Main Harness. Model-600 E-TEC
    Main Harness. Model-600 E-TEC
  • 22
    515177985 Main Harness. Model-800 E-TEC
    Main Harness. Model-800 E-TEC
  • 23
    234141601 Lock Washer
    Lock Washer
  • 24
    250000741 Torx Truss Screw M4 x 8
    Torx Truss Screw M4 x 8
  • 25
    518325560 Adhesive Patch
    Adhesive Patch
  • 26
    250000690 Forming Screw M5 x 10
    Forming Screw M5 x 10
  • 27
    515175662 Male Housing, 6 Cirsuits
    Male Housing, 6 Cirsuits
  • 27
    515175232 Male Terminal
    Male Terminal
  • 28
    515175846 Male Housing, 4 Circuits
    Male Housing, 4 Circuits
  • 28
    515175232 Male Terminal
    Male Terminal
  • 29
    515177495 Warmer Harness
    Warmer Harness
  • 29a
    710001928 Female Housing, 8 Circuits
    Female Housing, 8 Circuits
  • 29b
    710002398 Female Housing, 1 Circuit
    Female Housing, 1 Circuit
  • 29b
    710002399 Female Terminal
    Female Terminal
  • 30
    515177497 Hand Warmer Rocker Switch
    Hand Warmer Rocker Switch
  • 31
    515177498 Thumb Warmer Rocker Switch
    Thumb Warmer Rocker Switch
  • 32
    515177496 Battery Cable With Charging. Model-Electric Start
    Battery Cable With Charging. Model-Electric Start
  • 33
    278001443 Fuse 25A. Model-Electric Start
    Fuse 25A. Model-Electric Start
  • 34
    520001525 Trim
    Trim
  • 35
    515177289 Ground Wire
    Ground Wire
  • 36
    515177208 Battery Cable. Model-Electric Start
    Battery Cable. Model-Electric Start
  • 37
    414644300 Dart
    Dart
  • 38
    515177066 Clip. Model-Electric Start
    Clip. Model-Electric Start
  • 39
    232561434 Elastic Stop Nut M6. Model-Electric Start
    Elastic Stop Nut M6. Model-Electric Start
  • 40
    234061410 Flat Washer. Model-Electric Start
    Flat Washer. Model-Electric Start
  • 41
    232561414 Elastic Stop Nut M6. Model-Electric Start
    Elastic Stop Nut M6. Model-Electric Start
  • 42
    233261414 Hex. Flange Nut M6
    Hex. Flange Nut M6
  • 43
    293450275 Insert. Model-Electric Start
    Insert. Model-Electric Start
  • 44
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 45
    207662044 Hex. Flange Screw M6 x 20. Model-Electric Start
    Hex. Flange Screw M6 x 20. Model-Electric Start
  • 46
    250200041 Serrated Lock Washer
    Serrated Lock Washer
  • 47
    410301203 Battery 18AH. Includes 47 To 48, Model-Electric Start - 600 E-TEC
    Battery 18AH. Includes 47 To 48, Model-Electric Start - 600 E-TEC
  • 47
    415129898 Battery 18AHHD. Includes 47 To 48, Model-Electric Start - 800 E-TEC
    Battery 18AHHD. Includes 47 To 48, Model-Electric Start - 800 E-TEC
  • 48
    250000282 Fastener Kit
    Fastener Kit
  • 49
    515177558 Relay Support. Model-Electric Start
    Relay Support. Model-Electric Start
  • 50
    278003012 Starter Relay. Model-Electric Start
    Starter Relay. Model-Electric Start
  • 51
    233261416 Elastic Flange Nut M6. Model-Electric Start
    Elastic Flange Nut M6. Model-Electric Start
  • 52
    518327281 Battery Strap. Model-Electric Start
    Battery Strap. Model-Electric Start
  • 53
    518327282 Battery Strap. Model-Electric Start
    Battery Strap. Model-Electric Start
  • 54
    207561644 Hex. Flange Screw M6 x 16. Model-Electric Start
    Hex. Flange Screw M6 x 16. Model-Electric Start
  • 55
    233261416 Elastic Flange Nut M6. Model-Electric Start
    Elastic Flange Nut M6. Model-Electric Start
  • 56
    515177272 Capacitor
    Capacitor
  • 57
    250000462 Socket Head Screw M10 x 32
    Socket Head Screw M10 x 32
  • 58
    250200026 Lock Washer
    Lock Washer
  • 59
    516006206 Capacitor Decal
    Capacitor Decal
  • 60
    515177193 Cap
    Cap
  • 61
    515176780 Ground Cable. Model-Electric Start
    Ground Cable. Model-Electric Start
  • 62
    515178052 Ground Wire. Model-600 E-TEC
    Ground Wire. Model-600 E-TEC
  • 63
    234061410 Flat Washer. Model-Electric Start
    Flat Washer. Model-Electric Start
  • 64
    570151000 Protection Cap. Model-Electric Start
    Protection Cap. Model-Electric Start
  • 65
    232561434 Elastic Stop Nut M6. Model-Electric Start
    Elastic Stop Nut M6. Model-Electric Start
  • 66
    414115200 Tie Rap 180mm
    Tie Rap 180mm
  • 66
    293750008 Tie Rap 350mm
    Tie Rap 350mm
  • 66
    293750002 Tie Rap 142mm
    Tie Rap 142mm
  • 67
    515177580 RH Signature Light. Model-800 E-TEC
    RH Signature Light. Model-800 E-TEC
  • 67
    515177581 LH Signature Light. Model-800 E-TEC
    LH Signature Light. Model-800 E-TEC
  • 68
    250000759 Torx Truss Screw K40 x 16. Model-800 E-TEC
    Torx Truss Screw K40 x 16. Model-800 E-TEC
  • 69
    515177632 Signature Light Harness. Model-800 E-TEC
    Signature Light Harness. Model-800 E-TEC
  • 69a
    710001153 Wire Seal. Model-800 E-TEC
    Wire Seal. Model-800 E-TEC
  • 69b
    515175654 Male Housing, 2 Circuits. Model-800 E-TEC
    Male Housing, 2 Circuits. Model-800 E-TEC
  • 69b
    515175232 Male Terminal. Model-800 E-TEC
    Male Terminal. Model-800 E-TEC
  • 70
    515177782 Suspension Harness. Model-LEDC
    Suspension Harness. Model-LEDC
  • 71
    278001197 Fuse 10A. Model-LEDC
    Fuse 10A. Model-LEDC
  • 72
    515177783 Control Box Ass'y. Includes 72 To 73, Model-LEDC
    Control Box Ass'y. Includes 72 To 73, Model-LEDC
  • 73
    515177784 Control Box Decal. Model-LEDC
    Control Box Decal. Model-LEDC
  • 74
    515177779 Control Box Fastener. Model-LEDC
    Control Box Fastener. Model-LEDC
  • 75
    515177310 Support. Model-LEDC
    Support. Model-LEDC
  • 76
    250000263 Torx Screw. Model-LEDC
    Torx Screw. Model-LEDC
  • 77
    515177785 Control Box. Model-LEDC
    Control Box. Model-LEDC
  • 78
    293450275 Insert. Model-LEDC
    Insert. Model-LEDC
  • 79
    503194278 ECU Support. Model-LEDC
    ECU Support. Model-LEDC
  • 80
    270000141 Clip. Model-LEDC
    Clip. Model-LEDC
  • 81
    293150037 Rivet. Model-LEDC
    Rivet. Model-LEDC
  • 82
    503194279 ECU Support. Model-LEDC
    ECU Support. Model-LEDC
  • 83
    207561644 Hex. Flange Screw M6 x 16. Model-LEDC
    Hex. Flange Screw M6 x 16. Model-LEDC
  • 84
    515177759 Module 800 ETEC
    Module 800 ETEC
