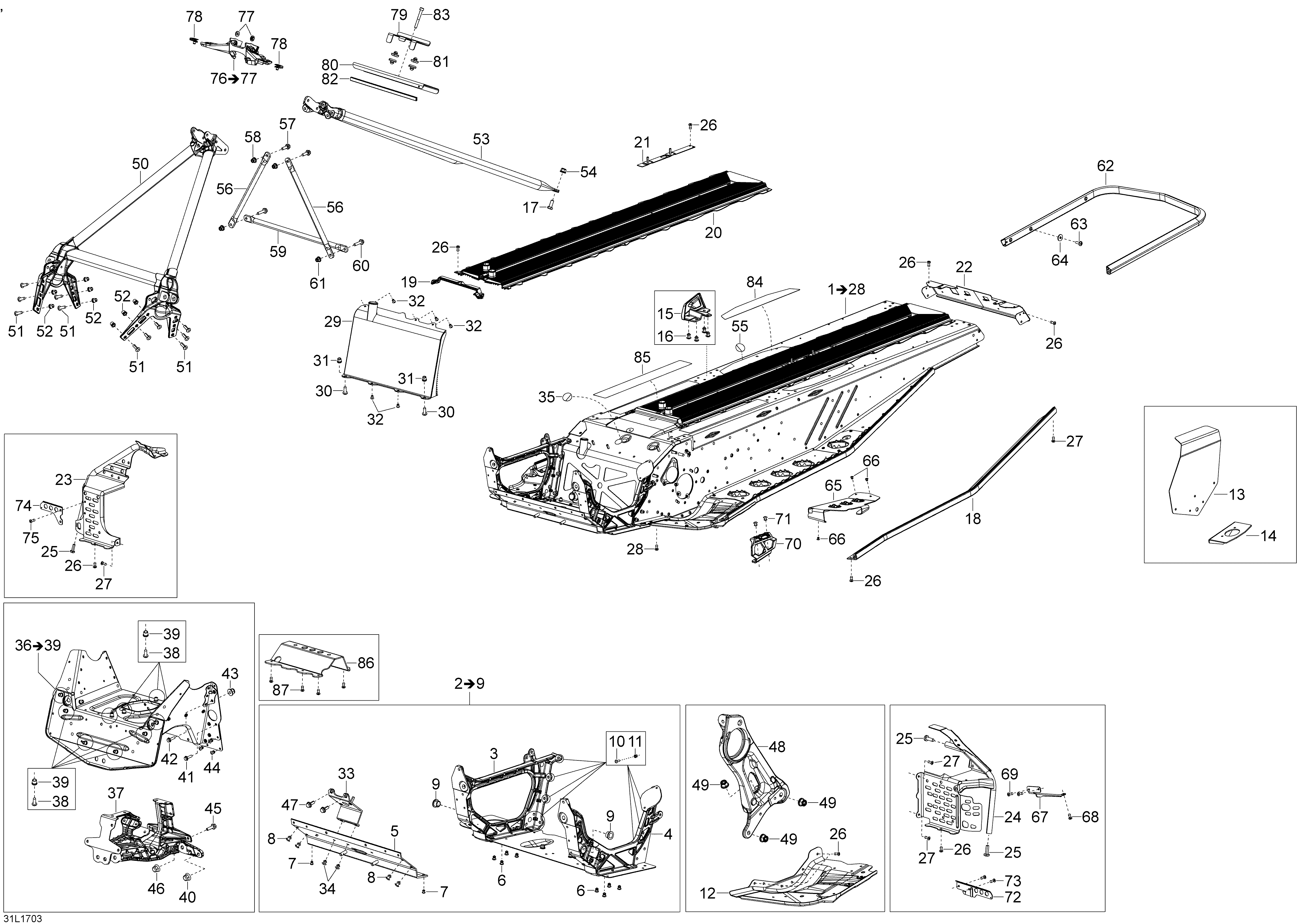

09- Frame для BRP Lynx Rave RE - 2017
-
№АртикулНазвание
-
1518329574 Red Frame. Includes 1 To 28, Model-stdRed Frame. Includes 1 To 28, Model-std
-
1518329593 Red Frame. Includes 1 To 28, Model-LEDCRed Frame. Includes 1 To 28, Model-LEDC
-
2518327646 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518327242 LH Front TunnelLH Front Tunnel
-
12518327243 RH Front TunnelRH Front Tunnel
-
13518329579 LH Rear Arm SupportLH Rear Arm Support
-
13518329580 RH Rear Arm SupportRH Rear Arm Support
-
14518329581 Rear SupportRear Support
-
15518328436 RH Rear BaseRH Rear Base
-
15518328435 LH Rear BaseLH Rear Base
-
16293150147 RivetRivet
-
17207182086 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18518327517 LH Side ProfileLH Side Profile
-
18518327518 RH Side ProfileRH Side Profile
-
19518326656 SealSeal
-
20518326786 Rear RadiatorRear Radiator
-
22518327240 Rear CapRear Cap
-
23518328940 RH StirrupRH Stirrup
-
24518328528 LH StirrupLH Stirrup
-
25250000752 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
26390909200 RivetRivet
-
27390909100 RivetRivet
-
28293150096 RivetRivet
-
29518326485 Front RadiatorFront Radiator
-
30207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
31233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
32390909200 RivetRivet
-
33518325943 MAG SupportMAG Support
-
34293150119 RivetRivet
-
35518325560 Adhesive PatchAdhesive Patch
-
36518328392 Cross Member. Includes 36 To 39, RAC KITCross Member. Includes 36 To 39, RAC KIT
-
36518328394 Cross Member. Includes 36 To 39, RE KITCross Member. Includes 36 To 39, RE KIT
-
37518327487 SupportSupport
-
38207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
41210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
42207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44293150179 RivetRivet
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
48518327460 Pulley SupportPulley Support
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
50518327565 Front MemberFront Member
-
51207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
52233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
53518327237 Rear MemberRear Member
-
54233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
55518325560 Adhesive PatchAdhesive Patch
-
56518325114 SupportSupport
-
57207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
58233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
59518325115 Upper ColumnUpper Column
-
60207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
61233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
62518328071 Black Rear BumperBlack Rear Bumper
-
63250000779 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
64224061201 Flat WasherFlat Washer
-
65518327979 Black LH FootrestBlack LH Footrest
-
65518327980 Black RH FootrestBlack RH Footrest
-
6636005 RivetRivet
-
67518328079 Brake Cover SupportBrake Cover Support
-
68390909200 RivetRivet
-
69293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
70518327507 Black LH Foot SupportBlack LH Foot Support
-
70518327508 Black RH Foot SupportBlack RH Foot Support
-
71293150120 RivetRivet
-
72518327613 LH Spring Support PlateLH Spring Support Plate
-
73293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
74518327614 RH Spring Support PlateRH Spring Support Plate
-
75390909200 RivetRivet
-
76518327145 Support. Includes 76 To 77Support. Includes 76 To 77
-
78250000079 Panel Nut M5Panel Nut M5
-
79513033746 Upper Support PlateUpper Support Plate
-
80513033747 Lower Support PlateLower Support Plate
-
81605452114 Rubber PlugRubber Plug
-
83205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
-
84516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
85516007041 Fuel Tank Protection DecalFuel Tank Protection Decal
-
86518327285 Engine Support. Model-RS KitEngine Support. Model-RS Kit
-
87390909200 Rivet. Model-RS KitRivet. Model-RS Kit
