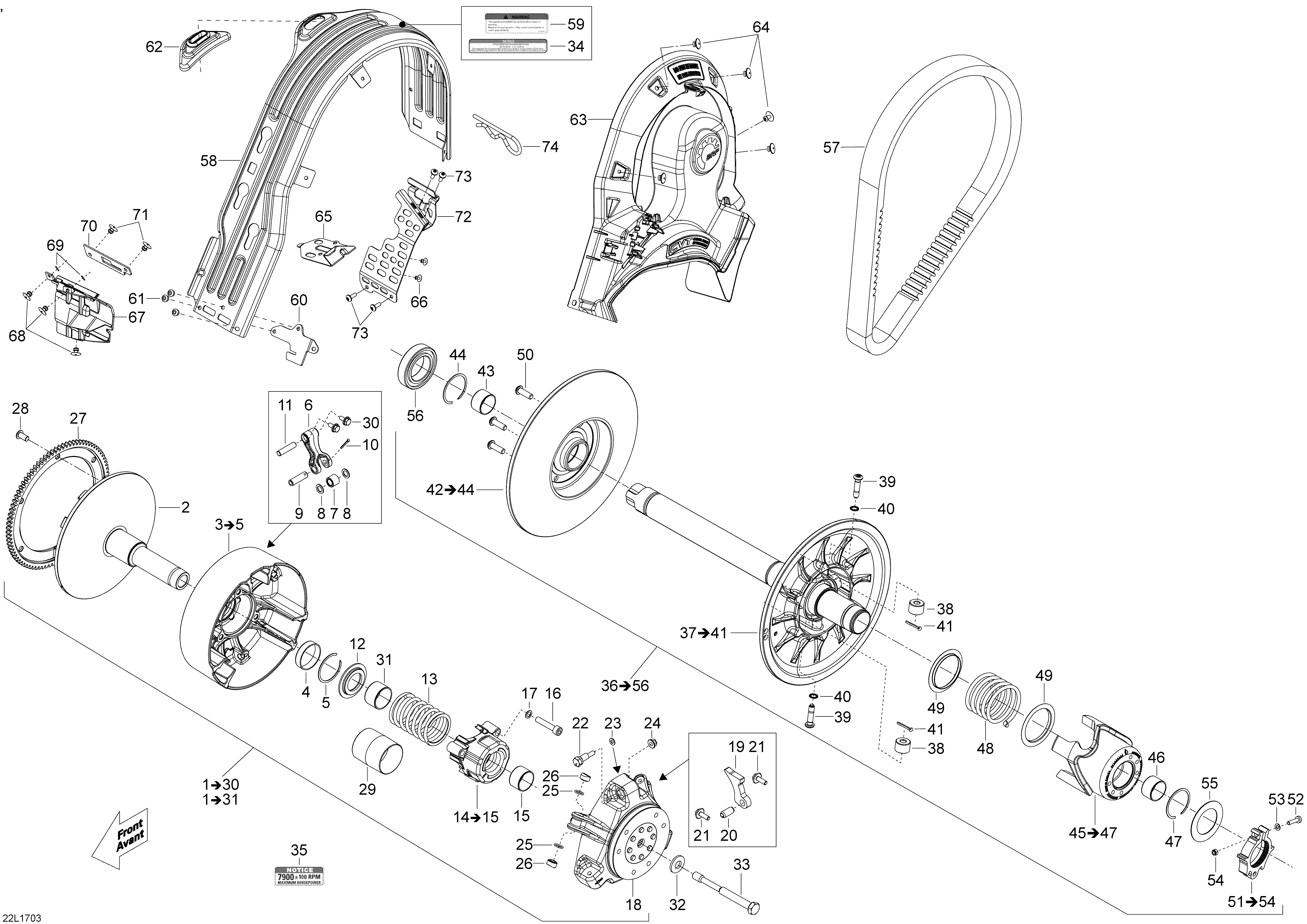

05- Pulley System для BRP Lynx Rave RE - 2017

  • №
    Артикул
    Название
  • 2
    417222937 Fixed Flange Ass'y. Model-600 E-TEC
    Fixed Flange Ass'y. Model-600 E-TEC
  • 2
    417223232 Fixed Flange Ass'y. Model-800 E-TEC
    Fixed Flange Ass'y. Model-800 E-TEC
  • 3
    417222181 Sliding Flange Ass'y. Includes 3 To 5, Model-600 E-TEC
    Sliding Flange Ass'y. Includes 3 To 5, Model-600 E-TEC
  • 3
    417223444 Sliding Flange Ass'y. Includes 3 To 5, Model-800 E-TEC
    Sliding Flange Ass'y. Includes 3 To 5, Model-800 E-TEC
  • 4
    417222758 Bushing. Model-600 E-TEC
    Bushing. Model-600 E-TEC
  • 4
    417223086 Bushing. Model-800 E-TEC
    Bushing. Model-800 E-TEC
  • 5
    293370037 Circlip. Model-600 E-TEC
    Circlip. Model-600 E-TEC
  • 5
    293370071 Double Circlip. Model-800 E-TEC
    Double Circlip. Model-800 E-TEC
  • 6
    417222671 Lever Ass?y
    Lever Ass?y
  • 7
    417222947 Roller Ass?y
    Roller Ass?y
  • 8
    417004302 Stopper Washer
    Stopper Washer
  • 9
    417004308 Pin. Model-600 E-TEC
    Pin. Model-600 E-TEC
  • 9
    417222594 Pin. Model-800 E-TEC
    Pin. Model-800 E-TEC
  • 10
    250400060 Cotter Pin
    Cotter Pin
  • 11
    417223164 Lever Axle
    Lever Axle
  • 12
    417222312 Spring Seat
    Spring Seat
  • 13
    414817700 Spring (Blue / Green, 579-1157N / 130-260lbs)
    Spring (Blue / Green, 579-1157N / 130-260lbs)
  • 14
    417007500 Spring Cover Ass'y. Includes 14 To 15, Model-600 E-TEC
    Spring Cover Ass'y. Includes 14 To 15, Model-600 E-TEC
  • 14
    417222759 Spring Cover Ass'y. Includes 14 To 15, Model-800 E-TEC
    Spring Cover Ass'y. Includes 14 To 15, Model-800 E-TEC
  • 15
    417009204 Bushing
    Bushing
  • 16
    205084044 Socket Head Screw M8 x 40
    Socket Head Screw M8 x 40
  • 17
    250200009 Lock Washer M8
    Lock Washer M8
  • 18
    417223669 Governor Cup. Model-600 E-TEC
    Governor Cup. Model-600 E-TEC
  • 18
    417223666 Governor Cup. Model-800 E-TEC
    Governor Cup. Model-800 E-TEC
  • 19
    417222515 Ramp (412). Model-600 E-TEC
    Ramp (412). Model-600 E-TEC
  • 19
    417222546 Ramp (414). Model-800 E-TEC
    Ramp (414). Model-800 E-TEC
  • 20
    250400050 Spring Pin M10 x 22
    Spring Pin M10 x 22
  • 21
    250000418 Hex. Flange Screw M6 x 18, Scotch Grip
    Hex. Flange Screw M6 x 18, Scotch Grip
  • 22
    417223501 Calibration Screw
    Calibration Screw
  • 23
    417005600 Washer
    Washer
  • 24
    233261414 Hex. Flange Elastic Nut M6
    Hex. Flange Elastic Nut M6
  • 25
    732401030 O Ring
    O Ring
  • 26
    417222992 Slider Shoe. Model-600 E-TEC
    Slider Shoe. Model-600 E-TEC
  • 26
    417223271 Slider Shoe. Model-800 E-TEC
    Slider Shoe. Model-800 E-TEC
  • 27
    417223738 Ring Gear. Model-600 E-TEC
    Ring Gear. Model-600 E-TEC
  • 27
    417223739 Ring Gear. Model-800 E-TEC
    Ring Gear. Model-800 E-TEC
  • 28
    250000533 Hex. Flange Screw M8 x 16, Scotch Grip
    Hex. Flange Screw M8 x 16, Scotch Grip
  • 29
    417009205 Guard
    Guard
  • 30
    250000412 Hex. Flange Screw M6 x 12, Scotch Grip. Model-600 E-TEC
    Hex. Flange Screw M6 x 12, Scotch Grip. Model-600 E-TEC
  • 30
    250000416 Hex. Flange Screw M6 x 16, Scotch Grip. Model-800 E-TEC
    Hex. Flange Screw M6 x 16, Scotch Grip. Model-800 E-TEC
  • 31
    417223471 Bushing. Model-800 E-TEC
    Bushing. Model-800 E-TEC
  • 32
    250200144 Spring Washer
    Spring Washer
  • 33
    417120000 Drive Pulley Bolt. Model-600 E-TEC
    Drive Pulley Bolt. Model-600 E-TEC
  • 33
    417300409 Drive Pulley Bolt. Model-800 E-TEC
    Drive Pulley Bolt. Model-800 E-TEC
  • 34
    516005503 Drive Pulley Bolt Decal
    Drive Pulley Bolt Decal
  • 35
    516005507 RPM Decal. Model-800 E-TEC
    RPM Decal. Model-800 E-TEC
  • 37
    417127387 Fixed Flange Ass'y. Includes 37 To 41
    Fixed Flange Ass'y. Includes 37 To 41
  • 38
    417127016 Roller
    Roller
  • 39
    417127294 Stud
    Stud
  • 40
    250200009 Lock Washer M8
    Lock Washer M8
  • 41
    250400063 Spring Pin M3 x 30
    Spring Pin M3 x 30
  • 42
    417127317 Sliding Flange Ass'y. Includes 42 To 44
    Sliding Flange Ass'y. Includes 42 To 44
  • 43
    417127318 Bushing
    Bushing
  • 44
    293370049 Circlip
    Circlip
  • 45
    417127319 Cam Ass'y (47/44?). Includes 45 To 47
    Cam Ass'y (47/44?). Includes 45 To 47
  • 46
    417127318 Bushing
    Bushing
  • 47
    293370049 Circlip
    Circlip
  • 48
    417127137 Spring (Green, 800-350N / 179-303lbs)
    Spring (Green, 800-350N / 179-303lbs)
  • 49
    417127116 Swivel Abutment
    Swivel Abutment
  • 50
    250000757 Button Head Torx Screw M8 x 25
    Button Head Torx Screw M8 x 25
  • 51
    415129604 Pulley Adjuster Ass'y. Includes 51 To 54
    Pulley Adjuster Ass'y. Includes 51 To 54
  • 52
    205052544 Socket HD Screw M5 x 25
    Socket HD Screw M5 x 25
  • 53
    234051410 Flat Washer M5
    Flat Washer M5
  • 54
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 55
    417127155 Washer
    Washer
  • 56
    504152574 Ball Bearing
    Ball Bearing
  • 57
    417300383 Belt. Model-600 E-TEC
    Belt. Model-600 E-TEC
  • 57
    417300391 Belt. Model-800 E-TEC
    Belt. Model-800 E-TEC
  • 58
    417300357 Belt Guard
    Belt Guard
  • 59
    516006900 Belt Guard Security Label
    Belt Guard Security Label
  • 60
    417300423 Reinforcement
    Reinforcement
  • 61
    390909200 Rivet
    Rivet
  • 62
    417300381 Guide
    Guide
  • 63
    417300441 CVT Air Duct
    CVT Air Duct
  • 64
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 65
    417300445 Stopper
    Stopper
  • 66
    390909200 Rivet
    Rivet
  • 67
    417300430 Front Support
    Front Support
  • 68
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 69
    517225900 Flat Washer
    Flat Washer
  • 70
    417300421 Reinforcement
    Reinforcement
  • 71
    390909100 Rivet
    Rivet
  • 72
    417300448 Belt Guard Bracket
    Belt Guard Bracket
  • 73
    250000742 Torx Truss Screw M5 x 14
    Torx Truss Screw M5 x 14
  • 74
    114045200 Hair Pin
    Hair Pin
