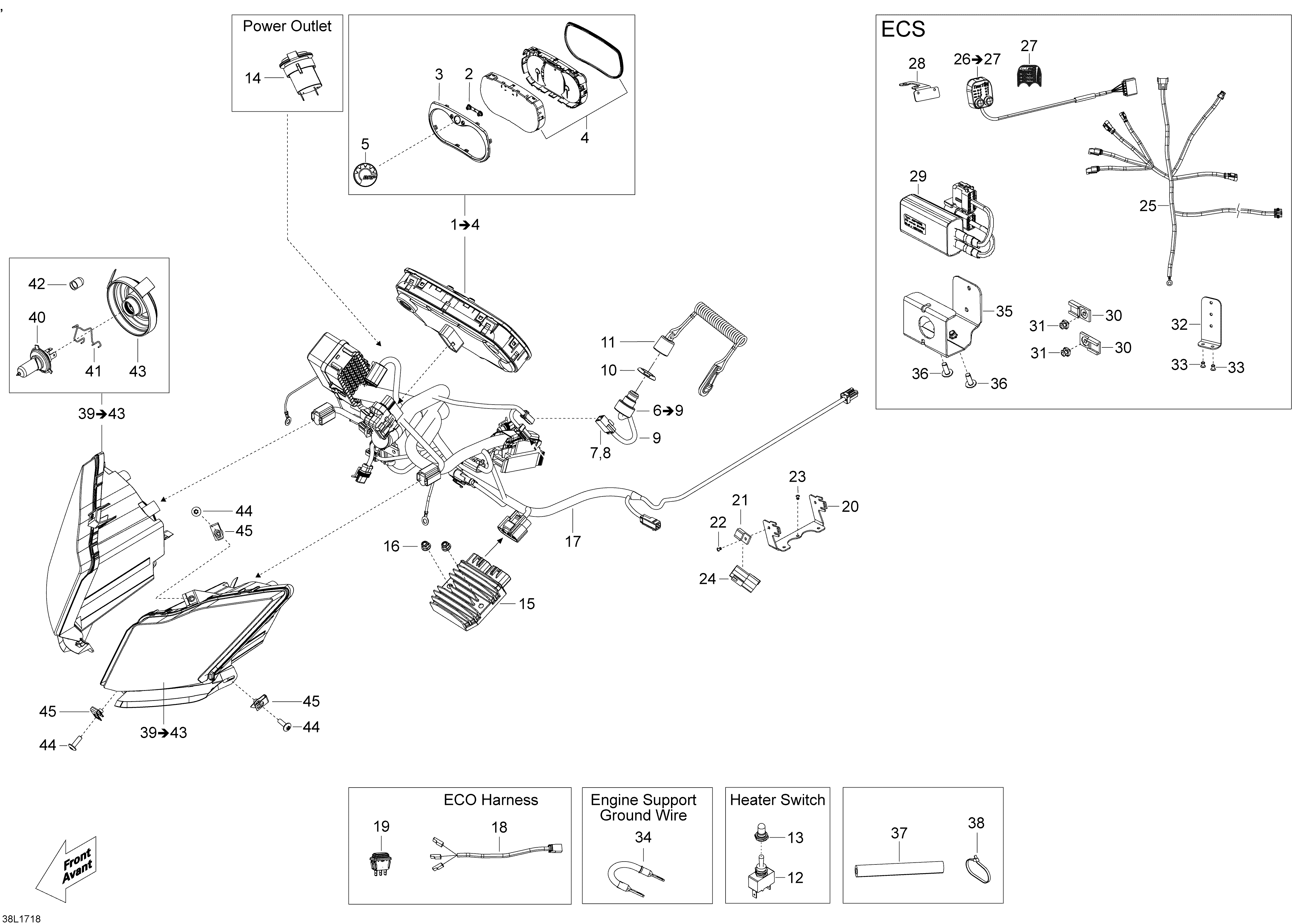

10- Electrical System для BRP Lynx Commander Grand Tourer, 2017 - 2017

  • №
    Артикул
    Название
  • 1
    515177913 Speedometer Ass'y. Includes 1 To 4
    Speedometer Ass'y. Includes 1 To 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129370 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens And Seal
    Lens And Seal
  • 5
    516006224 BRP Logo
    BRP Logo
  • 6
    515178225 Dess Switch. Includes 6 To 9
    Dess Switch. Includes 6 To 9
  • 7
    515175232 Male Terminal
    Male Terminal
  • 8
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 9
    409902000 Tubing
    Tubing
  • 10
    278002963 Safety Switch Nut
    Safety Switch Nut
  • 11
    515178146 DESS Cap. 900 ACE
    DESS Cap. 900 ACE
  • 11
    515178044 DESS Cap. 1200 4-TEC
    DESS Cap. 1200 4-TEC
  • 11
    515178046 DESS Cap (Learning Key)
    DESS Cap (Learning Key)
  • 12
    410110700 Heater Switch. Model-ECS
    Heater Switch. Model-ECS
  • 13
    515175281 Switch Cover. Model-ECS
    Switch Cover. Model-ECS
  • 14
    710001248 DC Power Outlet
    DC Power Outlet
  • 15
    515177325 Regulator
    Regulator
  • 16
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 17
    515178126 Main Harness. 900 ACE
    Main Harness. 900 ACE
  • 17
    515178124 Main Harness. 1200 4-TEC
    Main Harness. 1200 4-TEC
  • 18
    515177568 ECO Harness
    ECO Harness
  • 19
    515177569 ECO Rocker Switch
    ECO Rocker Switch
  • 20
    515177073 Fusebox Support
    Fusebox Support
  • 21
    270000141 Clip
    Clip
  • 22
    293150037 Rivet
    Rivet
  • 23
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 24
    710003006 Housing
    Housing
  • 25
    515177976 ECS Harness. Model-ECS
    ECS Harness. Model-ECS
  • 26
    515177777 Control Box Ass'y. Includes 26 To 27, Model-ECS
    Control Box Ass'y. Includes 26 To 27, Model-ECS
  • 27
    515177778 Control Box Decal. Model-ECS
    Control Box Decal. Model-ECS
  • 28
    515178101 Control Box Fastener. Model-ECS
    Control Box Fastener. Model-ECS
  • 29
    515177780 Control Box TCU-4. Model-ECS
    Control Box TCU-4. Model-ECS
  • 30
    270000141 Clip. Model-ECS
    Clip. Model-ECS
  • 31
    293150037 Rivet. Model-ECS
    Rivet. Model-ECS
  • 32
    515177944 Wire Support Plate. Model-ECS
    Wire Support Plate. Model-ECS
  • 33
    390909200 Rivet. Model-ECS
    Rivet. Model-ECS
  • 34
    515176883 Ground Cable
    Ground Cable
  • 35
    503194753 Support. Model-ECS
    Support. Model-ECS
  • 36
    250000721 Torx Truss Screw M6 x 16. Model-ECS
    Torx Truss Screw M6 x 16. Model-ECS
  • 37
    39066 Aluminum Coated Tube (150mm)
    Aluminum Coated Tube (150mm)
  • 38
    414115200 Tie Rap 180mm
    Tie Rap 180mm
  • 38
    293750001 Tie-Rap 94mm
    Tie-Rap 94mm
  • 38
    293750002 Tie-Rap 130mm
    Tie-Rap 130mm
  • 39
    517304194 RH Headlamp. Includes 39 To 43
    RH Headlamp. Includes 39 To 43
  • 39
    517304195 LH Headlamp. Includes 39 To 43
    LH Headlamp. Includes 39 To 43
  • 40
    515176274 H4 Halogen Bulb (60/55W, 12V)
    H4 Halogen Bulb (60/55W, 12V)
  • 42
    515176498 Cap
    Cap
  • 43
    515176499 Cover
    Cover
  • 44
    250000722 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 45
    250100113 Panel Nut M6
    Panel Nut M6
