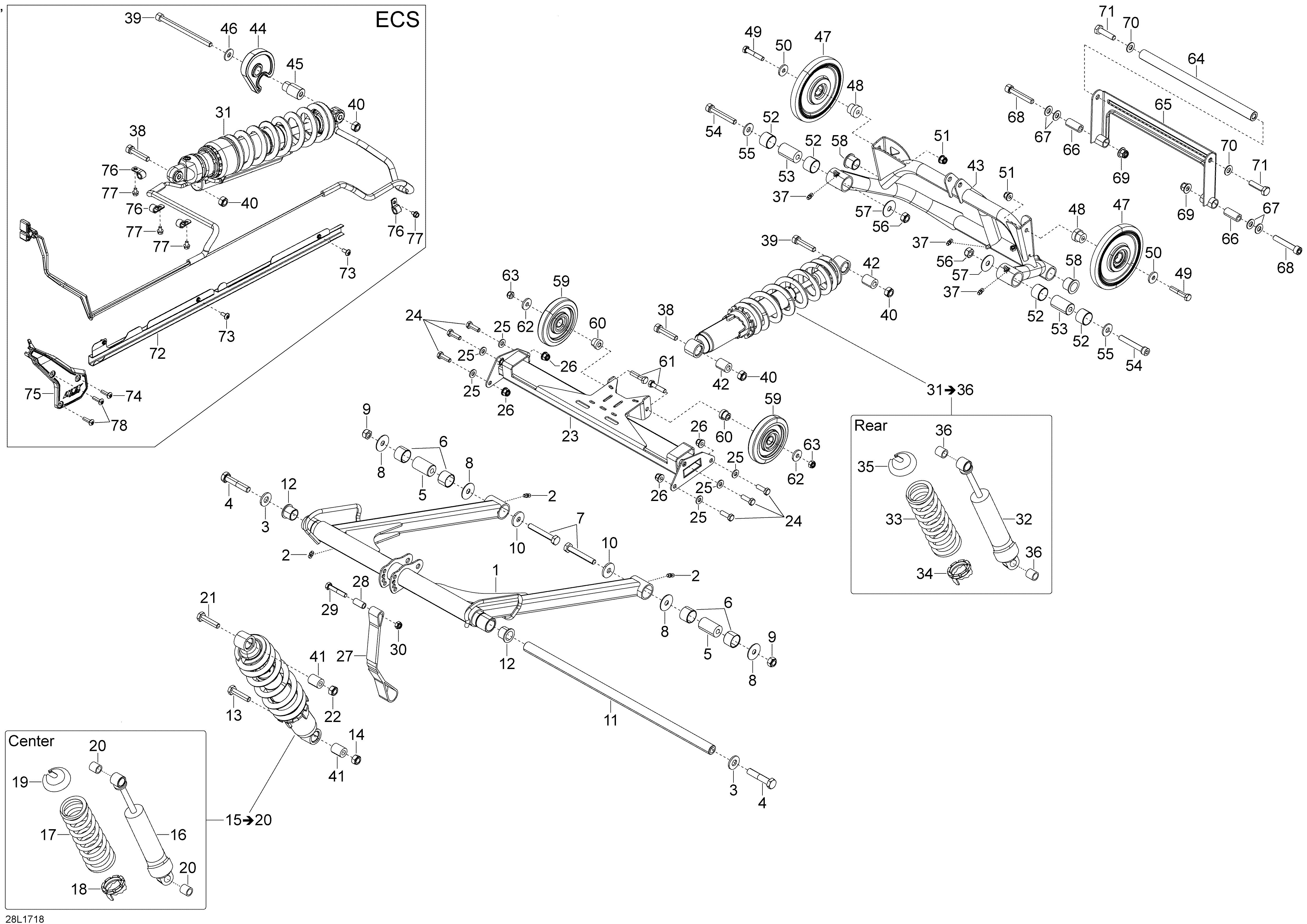

08- Rear Suspension для BRP Lynx Commander Grand Tourer, 2017 - 2017

  • №
    Артикул
    Название
  • 1
    503193092 Front Arm
    Front Arm
  • 2
    408200700 Grease Fitting
    Grease Fitting
  • 3
    250200131 Washer Spring Conical M12
    Washer Spring Conical M12
  • 4
    250000555 Hex. Cap Screw M12 x 60
    Hex. Cap Screw M12 x 60
  • 5
    605354157 Shaft
    Shaft
  • 6
    503193700 Bushing
    Bushing
  • 7
    207007044 Hex. Cap Screw M10 x 70
    Hex. Cap Screw M10 x 70
  • 8
    605355801 Washer
    Washer
  • 9
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 10
    503183300 Washer
    Washer
  • 11
    5347719 Upper Shaft
    Upper Shaft
  • 12
    31024 Cushion
    Cushion
  • 13
    250000549 Hex. Cap Screw M10 x 45
    Hex. Cap Screw M10 x 45
  • 14
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 16
    503193517 Shock. Model-std
    Shock. Model-std
  • 16
    503193521 Shock. Model-ECS
    Shock. Model-ECS
  • 17
    503192788 Spring (237mm - 70N/mm). Model-std
    Spring (237mm - 70N/mm). Model-std
  • 17
    503193279 Spring (255mm - 30N/mm). Model-ECS
    Spring (255mm - 30N/mm). Model-ECS
  • 18
    230078 Spring Seat
    Spring Seat
  • 19
    230076 Spring Seat
    Spring Seat
  • 20
    31094 Glide Bearing
    Glide Bearing
  • 21
    207004544 Hex. Cap Screw M10 x 45
    Hex. Cap Screw M10 x 45
  • 22
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 23
    503192344 Middle Beam. Model-std
    Middle Beam. Model-std
  • 23
    503194092 Middle Beam. Model-ECS
    Middle Beam. Model-ECS
  • 24
    250000556 Hex. Cap Screw M8 x 25
    Hex. Cap Screw M8 x 25
  • 25
    503192494 Washer
    Washer
  • 26
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 27
    503193780 Limiter Strap. Model-std
    Limiter Strap. Model-std
  • 27
    605355116 Limiter Strap. Model-ECS
    Limiter Strap. Model-ECS
  • 28
    605455335 Sleeve
    Sleeve
  • 29
    207084544 Hex. Cap Screw M8 x 45
    Hex. Cap Screw M8 x 45
  • 30
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 31
    503194194 Rear Shock Ass'y. Model-ECS
    Rear Shock Ass'y. Model-ECS
  • 32
    503193859 Shock
    Shock
  • 33
    605625009 Spring (280mm - 65N/mm)
    Spring (280mm - 65N/mm)
  • 34
    230078 Spring Seat
    Spring Seat
  • 35
    230076 Spring Seat
    Spring Seat
  • 36
    31094 Glide Bearing
    Glide Bearing
  • 37
    408200700 Grease Fitting
    Grease Fitting
  • 38
    205004544 Socket Screw
    Socket Screw
  • 39
    205004544 Socket Screw. Model-std
    Socket Screw. Model-std
  • 39
    231080044 Socket HD Screw M10 x 100. Model-ECS
    Socket HD Screw M10 x 100. Model-ECS
  • 40
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 41
    5446652 Bushing
    Bushing
  • 42
    5446652 Bushing. Model-std
    Bushing. Model-std
  • 43
    503194584 Rear Arm. Model-std
    Rear Arm. Model-std
  • 43
    503194585 Rear Arm. Model-ECS
    Rear Arm. Model-ECS
  • 44
    503194181 Track Support. Model-ECS
    Track Support. Model-ECS
  • 45
    503194203 Sleeve. Model-ECS
    Sleeve. Model-ECS
  • 46
    503191926 Washer. Model-ECS
    Washer. Model-ECS
  • 47
    503193852 Idler Wheel 133mm
    Idler Wheel 133mm
  • 48
    605454461 Sleeve
    Sleeve
  • 49
    207084544 Hex. Cap Screw M8 x 45
    Hex. Cap Screw M8 x 45
  • 50
    20077 Washer
    Washer
  • 51
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 52
    503193700 Bushing
    Bushing
  • 53
    605354157 Shaft
    Shaft
  • 54
    250000560 Socket HD Screw M10 x 65
    Socket HD Screw M10 x 65
  • 55
    503191926 Washer
    Washer
  • 56
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 57
    605355801 Washer
    Washer
  • 58
    31024 Cushion
    Cushion
  • 59
    572043500 Idler Wheel
    Idler Wheel
  • 60
    503193330 Sleeve
    Sleeve
  • 61
    207083544 Hex. Cap Screw M8 x 35
    Hex. Cap Screw M8 x 35
  • 62
    20077 Washer
    Washer
  • 63
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 64
    503192397 Shaft
    Shaft
  • 65
    503192346 Rear Swing
    Rear Swing
  • 66
    503192341 Rear Swing Shaft
    Rear Swing Shaft
  • 67
    234001410 Washer Flat M10
    Washer Flat M10
  • 68
    205006044 Socket HD Screw M10 x 60
    Socket HD Screw M10 x 60
  • 69
    233201414 Elastic Flange Nut M10
    Elastic Flange Nut M10
  • 70
    234001410 Flat Washer M10
    Flat Washer M10
  • 71
    207204044 Hex. Cap Screw M10 x 45
    Hex. Cap Screw M10 x 45
  • 72
    503194001 Cable Cover. Model-ECS
    Cable Cover. Model-ECS
  • 73
    250000721 Trorx Truss Screw M6 x 16. Model-ECS
    Trorx Truss Screw M6 x 16. Model-ECS
  • 74
    250000807 Torx Truss Screw M6 x 25. Model-ECS
    Torx Truss Screw M6 x 25. Model-ECS
  • 75
    503194033 Cable Cover. Model-ECS
    Cable Cover. Model-ECS
  • 76
    518321570 Open Clamp. Model-ECS
    Open Clamp. Model-ECS
  • 77
    210261040 Hex. Flange Screw M6 x 10. Model-ECS
    Hex. Flange Screw M6 x 10. Model-ECS
  • 78
    250000807 Torx Truss Screw M6 x 25. Model-ECS
    Torx Truss Screw M6 x 25. Model-ECS
