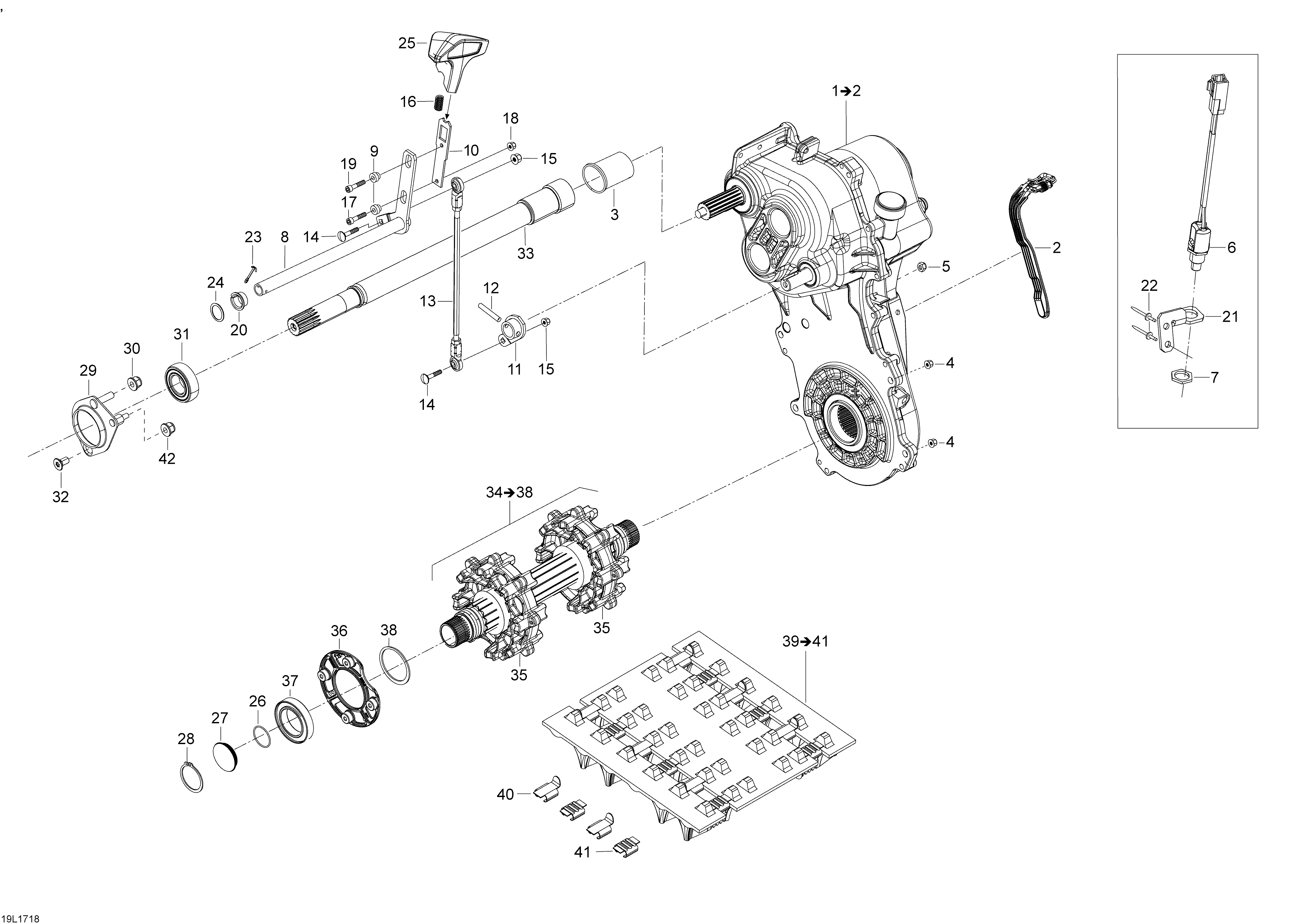

05- Drive System для BRP Lynx Commander Grand Tourer, 2017 - 2017

  • №
    Артикул
    Название
  • 1
    504153513 Transmission Ass'y (Fast Ratio). Includes 1 To 2
    Transmission Ass'y (Fast Ratio). Includes 1 To 2
  • 2
    504152896 Sensor
    Sensor
  • 3
    504153054 Protective Rubber
    Protective Rubber
  • 4
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 5
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 6
    515176472 Switch
    Switch
  • 7
    250000373 Nut
    Nut
  • 8
    504153288 Shifter
    Shifter
  • 9
    504152787 Sleeve
    Sleeve
  • 10
    504153287 Shifter Arm
    Shifter Arm
  • 11
    504153280 Lever
    Lever
  • 12
    41012 Spring Pin 6 x 30
    Spring Pin 6 x 30
  • 13
    504153258 Shifter Rod
    Shifter Rod
  • 14
    250000677 Bolt Carriage M6 x 20
    Bolt Carriage M6 x 20
  • 15
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 16
    504152882 Spring
    Spring
  • 17
    205052544 Socket Head Screw M5 x 25
    Socket Head Screw M5 x 25
  • 18
    233251434 Nut M5
    Nut M5
  • 19
    250000676 Forming Screw M5 x 16
    Forming Screw M5 x 16
  • 20
    504152890 Bushing
    Bushing
  • 21
    504152902 Sensor Bracket
    Sensor Bracket
  • 22
    293150163 Rivet
    Rivet
  • 23
    250400035 Cotter Pin
    Cotter Pin
  • 24
    503189273 Washer
    Washer
  • 25
    504152837 Shifter Handle
    Shifter Handle
  • 26
    293300122 O-Ring
    O-Ring
  • 27
    504152619 Magnetic Cap
    Magnetic Cap
  • 28
    504152572 Circlip
    Circlip
  • 29
    504153187 Bearing Housing
    Bearing Housing
  • 30
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 31
    293350074 Ball Bearing
    Ball Bearing
  • 32
    235381646 Torx Screw M8 x 16
    Torx Screw M8 x 16
  • 33
    504152963 Counter Shaft. Model-900 ACE
    Counter Shaft. Model-900 ACE
  • 33
    504153292 Counter Shaft. Model-1200 4-TEC
    Counter Shaft. Model-1200 4-TEC
  • 34
    504153210 Drive Axle Ass'y. Includes 34 To 38
    Drive Axle Ass'y. Includes 34 To 38
  • 36
    504153426 Retaining Ring
    Retaining Ring
  • 37
    293350059 Ball Bearing
    Ball Bearing
  • 38
    504153207 Shim
    Shim
  • 39
    504153036 Track Ass'y (500 x 3923 x 32, Studded). Includes 39 To 41, Model-Comfort
    Track Ass'y (500 x 3923 x 32, Studded). Includes 39 To 41, Model-Comfort
  • 39
    605613004 Track Ass'y (500 x 3923 x 38). Includes 39 To 41, Model-STD
    Track Ass'y (500 x 3923 x 38). Includes 39 To 41, Model-STD
  • 42
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
