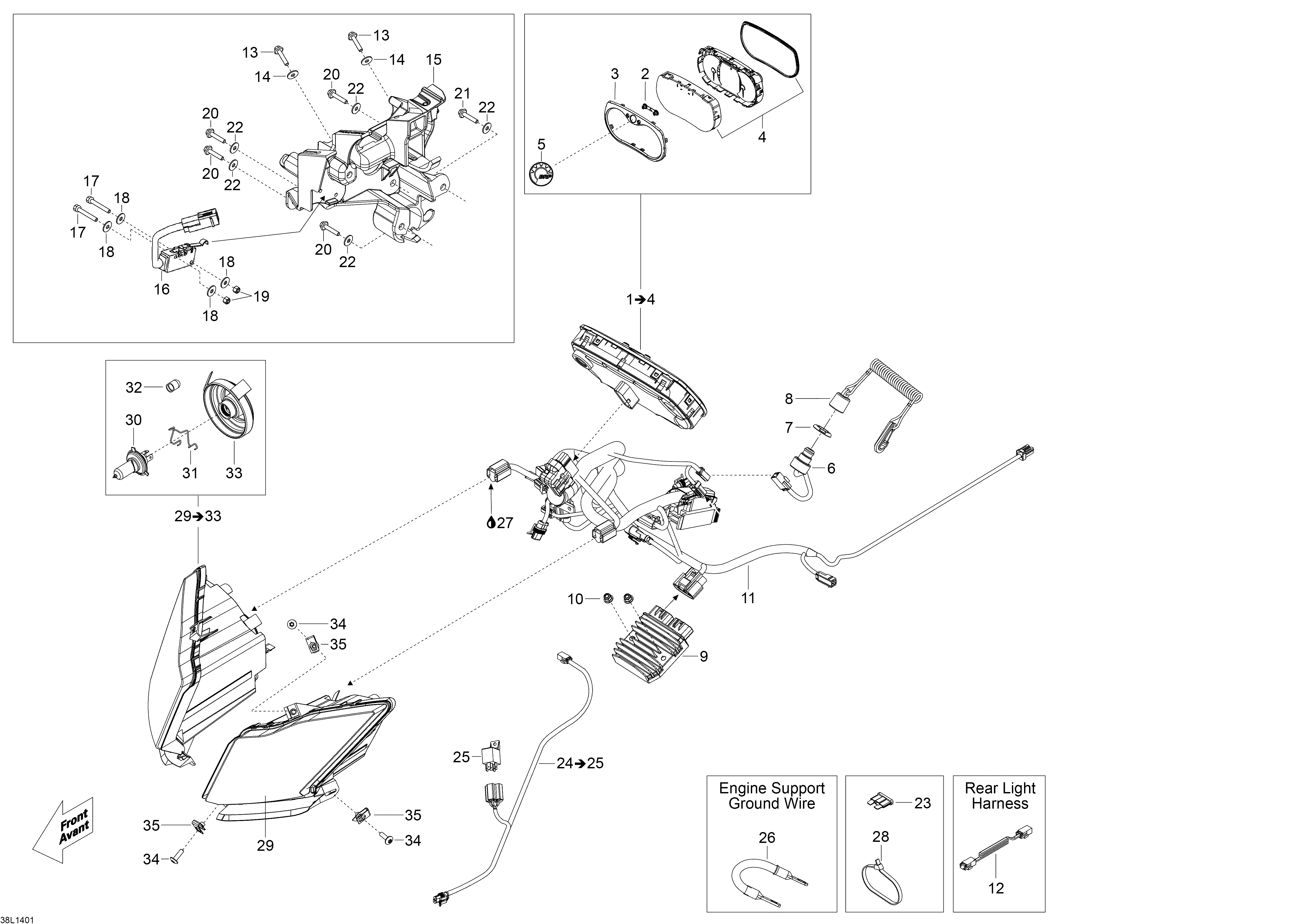

10- Electrical System для BRP Lynx Adventure LX 600 ACE - 2014

  • №
    Артикул
    Название
  • 1
    515177121 Speedometer. Includes 1 To 4
    Speedometer. Includes 1 To 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129370 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens
    Lens
  • 5
    219902677 BRP Logo
    BRP Logo
  • 6
    515177249 Dess Switch
    Dess Switch
  • 7
    278002963 Safety Switch Nut
    Safety Switch Nut
  • 8
    515177057 Dess Cap
    Dess Cap
  • 9
    710001103 Voltage Regulator
    Voltage Regulator
  • 10
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 11
    515177126 Main Harness
    Main Harness
  • 12
    515177032 Rear Light Harness
    Rear Light Harness
  • 13
    211000023 Hex. Screw 10-14 x 7/8
    Hex. Screw 10-14 x 7/8
  • 14
    234062600 Flat Washer M6
    Flat Washer M6
  • 15
    515176866 Plate
    Plate
  • 16
    515176881 Switch Ass'y
    Switch Ass'y
  • 17
    207132044 Hex. Screw M3 x 20
    Hex. Screw M3 x 20
  • 18
    234032600 Flat Washer M3, Stainless
    Flat Washer M3, Stainless
  • 19
    232531423 Elastic Stop Nut M3
    Elastic Stop Nut M3
  • 20
    210262040 Hex. Flanged Screw M6 x 20
    Hex. Flanged Screw M6 x 20
  • 21
    210262580 Hex. Flanged Forming Screw M6 x 25
    Hex. Flanged Forming Screw M6 x 25
  • 22
    250200039 Flat Washer
    Flat Washer
  • 23
    710000742 Little Fuse, 5 A
    Little Fuse, 5 A
  • 23
    710000744 Little Fuse, 10 A
    Little Fuse, 10 A
  • 23
    710000745 Little Fuse, 15 A
    Little Fuse, 15 A
  • 23
    710000746 Little Fuse, 20 A
    Little Fuse, 20 A
  • 23
    710000747 Little Fuse, 30 A
    Little Fuse, 30 A
  • 24
    515177105 Radiator Fan Harness. Includes 24 To 25
    Radiator Fan Harness. Includes 24 To 25
  • 25
    410113200 Relay
    Relay
  • 26
    515177014 Ground Wire
    Ground Wire
  • 27
    619600021 Loctite 8104 (Dielectric Grease), 75 ml
    Loctite 8104 (Dielectric Grease), 75 ml
  • 28
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 28
    293750002 Tie Rap 142 mm
    Tie Rap 142 mm
  • 28
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 28
    605627000 Tie Rap
    Tie Rap
  • 29
    517304194 Headlamp Ass'y RH. Includes 29 To 33
    Headlamp Ass'y RH. Includes 29 To 33
  • 29
    517304195 Headlamp Ass'y LH. Includes 29 To 33
    Headlamp Ass'y LH. Includes 29 To 33
  • 30
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 32
    515176498 Cap
    Cap
  • 33
    515176499 Cover
    Cover
  • 34
    250000128 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 35
    250100113 Panel Nut M6
    Panel Nut M6
