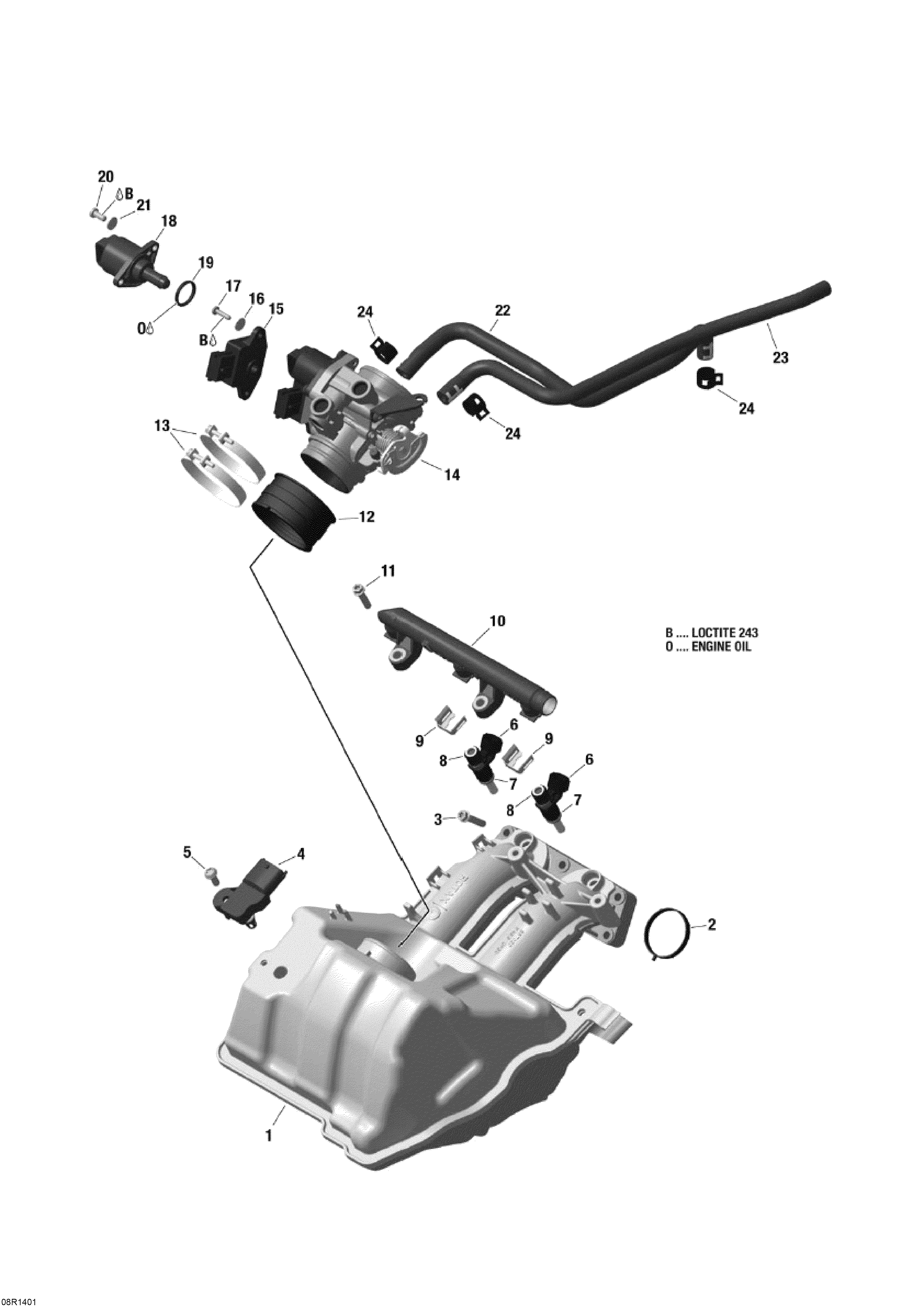

02- Air Intake Manifold And Throttle Body для BRP Lynx Adventure LX 600 ACE - 2014

  • №
    Артикул
    Название
  • 1
    420867020 Airbox Ass'y. Includes 1 To 2
    Airbox Ass'y. Includes 1 To 2
  • 2
    420431660 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
    Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
  • 4
    707000995 Pressure/Temp Sensor
    Pressure/Temp Sensor
  • 5
    420641583 Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%
    Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%
  • 6
    420874838 Injection Valve Deka VII Type 0. Includes 6 To 8
    Injection Valve Deka VII Type 0. Includes 6 To 8
  • 7
    420431890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 8
    420631220 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 9
    420853030 Injector Clip
    Injector Clip
  • 10
    420874960 Fuel Rail
    Fuel Rail
  • 11
    420440234 Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm +/- 12%
    Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm +/- 12%
  • 12
    420460495 Connecting Socket
    Connecting Socket
  • 13
    420251480 Hose Clamp. Tightening Torque 0,7 Nm +/- 12%
    Hose Clamp. Tightening Torque 0,7 Nm +/- 12%
  • 14
    420296879 Throttle Body Ass'y. Includes 14 To 21
    Throttle Body Ass'y. Includes 14 To 21
  • 18
    420665940 Idle Air Control Valve
    Idle Air Control Valve
  • 19
    420631780 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 20
    420440911 Binding Head Screw M5 x 16. Tightening Torque 4,5 Nm +/- 12%
    Binding Head Screw M5 x 16. Tightening Torque 4,5 Nm +/- 12%
  • 21
    420845710 Snap Ring
    Snap Ring
  • 22
    420460910 Molded Hose
    Molded Hose
  • 23
    420460915 Molded Hose
    Molded Hose
  • 24
    420853511 Spring Type Clamp
    Spring Type Clamp
  • B
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
