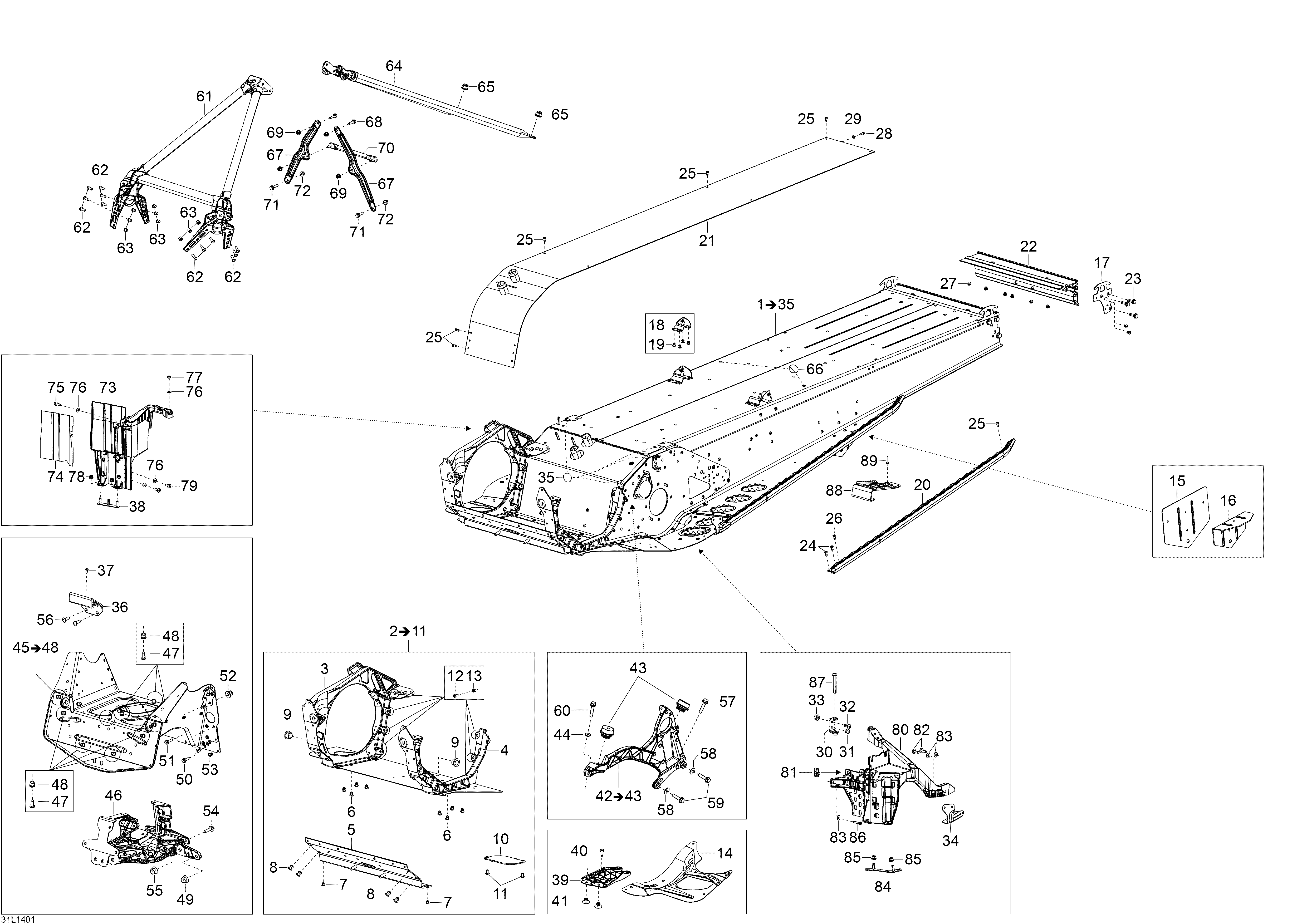

09- Frame для BRP Lynx Adventure LX 600 ACE - 2014

-
№АртикулНазвание
-
1518327079 Frame Ass?y. Includes 1 To 35Frame Ass?y. Includes 1 To 35
-
2518326507 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326328 Member RHMember RH
-
4518326330 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10518326757 Oil PlateOil Plate
-
11250000325 Torx-Truss M6 x 12Torx-Truss M6 x 12
-
12207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
13233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
14518324874 Reinforcement RHReinforcement RH
-
14518324875 Reinforcement LHReinforcement LH
-
15518327086 Rear Arm SupportRear Arm Support
-
16518327087 Angle SupportAngle Support
-
17518326637 Rear Side PlateRear Side Plate
-
18518326421 Rear Base RHRear Base RH
-
18518326443 Rear Base LHRear Base LH
-
19293150119 RivetRivet
-
20518327068 Roller LHRoller LH
-
20518327069 Roller RHRoller RH
-
21509000701 RadiatorRadiator
-
22518326379 Rear CapRear Cap
-
23207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
24390402300 Pop Rivet 3/16Pop Rivet 3/16
-
25390909200 RivetRivet
-
26390909100 RivetRivet
-
27293150174 RivetRivet
-
28205061244 Socket HD. Screw M6 x 12Socket HD. Screw M6 x 12
-
30518326961 AttachAttach
-
31293150147 RivetRivet
-
32250000534 Torx Screw M6 x 16Torx Screw M6 x 16
-
33233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
34518326960 SupportSupport
-
35518325560 Adhesive PatchAdhesive Patch
-
36518326178 Engine SupportEngine Support
-
37293150174 RivetRivet
-
38518326550 AttachAttach
-
39518325782 Deflector RHDeflector RH
-
39518325783 Deflector LHDeflector LH
-
40207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
41293150104 Pop Rivet 3/16Pop Rivet 3/16
-
42518327535 Brace. Includes 42 To 43Brace. Includes 42 To 43
-
43512060295 Rubber MountRubber Mount
-
44234281474 Spring WasherSpring Washer
-
45518327553 Cross Member. Includes 45 To 48Cross Member. Includes 45 To 48
-
46518327475 SupportSupport
-
47207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
50210262080 Hex. Forming Screw M6 x 20Hex. Forming Screw M6 x 20
-
51207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
52233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
53293150179 RivetRivet
-
54207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
55233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
56207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
57207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
58234281474 Spring WasherSpring Washer
-
59205083544 Socket HD. Screw M8 x 35Socket HD. Screw M8 x 35
-
60207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
61518326970 Front MemberFront Member
-
62207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
63233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
64518326685 Rear MemberRear Member
-
65233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
66518325560 Adhesive PatchAdhesive Patch
-
67518326848 Upper ColumnUpper Column
-
68207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
69233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
70518326355 Upper ColumnUpper Column
-
71207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
72233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
73518326472 Battery SupportBattery Support
-
74514054755 Reflect FoilReflect Foil
-
75210262040 Hex. HD. Forming Screw M6 x 20Hex. HD. Forming Screw M6 x 20
-
76250200039 Flat WasherFlat Washer
-
77232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
78233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
79250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
80518326820 StirrupStirrup
-
81250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
82250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
83250200039 Flat WasherFlat Washer
-
84518326986 AttachAttach
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86207162544 Hex. Cap Screw M6 x 25Hex. Cap Screw M6 x 25
-
87250000535 Torx Truss M8 x 55Torx Truss M8 x 55
-
88520000492 FootrestFootrest
-
89390402200 Pop Rivet 3/16Pop Rivet 3/16
