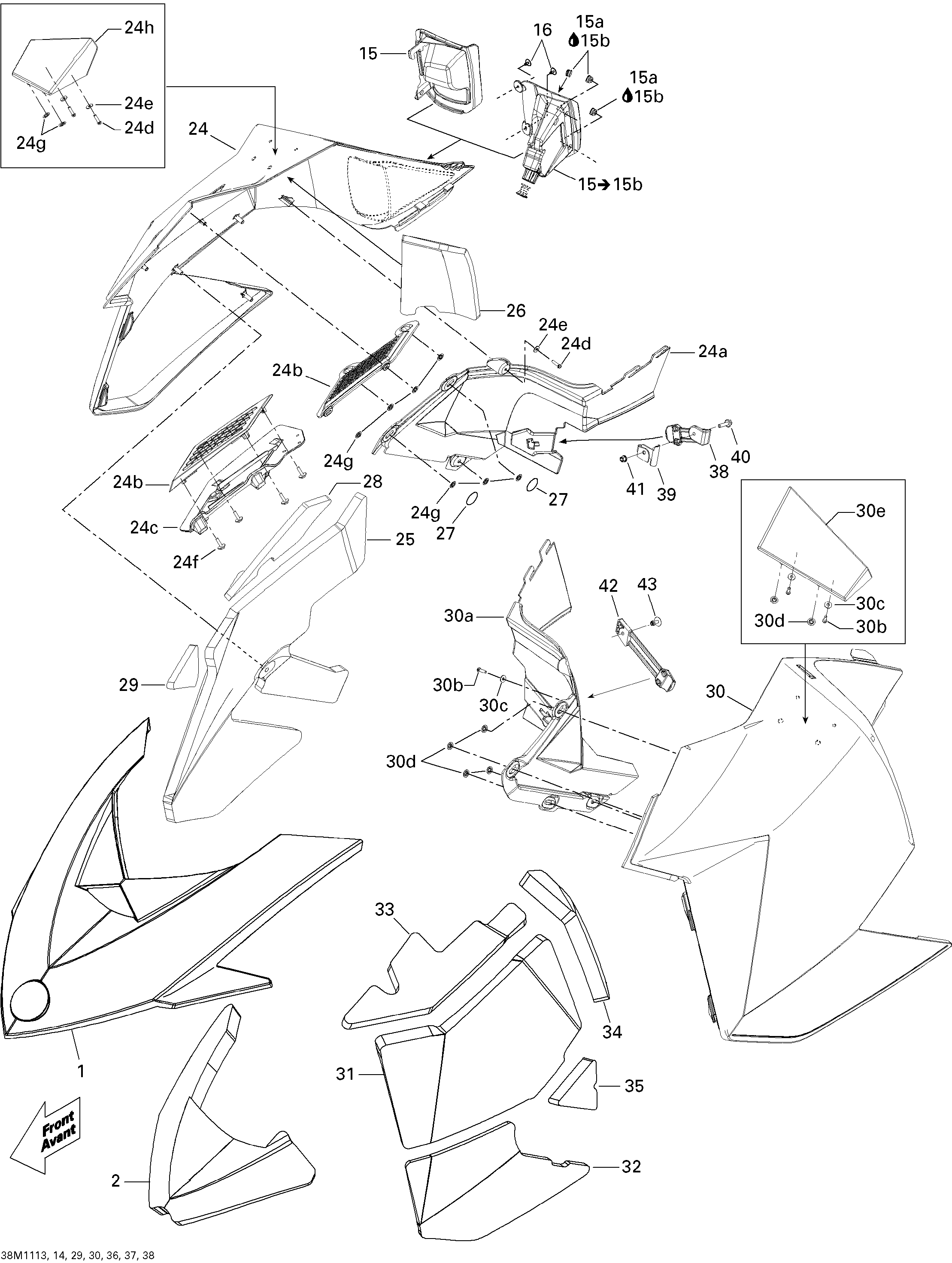

09- Hood для BRP Lynx Adventure LX 600 ACE - 2011

  • №
    Артикул
    Название
  • 1
    517304589 Hood
    Hood
  • 2
    517304881 Hood Foam
    Hood Foam
  • 15
    517304500 RH Console
    RH Console
  • 24
    517304029 RH Panel, Deep Black
    RH Panel, Deep Black
  • 24a
    517303671 RH Moulding Panel, Deep Black
    RH Moulding Panel, Deep Black
  • 24b
    517304763 External Grill
    External Grill
  • 24c
    517304764 Internal Grill
    Internal Grill
  • 24d
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 24e
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 24f
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 24g
    732610072 Push Nut
    Push Nut
  • 25
    517304883 RH Center Foam
    RH Center Foam
  • 26
    517304884 RH Panel Rear Foam
    RH Panel Rear Foam
  • 27
    518325560 Adhesive Patch
    Adhesive Patch
  • 30
    517304030 LH Panel, Deep Black
    LH Panel, Deep Black
  • 30a
    517303673 LH Moulding Panel, Deep Black
    LH Moulding Panel, Deep Black
  • 30b
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 30c
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 30d
    732610072 Push Nut
    Push Nut
  • 31
    517304887 LH Panel Center Foam
    LH Panel Center Foam
  • 32
    517304888 LH Panel Lower Foam
    LH Panel Lower Foam
  • 33
    517304889 LH Panel Upper Foam
    LH Panel Upper Foam
  • 34
    517304890 LH Panel Rear Foam
    LH Panel Rear Foam
  • 35
    517304891 Foam
    Foam
  • 38
    517304551 Panel Latch
    Panel Latch
  • 42
    517303808 Panel Latch
    Panel Latch
  • 43
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
