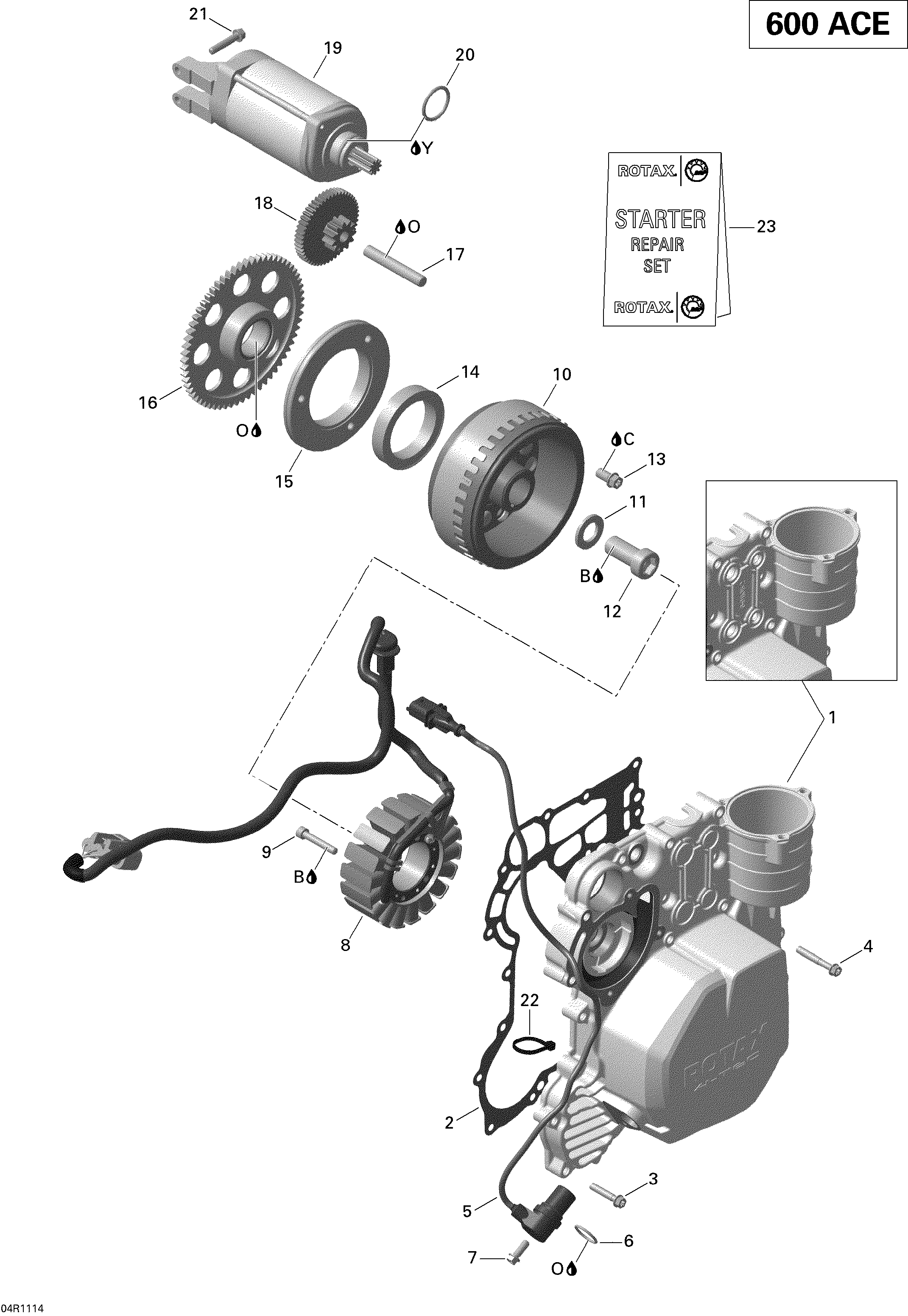

03- Magneto And Electric Starter Adventure для BRP Lynx Adventure LX 600 ACE - 2011

  • №
    Артикул
    Название
  • 1
    420911052 Cover
    Cover
  • 2
    420431640 Gasket
    Gasket
  • 3
    420440647 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 5
    420966570 Crankshaft Position Sensor Ass'y. Includes 5 to 6
    Crankshaft Position Sensor Ass'y. Includes 5 to 6
  • 6
    420431580 O-Ring
    O-Ring
  • 7
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 8
    420296908 Stator Plate
    Stator Plate
  • 9
    420241956 Allen Screw M6 X 40
    Allen Screw M6 X 40
  • 10
    420685700 Magneto Flywheel
    Magneto Flywheel
  • 11
    420627270 Shim
    Shim
  • 12
    420241549 Socket Head Screw M16 X 35
    Socket Head Screw M16 X 35
  • 13
    420440854 Flanged Torx Screw M8 X 16
    Flanged Torx Screw M8 X 16
  • 14
    420659113 Sprag Clutch
    Sprag Clutch
  • 15
    420659261 Sprag Clutch Housing
    Sprag Clutch Housing
  • 16
    420434235 Free Wheel Gear, 64 Teeth
    Free Wheel Gear, 64 Teeth
  • 17
    420229475 Needle Pin
    Needle Pin
  • 18
    420634741 Double Gear
    Double Gear
  • 19
    420892423 Starter Ass'y. Includes 19 to 20
    Starter Ass'y. Includes 19 to 20
  • 20
    420250140 O-Ring
    O-Ring
  • 21
    420440647 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 22
    420866714 Tie Rap
    Tie Rap
  • 23
    420881140 Carbon Brush Set
    Carbon Brush Set
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • C
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • Y
    420297616 Klueber Paste, 46 MR 401, 60 g
    Klueber Paste, 46 MR 401, 60 g
