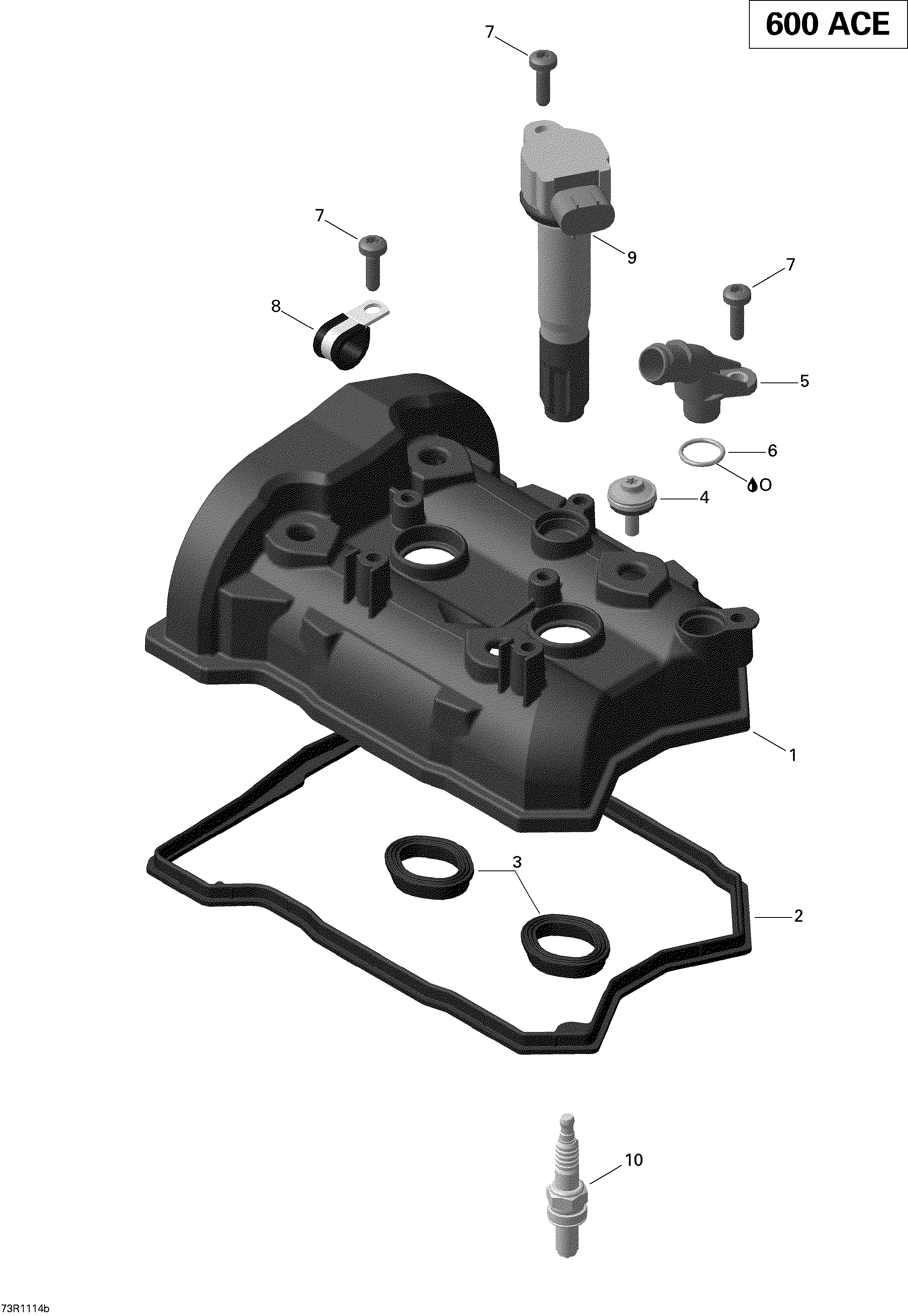

01- Valve Cover для BRP Lynx Adventure LX 600 ACE - 2011
-
№АртикулНазвание
-
1420911040 Valve CoverValve Cover
-
2420431620 GasketGasket
-
3420431750 GasketGasket
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420611240 ConnectorConnector
-
6420631260 O-RingO-Ring
-
7420441381 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420666140 Ignition CoilIgnition Coil
-
10415129599 Spark Plug, NGK CR7EBSpark Plug, NGK CR7EB
