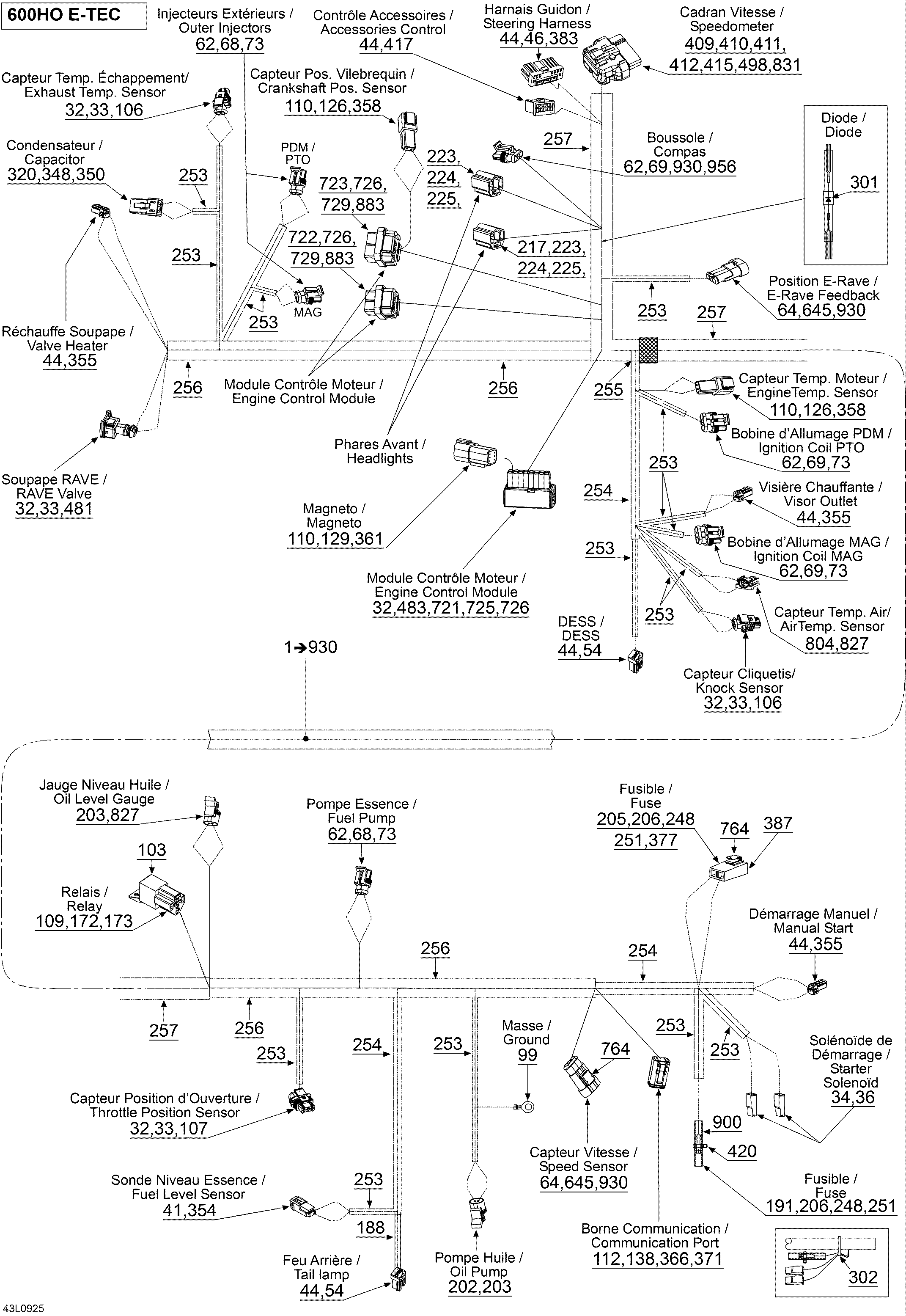

10- Electrical Harness для BRP Lynx Rave RE 600 E-TEC - 2009

  • №
    Артикул
    Название
  • 1
    515176602 Frame Harness. Includes 1 to 956
    Frame Harness. Includes 1 to 956
  • 32
    278000998 Female Terminal
    Female Terminal
  • 33
    278000999 Wire Seal
    Wire Seal
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 41
    515175232 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 62
    278001014 Female Terminal
    Female Terminal
  • 64
    710000568 Housing
    Housing
  • 68
    409209500 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 69
    409209600 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 73
    278001013 Wire Seal
    Wire Seal
  • 99
    278000992 Open Barrel
    Open Barrel
  • 103
    410113200 Relay
    Relay
  • 106
    278001005 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 107
    278000997 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 109
    409209900 Female Housing, 5 Circuits
    Female Housing, 5 Circuits
  • 110
    278000631 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 126
    409207500 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 129
    278000736 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 138
    293000052 Sealing Cap
    Sealing Cap
  • 172
    561503100 Female Terminal
    Female Terminal
  • 173
    561503100 Female Terminal
    Female Terminal
  • 188
    409902000 Tubing 12 mm
    Tubing 12 mm
  • 191
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 202
    278001114 Female Terminal
    Female Terminal
  • 203
    278001113 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 205
    409011600 Female Terminal
    Female Terminal
  • 206
    409004200 Female Terminal
    Female Terminal
  • 217
    409011500 Female Terminal
    Female Terminal
  • 223
    515175320 Female Terminal
    Female Terminal
  • 224
    515175321 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 248
    409004000 Fuse Holder
    Fuse Holder
  • 251
    409014200 Clip
    Clip
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 257
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 301
    409012700 Diode
    Diode
  • 302
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 320
    515175567 Female Terminal
    Female Terminal
  • 348
    278001673 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 350
    278001671 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 354
    515175654 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 358
    515175665 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 361
    515175668 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 364
    515175671 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 366
    515175673 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 371
    515175678 Male Wedge, 6 Circuits
    Male Wedge, 6 Circuits
  • 377
    278000344 Fuse, 5 Amperes
    Fuse, 5 Amperes
  • 383
    515175719 Female Terminal Housing, 11 Circuits
    Female Terminal Housing, 11 Circuits
  • 387
    293550004 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Housing, 24 Circuits
    Female Housing, 24 Circuits
  • 411
    515175802 Retainer Block
    Retainer Block
  • 412
    515175803 Wire Seal
    Wire Seal
  • 415
    515175806 Female Terminal
    Female Terminal
  • 417
    515175819 Female Terminal Housing, 8 Circuits
    Female Terminal Housing, 8 Circuits
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 481
    415128500 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 483
    415128499 Female Terminal
    Female Terminal
  • 498
    710000399 Female Housing
    Female Housing
  • 645
    515176164 Male Terminal
    Male Terminal
  • 721
    515176340 Female Terminal Housing, 16 Circuits
    Female Terminal Housing, 16 Circuits
  • 722
    515176341 Female Terminal Housing, 26 Circuits
    Female Terminal Housing, 26 Circuits
  • 723
    515176342 Female Terminal Housing, 34 Circuits
    Female Terminal Housing, 34 Circuits
  • 725
    515176344 Wire Seal
    Wire Seal
  • 726
    515176345 Plug
    Plug
  • 729
    515176348 Female Terminal
    Female Terminal
  • 764
    710000992 Clip
    Clip
  • 804
    515176523 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 827
    710001119 Female Terminal
    Female Terminal
  • 831
    710001131 Female Terminal
    Female Terminal
  • 883
    515176541 Female Terminal
    Female Terminal
  • 900
    415079200 Hose
    Hose
  • 930
    515176621 Wire Seal
    Wire Seal
  • 956
    278002307 Female Terminal
    Female Terminal
